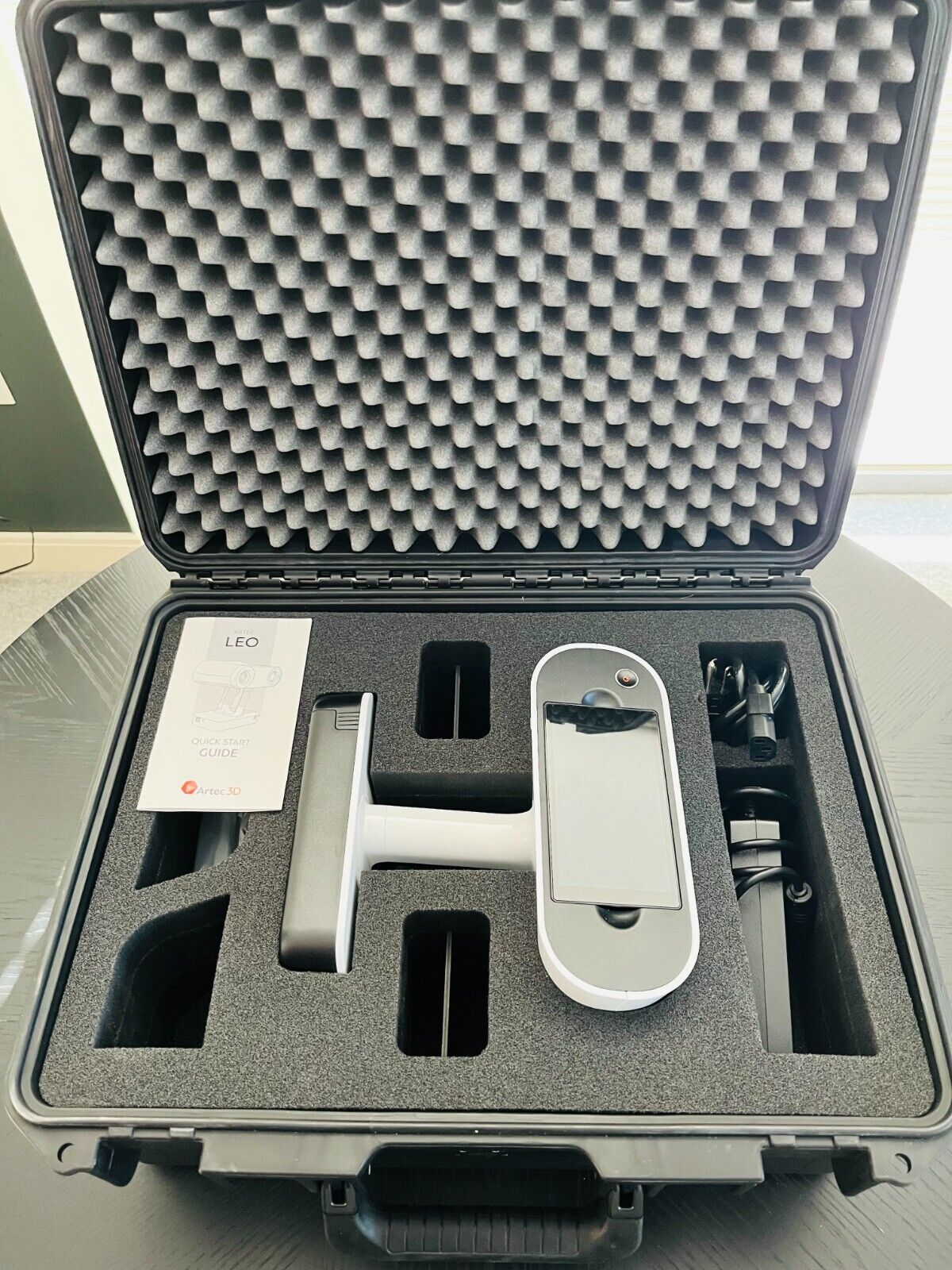

ARTEC LEO 3D SCANNER

ARTEC LEO 3D SCANNER

Technical specifications

Accuracy & resolution:

• 3D point accuracy: up to 0.1 mm
• 3D resolution: up to 0.2 mm
• 3D accuracy over distance: up to 0.1 mm + 0.3 mm/m

Algorithms:

• HD Mode
• Hybrid geometry and texture tracking
• Geometry and texture based data processing algorithms
• Auto background removal

Field of view:

• Working distance: 0.35 – 1.2 m
• Volume capture zone: 160,000 cm³
• Linear field of view, H×W @ closest range: 244 × 142 mm
• Linear field of view, H×W @ furthest range: 838 × 488 mm
• Angular field of view, H×W: 38.5 × 23°
