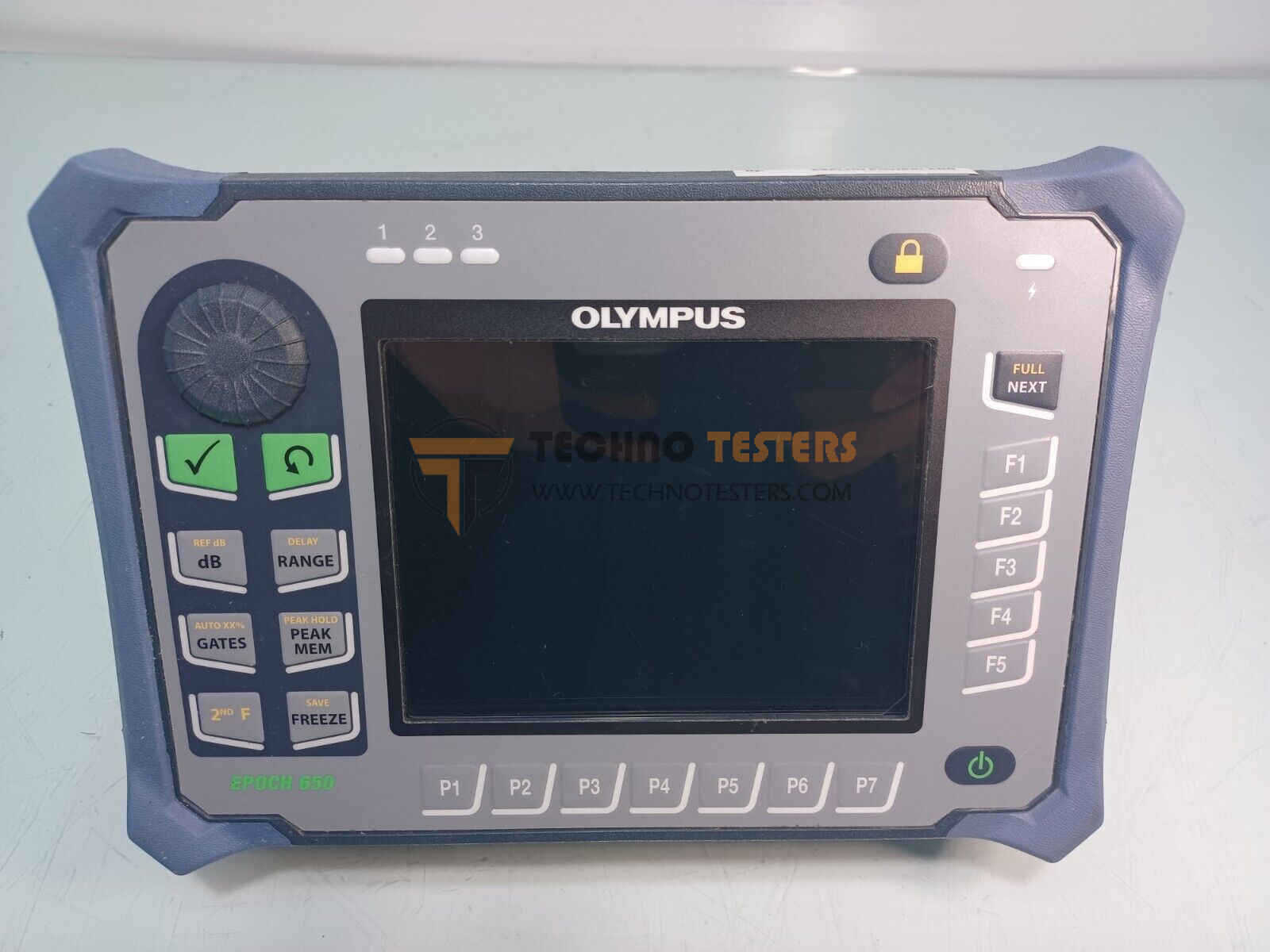

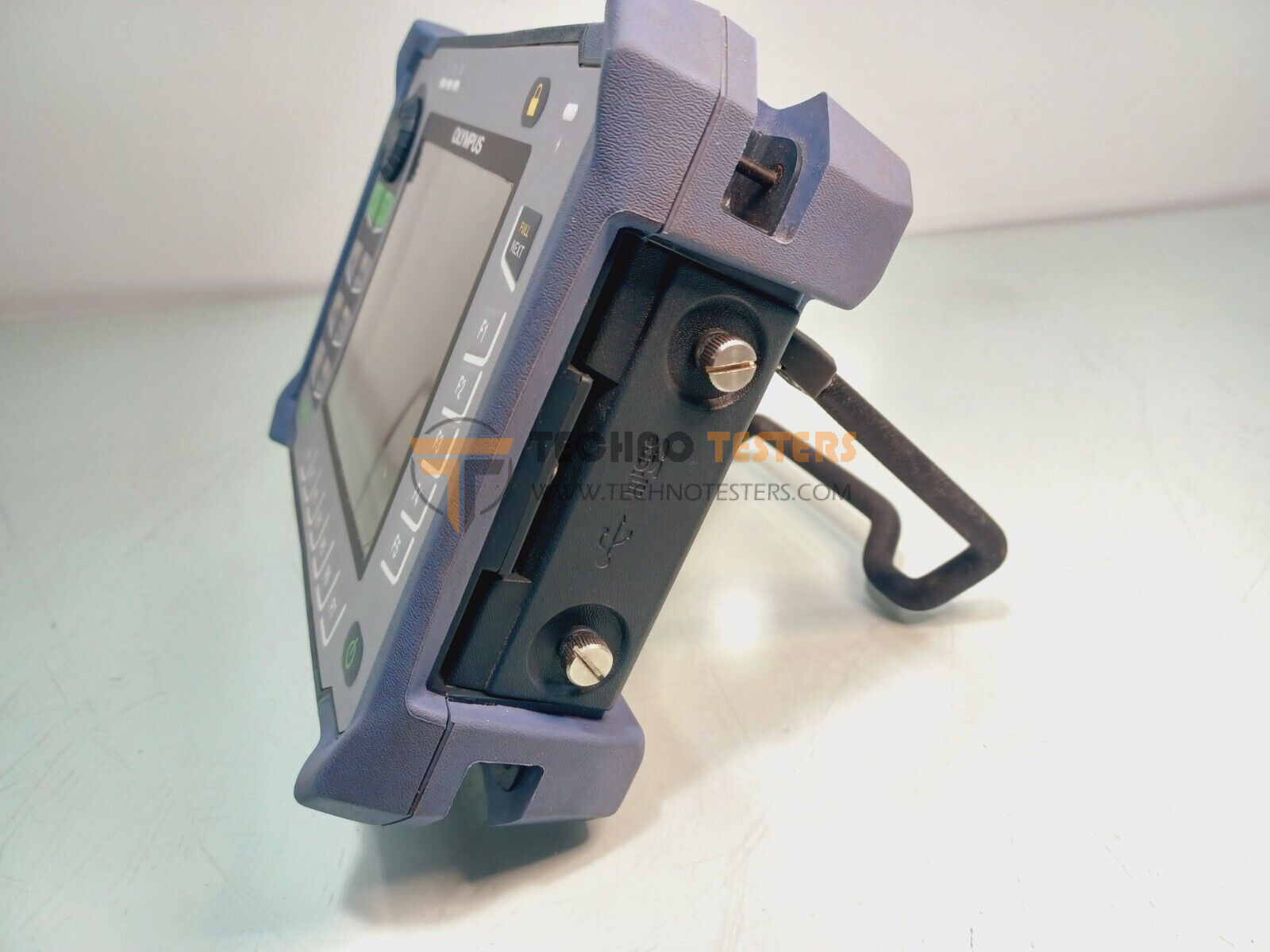

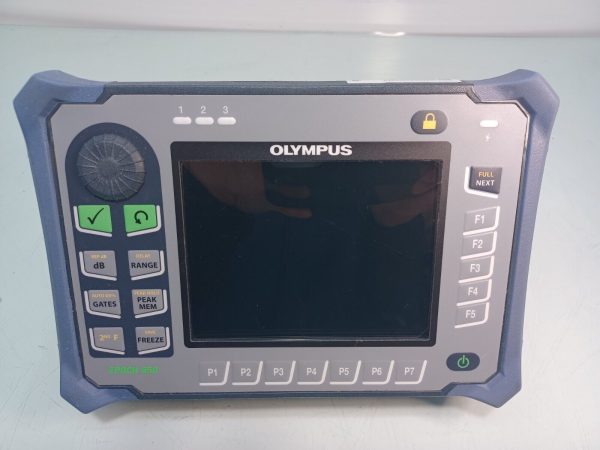

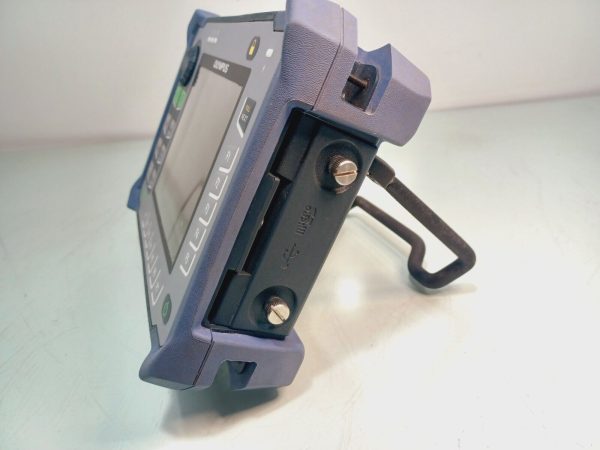

Olympus Epoch 650 Ultrasonic Flaw & Thickness Detector NDT Gage

Olympus Epoch 650 Ultrasonic Flaw & Thickness Detector NDT Gage w/ A109S-RB
The large transflective VGA display combined with our patented high dynamic range digital receiver provides a stable and striking A-scan display under all lighting conditions. The EPOCH 650 meets the requirements of the EN12668-1 standard and offers a wide range of standard and optional fault detection features. Multiple built-in reporting tools and a comprehensive data archiving system make it easy to capture and report high quality audit data.

Key Features:
– Designed to meet the requirements of EN12668-1
– PerfectSquareTM tunable square wave pulser
– Full screen A-scan mode
– Digital high dynamic range receiver
– Thirty digital filters for enhanced signal-to-noise ratio
– 2 kHz PRF for rapid scanning
– Knob or navigation pad adjustment configurations
– Large, full VGA sunlight readable display
– 15+ hours of battery life
– Standard dynamic DAC/TCG and onboard DGS/AVG
– Multiple on-board report formats

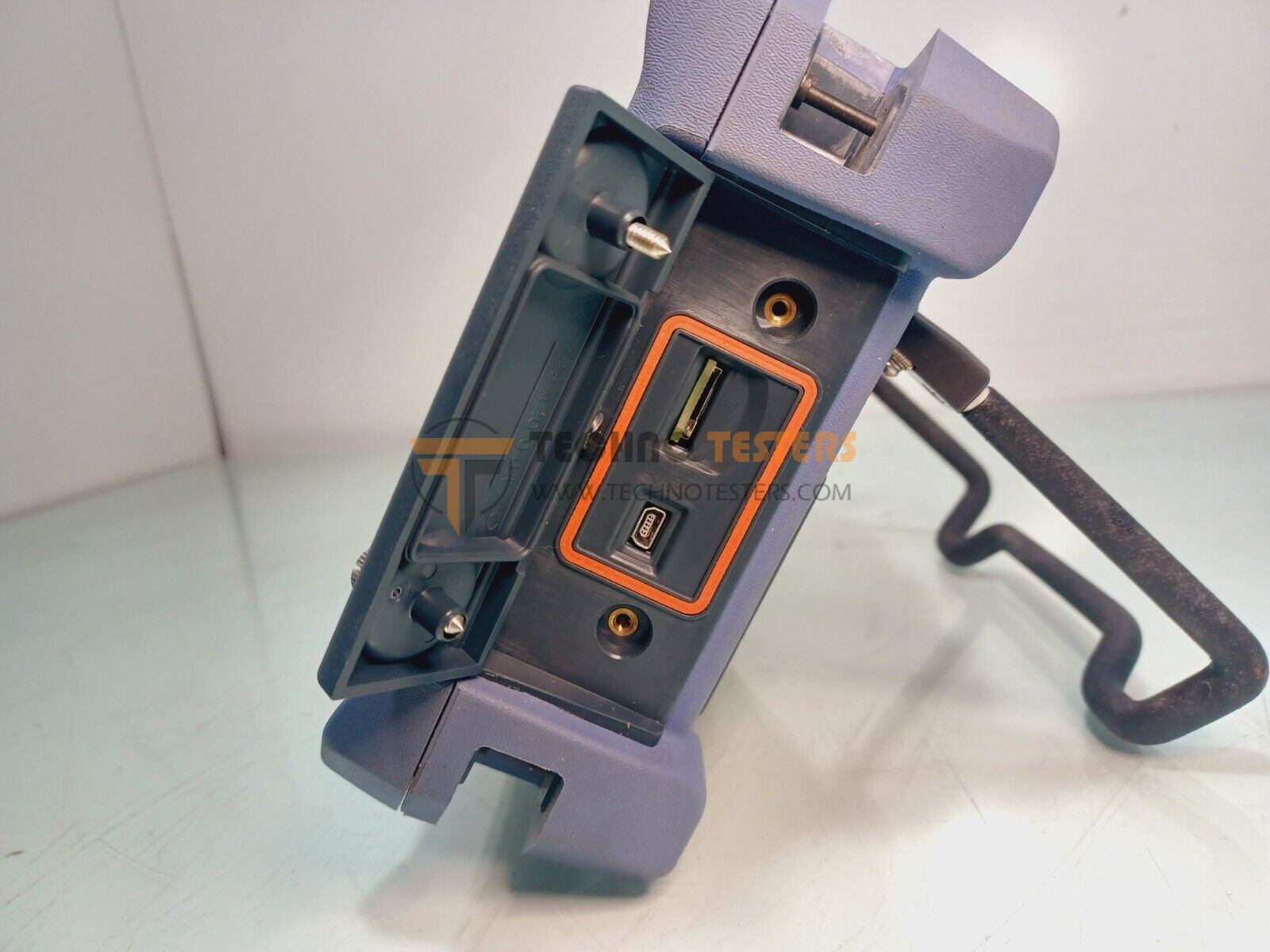

– MicroSD memory card for data transfers
– Optional Corrosion Module software with Encoded B-scan
– USB On-The-Go (OTG) for PC communication
– Alarm and VGA outputs
– Optional analog output

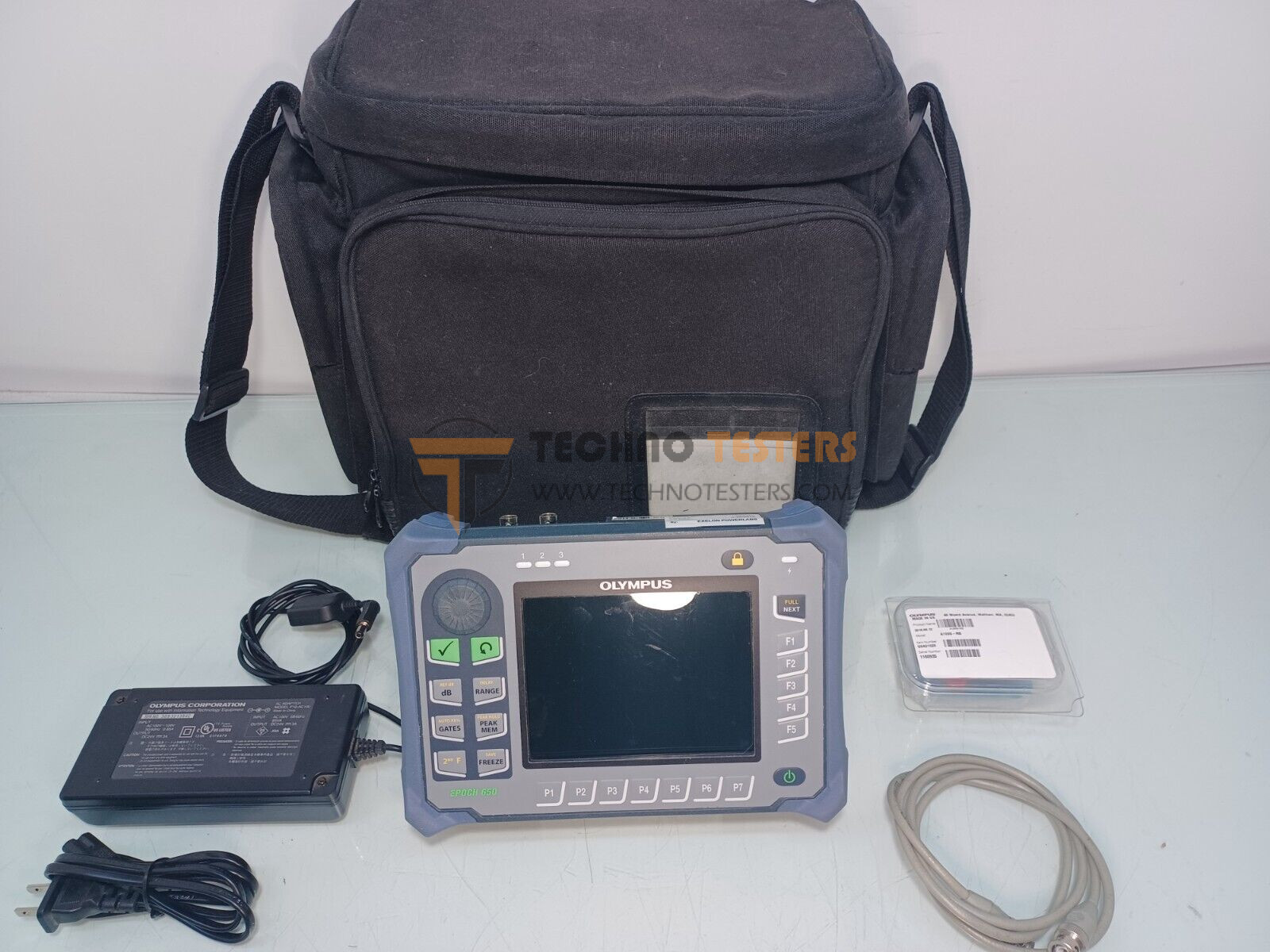

Includes:

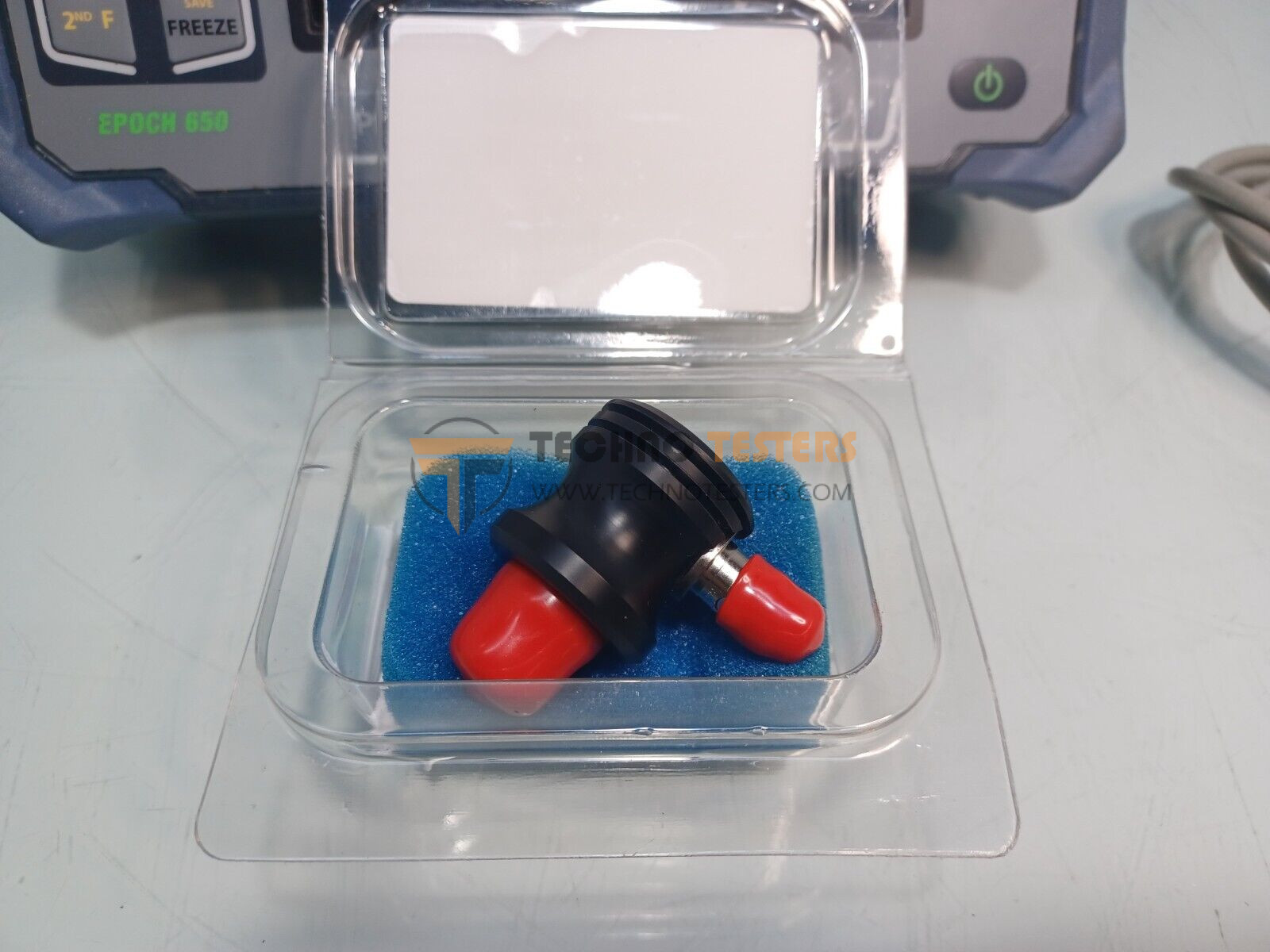

– A109S-RB
– BNC Cable
– Power Supply
– Carrying Case
– Hard Case
