iRIS DVR X Hand-Held Industrial Videoscope System

iRIS DVR X Hand-Held Industrial Videoscope System
Portable videoscope with video and image recording, text, 4-way articulation, large 5″ LCD, 6-hour rechargeable battery and comparative measurement. Available in 4mm and 6mm diameters. Lengths from 1.5 to 7.5m, perfect for a variety of industrial and aeronautical video borescope inspections.

Probe
– Diameter: 6.0 mm
– Length: 7.5 Meter
– Articulation: 4-Way
– Waterproof: 14.7psi (1 Bar)
– Operating Temperature: -13 to 176F (-25 to 80C)
– Sheath: Multi-Layered Tungsten Braid

Operating Unit
– Display: 5.5 in (12.7cm) TFT Color
– Display Resolution: VGA (640 x 480)
– Measurement: Comparison
– Operating System: Real Time, With On-Screem Menu
– User Interface: Direct Action, Function and Arrow Keys
– Video Interface: Composite Video Out (BNC)

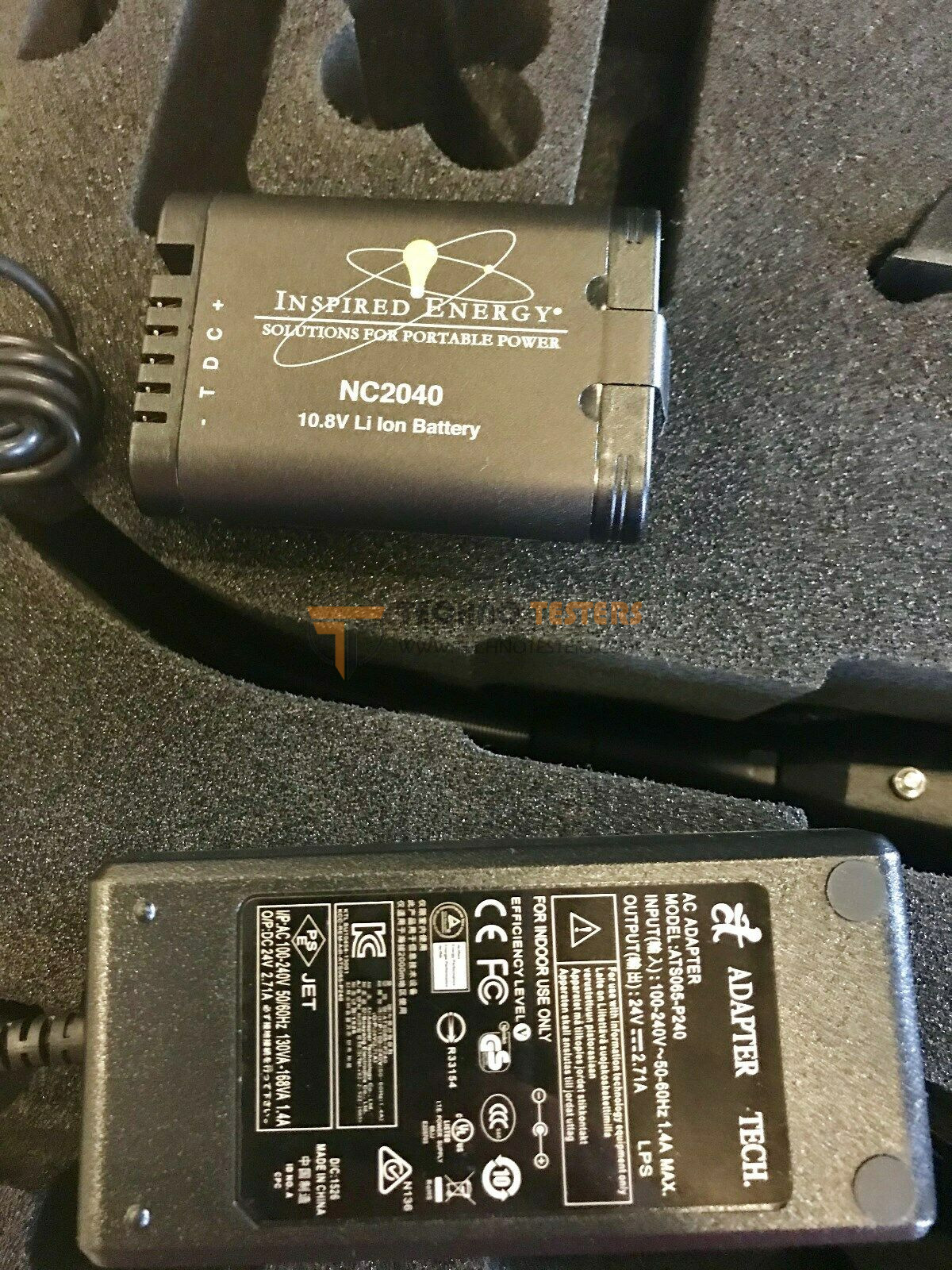

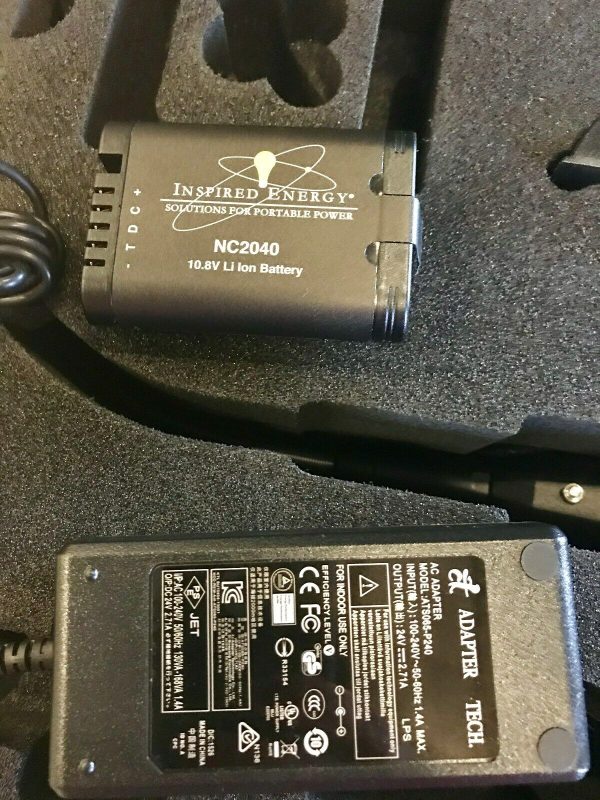

– DC Power Supply: Rechargeable Li-ion Battery
– Battery Operating Time: 6 Hours
– AC Power Supply: 12V Adapter

Documentation
– Video Format: AVI
– Image Format: BMP
– Storage: SDHC Memory Card Up To 32GB (8GB Included)

Camera Control
– Image Sensor: CMOS
– White Balance: Factory Default or User Defined

Image Control
– Digital Zoom: x3.5
– Invert: Horizontal and Vertical Image Inversion
– Adjustable Brightness, Contrast and Color
– Text Annotation: Built-in Full Screen Text Overlay

Illumination
– Illumination: High Power LED (4mm: Fiber Optic / 6mm: On Probe Tip)
– Illumination Control: 3 Steps
– Color Temperature: 6500K
– Average Lamp Lifetime: 5000 Hours

Case

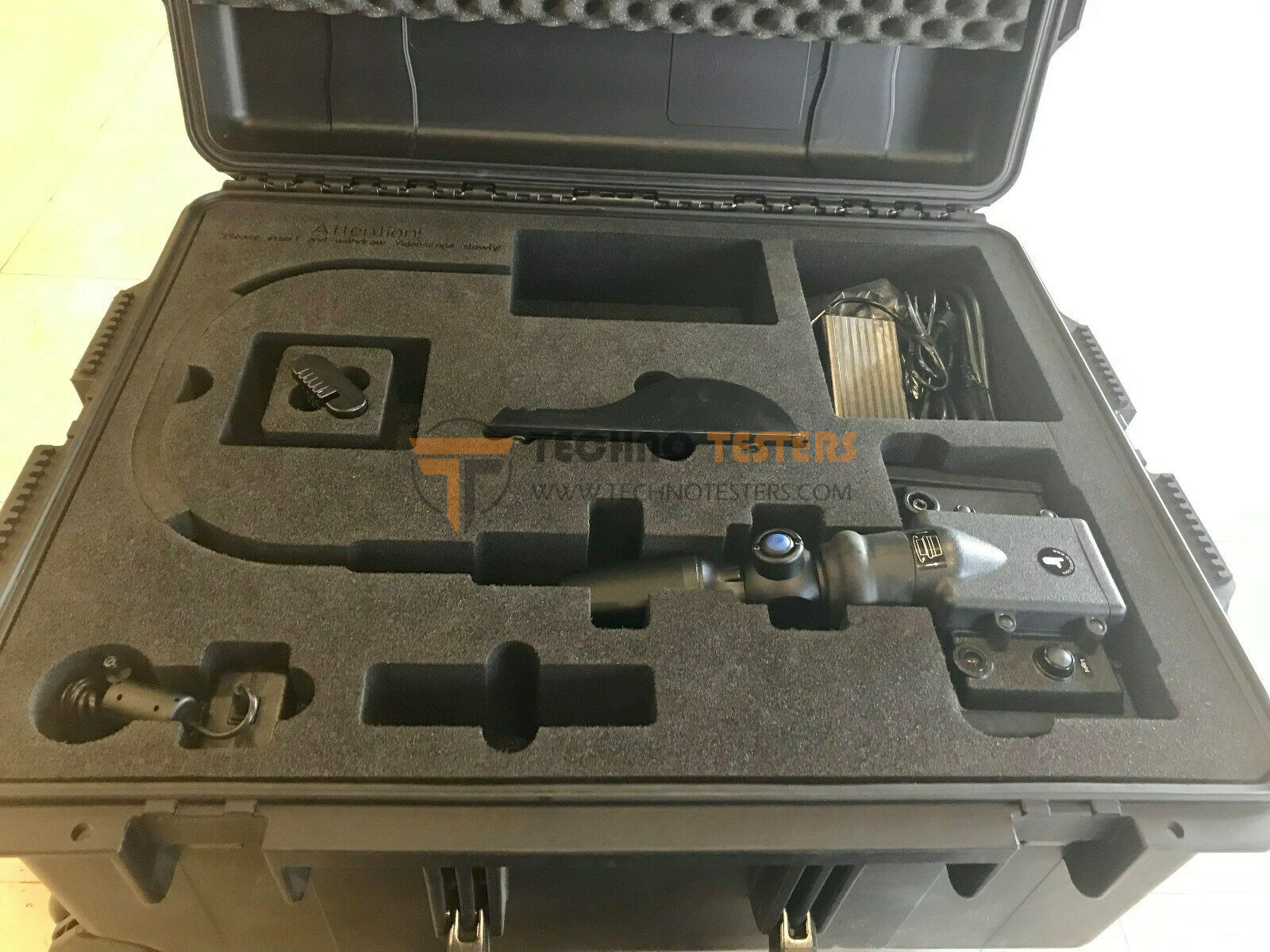

– Industrial Storage and Transportation Case (508mm x 397mm x 147mm)
