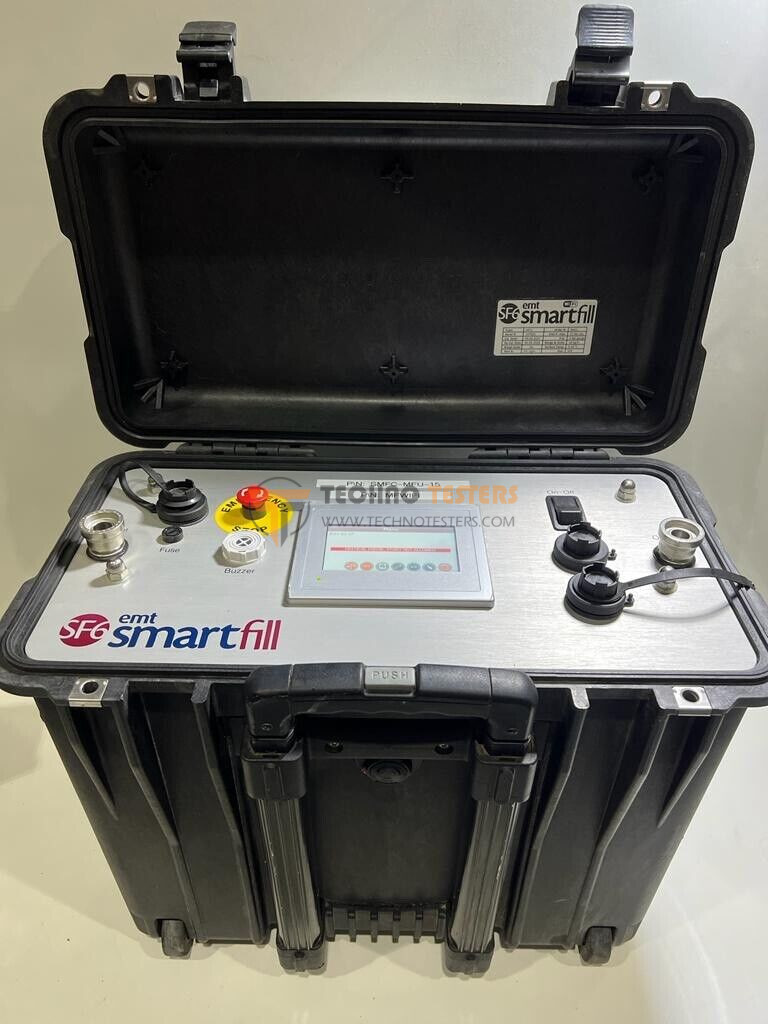

Smartfill MFU SF6 Filling and Topping Up System

When SF6 compartments are being filled and topped off, Smartfill MFU measures, regulates, and keeps an eye on SF6 gas with skill and accuracy.

SF6 compartment filling and topping can consume significant amounts of gas over an extended period of time, potentially leading to problems like:

• People’s safety
• Resources and time
• Line freezing
• Filling quality repeatability and human error
• Arc flashover
• Cost and downtime

The Smartfill MFU uses a number of industry-leading capabilities to address and resolve these problems. The Smartfill MFU provides precise and controlled compartment filling or topping up through the use of mass flow technology.

The Smartfill MFU uses datalogging technology to record the amount of SF6 that has been moved into compartments, meeting the basic needs of the T&D market and providing insight into the network’s SF6 inventory.

Features:

• Fully automated and portable operation
• Easy to use
• Easy operation using predetermined parameters
• WiFi connectivity for remote and safe distance operations
• Integrated weighing scales with the Smartweigh option
• Precision filling using mass flow technique with accuracy
• No leakage…. No wastage
• Automated data recording for audit and usage transparency
• Variable flow rates for control specific to an application

Smartfill MFU SF6 Filling & Topping up System Technical Specification:

Operation

• High flow rate up to 50 Kg/hr – Filling
• Low flow rate up to 15 Kg/hr – Topping Up

Accuracy

• MFC 1% of FS
• Pressure sensors 0.5 % FS
• Max inlet pressure : 10 Barg
• Min inlet pressure : 2 Barg

Certifications

• Leak test certificate (He leak test 10-4 SCCS)v
• Calibration certificate Pressure sensors + MFC
• Pressure test certificate (10 Barg)
