Used FixturLaser EVO Shaft Alignment For Sale

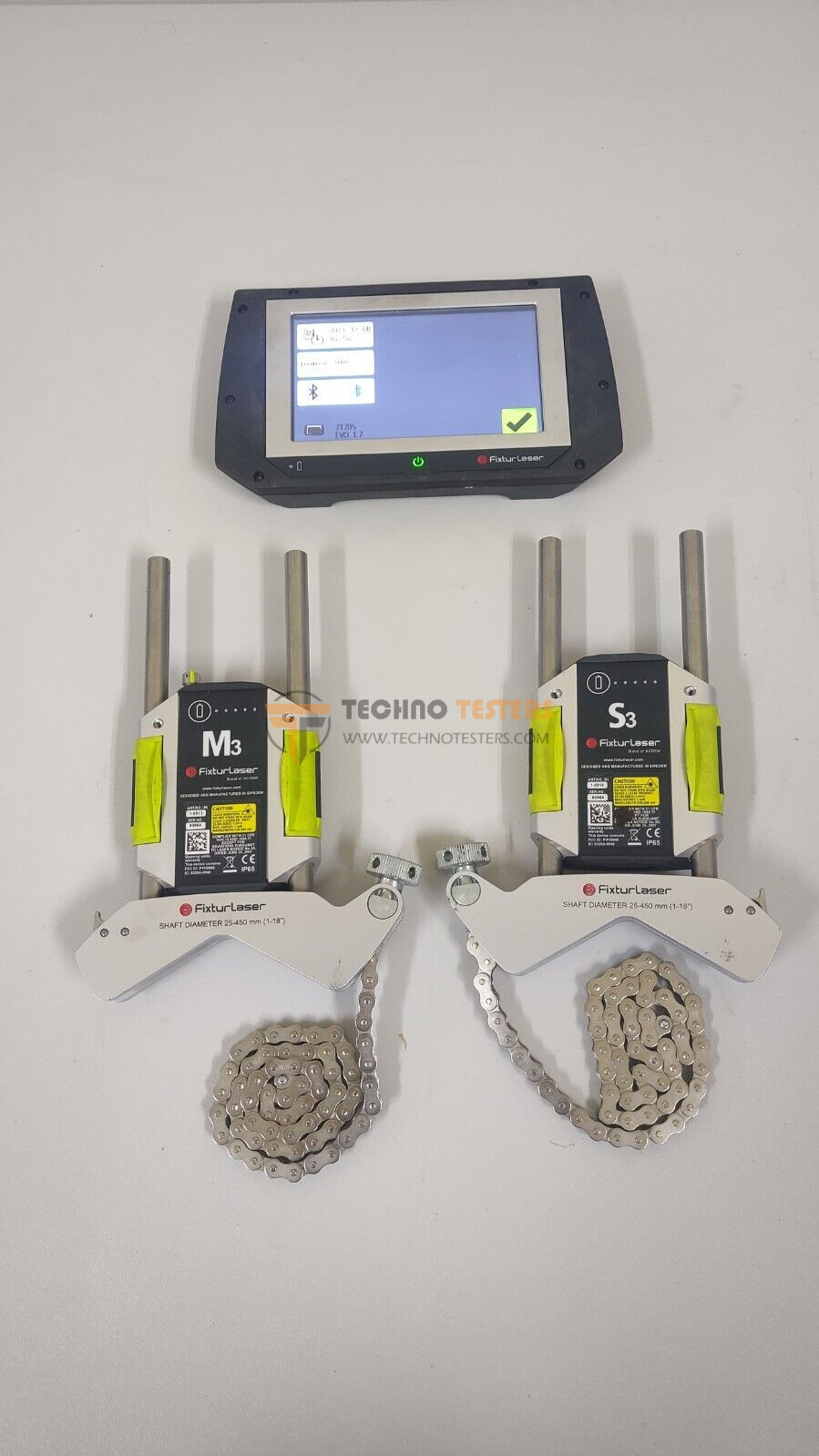

FixturLaser EVO Shaft Alignment System Tool Kit

Fixturlaser was the first to provide a digital shaft alignment system to the market since they were the first to employ digital CCD technology in sensors of this type. Regardless of the measurement setting or ambient light, a 30 mm CCD detector allows for exceptional precise alignment and unmatched reproducibility. When it comes to the ability to filter and refine the measurement data, the advantage over the previous analog PSD technology is unparalleled. The sensors’ small size—just 33 mm thick—allows them to easily fit into even the smallest areas, which is another advantage.

SPECIFICATIONS:

EVO – COMPLETE SYSTEM

• Weight (incl. all standard parts): 5,4 kg (11,9 lbs)

DISPLAY UNIT

• Weight: 0.36 kg (12,8 oz)
• Dimensions: 103mm x 181mm x 29 mm (4,0 in x 7,1 in x 1,1 in)
• Environmental protection: IP 65
• Display size: 5” (127mm, 5,0 in) diagonal (111 x 63 mm, 4,3 x 2,5 in)
• Operating time: 8 hours continuous use

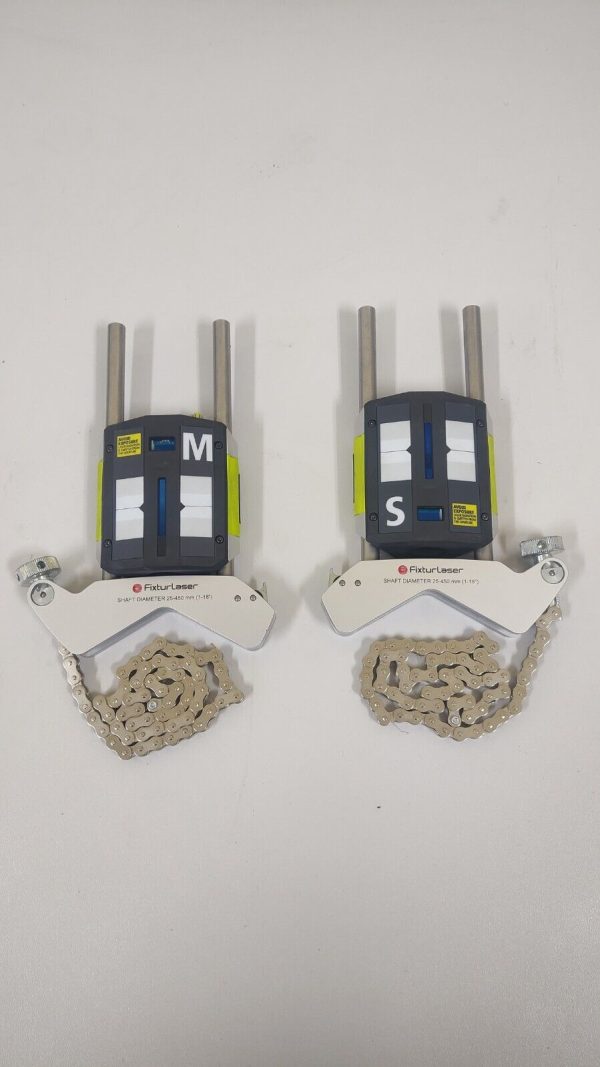

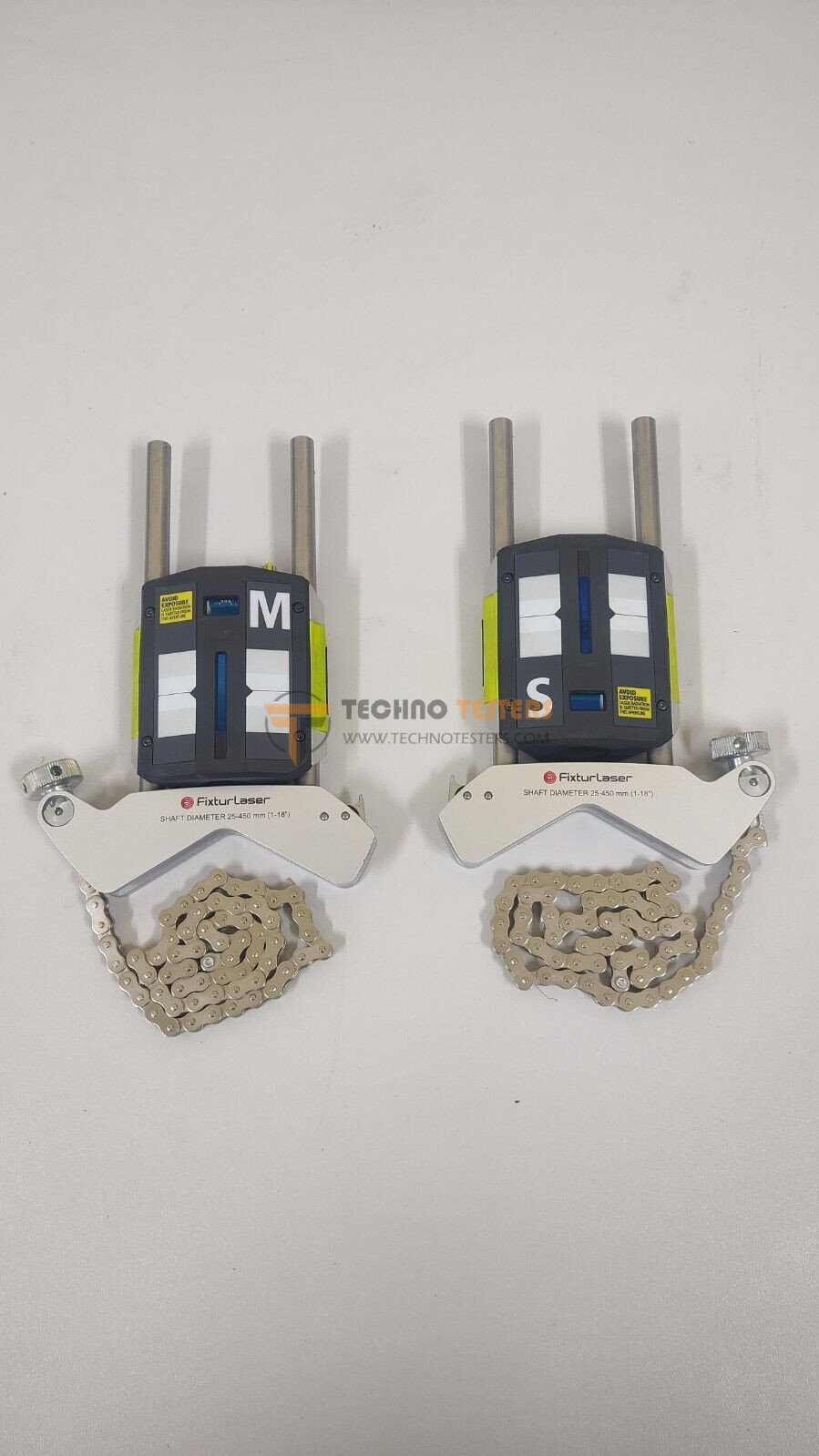

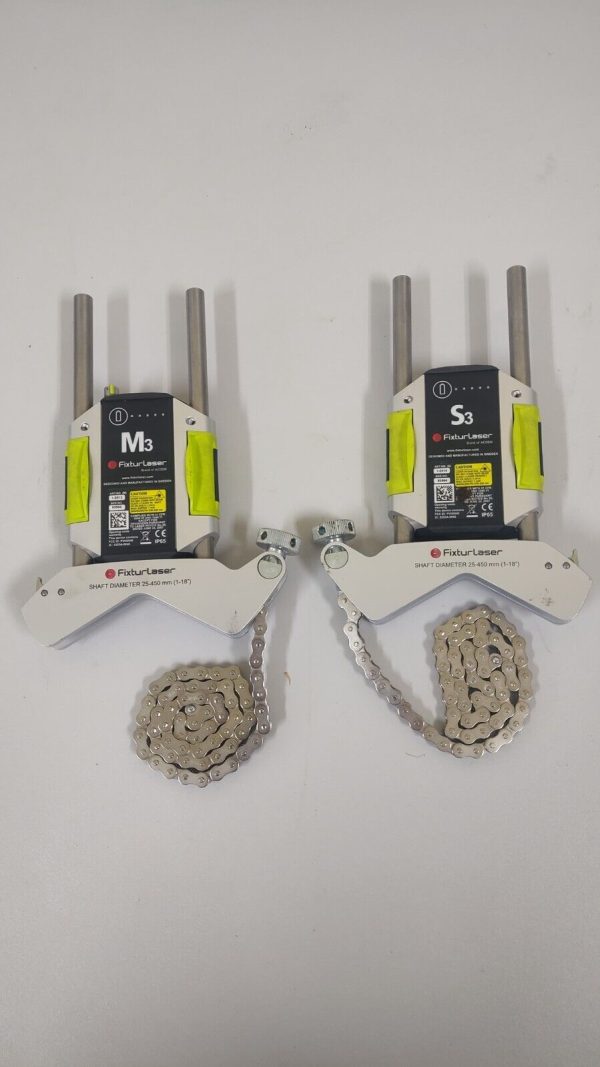

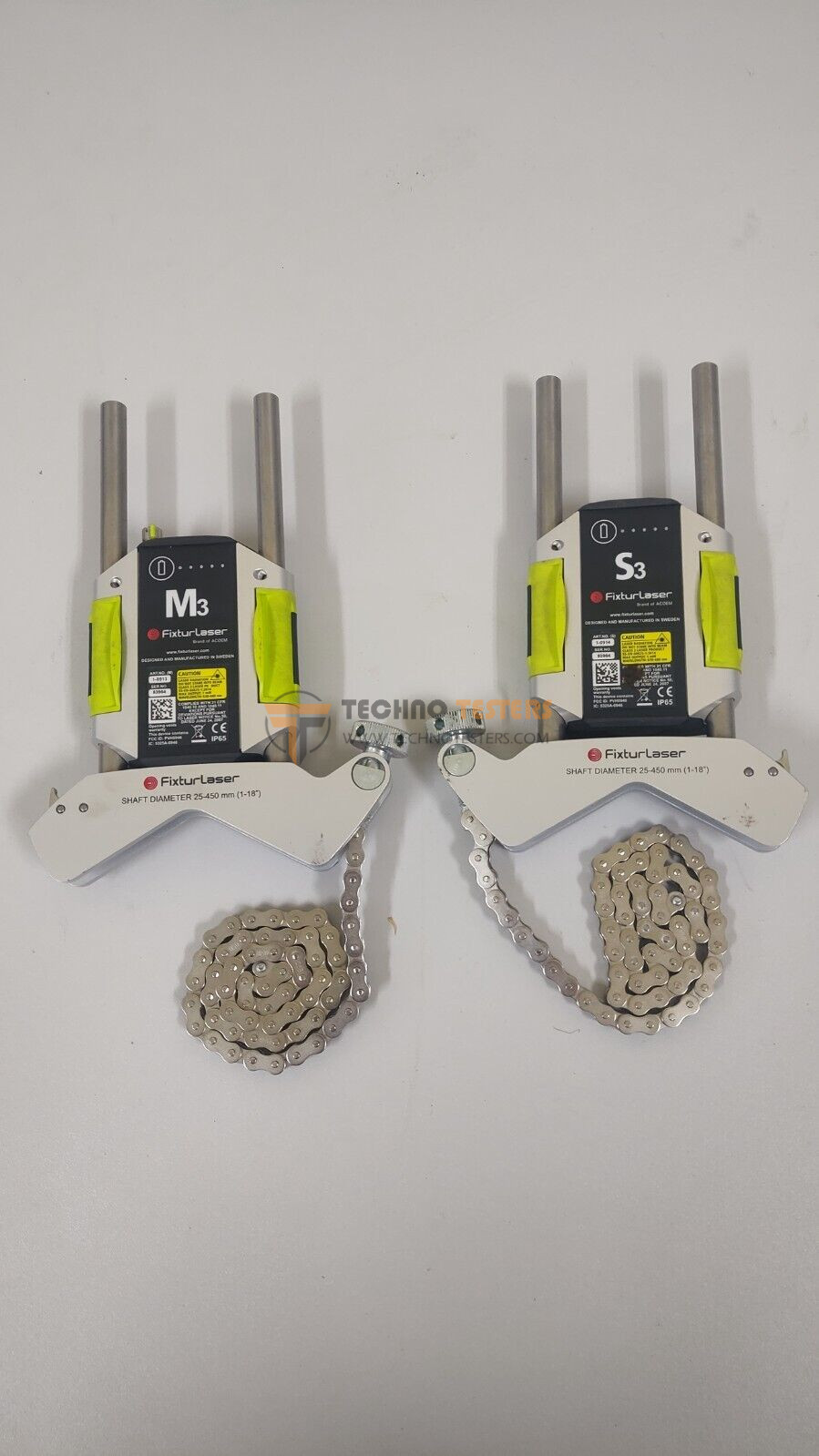

TD UNITS

• Weight: M3 212 g (7,5 oz) S3 188 g (6,6 oz)
• Dimensions: 92mm x 77mm x 33mm (3,6 in x 3,0 in x 1,3 in)
• Environmental Protection: IP 65
• Measurement Distance: Up to 10 m
• Detector: 2nd generation digital sensor
• Detector Length: 30 mm (1,2 in )
• Detector Resolution: 1 µm (0,04 mils)
• Measurement Accuracy: 0,3% ± 7 µm (0,3% ± 0,27 mils)

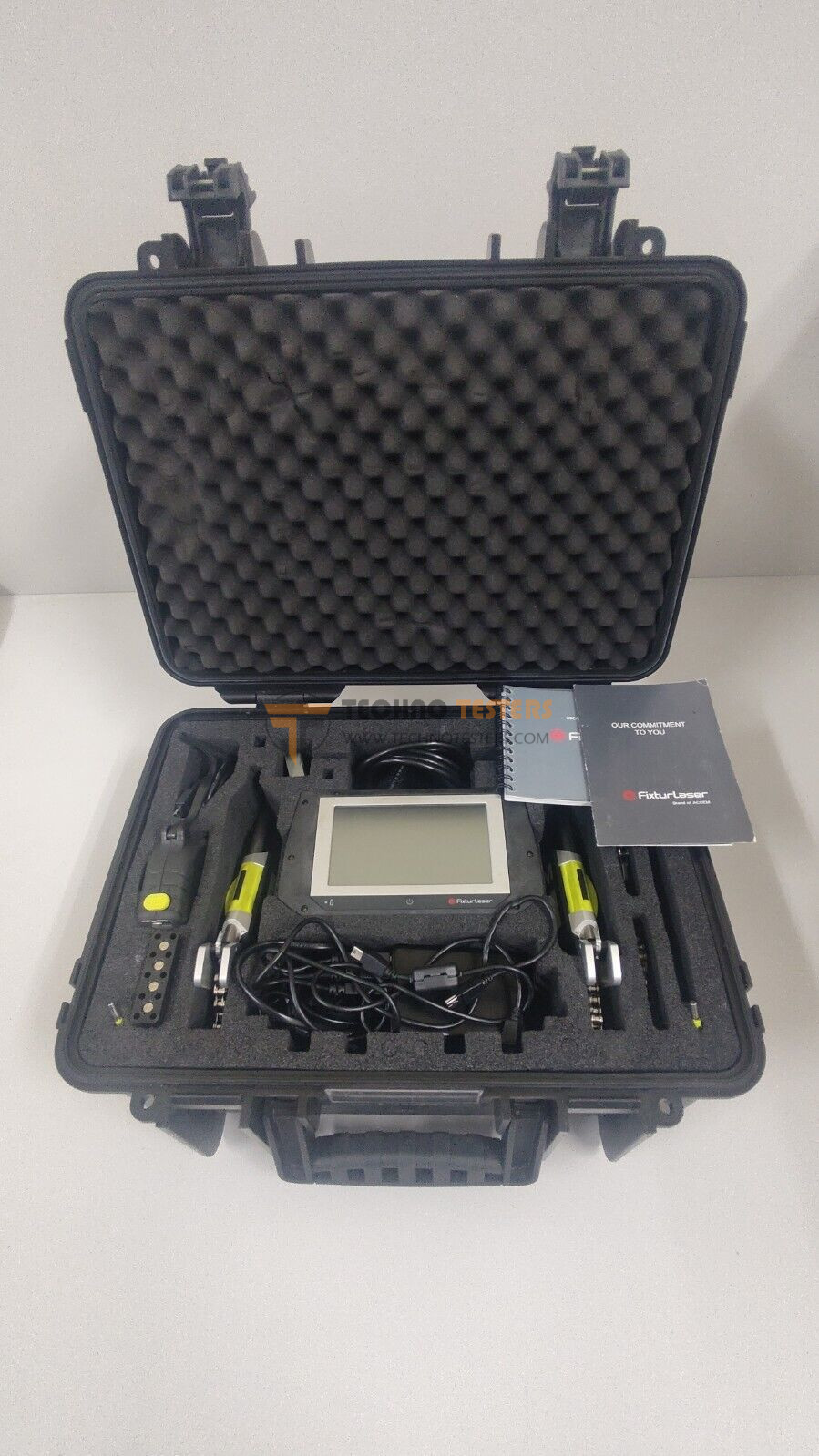

Includes:

• Display unit
• S3 Shaft brackets complete incl. 4 rods, 150 mm Chain, 470 mm
• M3 Shaft brackets complete incl. 4 rods, 150 mm Chain, 470 mm
• USB cable
• Power cable
• Tape measure 5 m
• Chain 8 mm (L 970 mm)
• Power supply 4 USB ports
