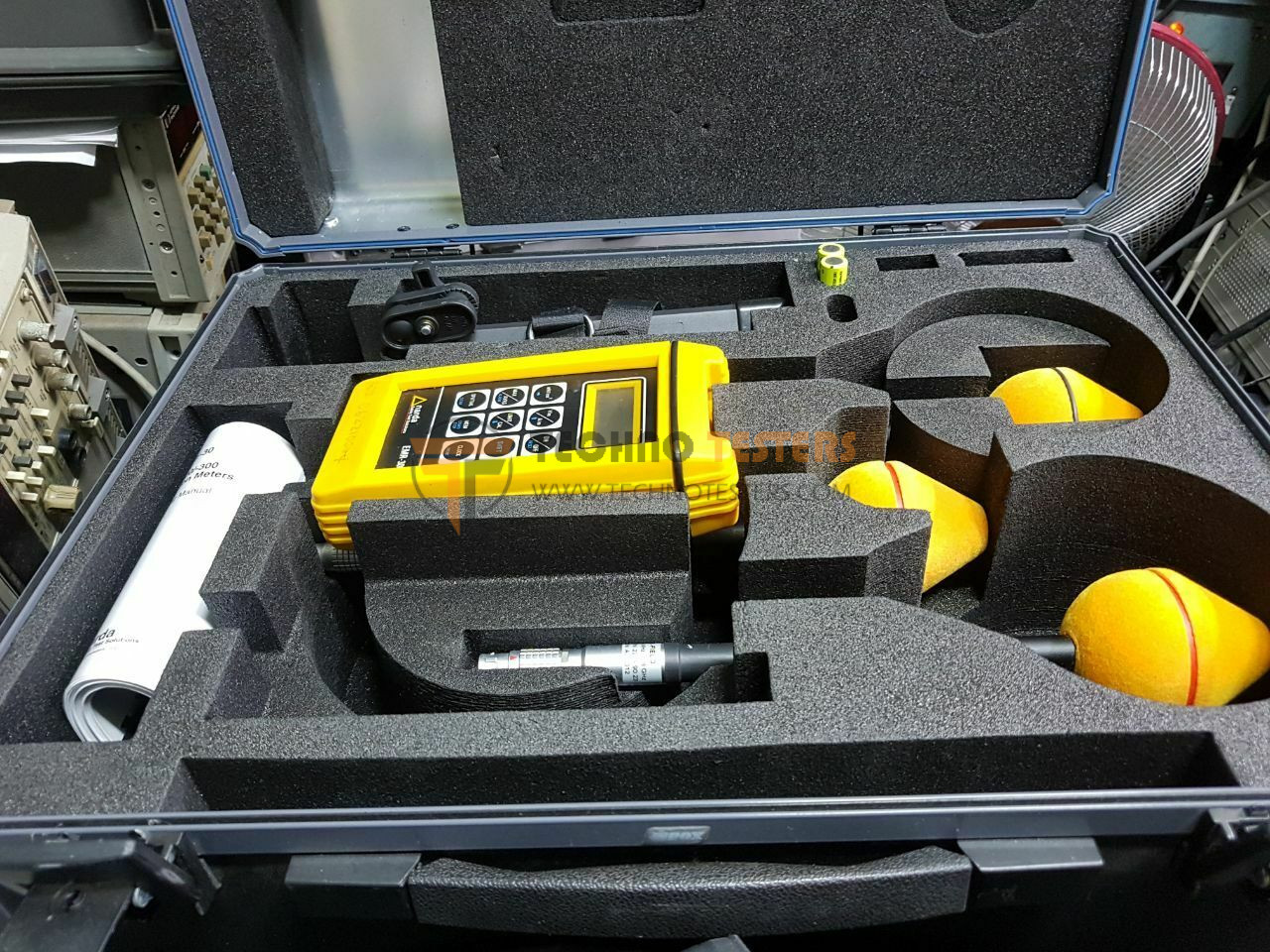

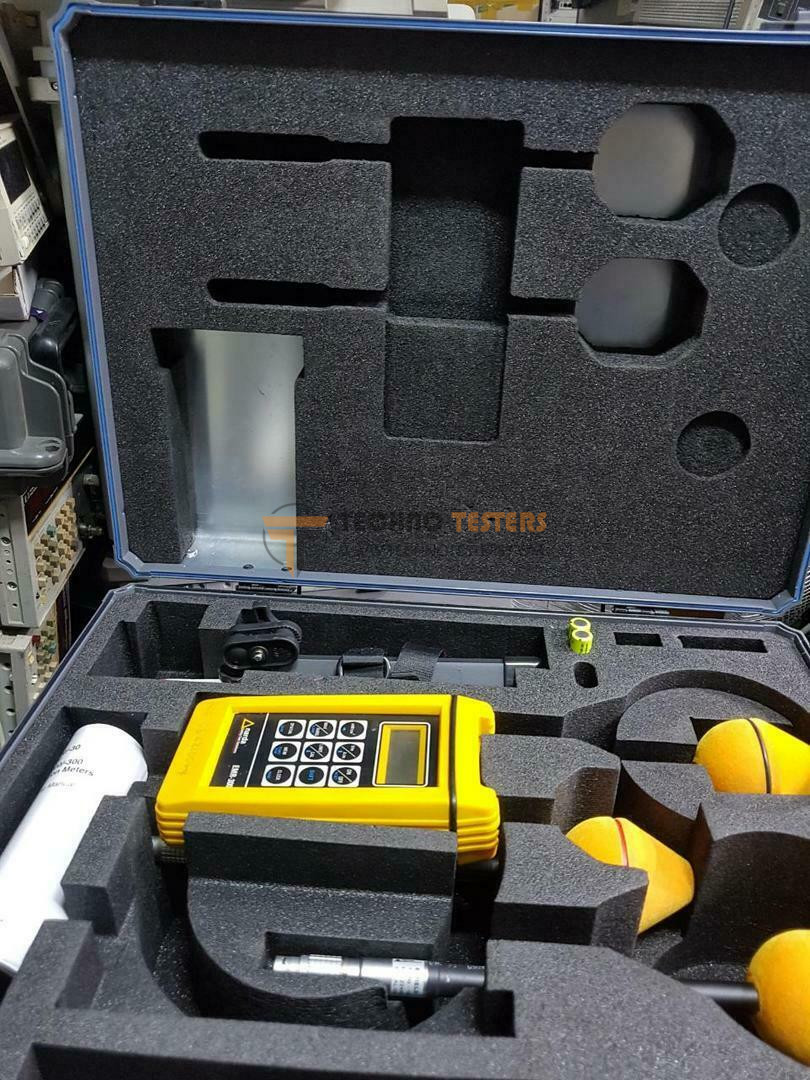

Narda EMR300 Version 3.0 Indicator Radiation System w/ 3 Probes

Narda EMR300 Version 3.0 Indicator Radiation System w/ 3 Probes
The Narda EMR-300 meter features a lightweight design with an integrated impact-resistant cover. Customers use this meter for high sensitivity, high dynamic range inspection. Electrical, magnetic and molded probes are available to meet almost any inspection need. Each available probe has approximately 60 dB of dynamic range without changing the measurement range. Unique to this series is the H-field probe, which can be used from 3 kHz to 1 GHz.

Features
– Available with Isotropic Probe that covers 100 kHz to 3 GHz
– Easy-to-use design
– Lightweight and Rugged
– Cost effective
– Fully automatic zeroing

Details

Display Specification:
– Display Type: 4 ½ Digit LCD
– Display Refresh Rate: 400 msec., Typical
– Resolution: 0.01 v/m, 0.0001 A/m
– Settling Time (Typical): 1 sec. (0 to 90% of measured value)

Measurement Functions:
– Units: V/m, A/m, mW/cm2, W/m2,% of limit value
– Results Displayed: Current result or maximum value since turn-on
– Averaging: Current result or variable from 4 sec. to 15 min.

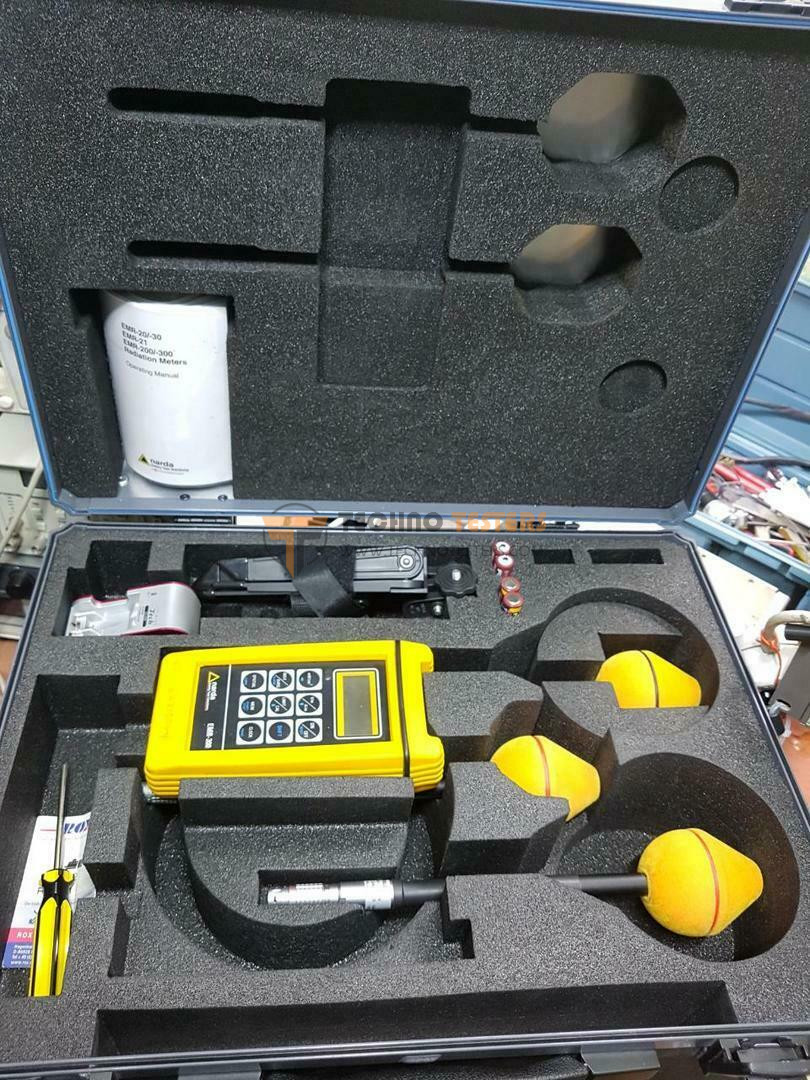

Includes:

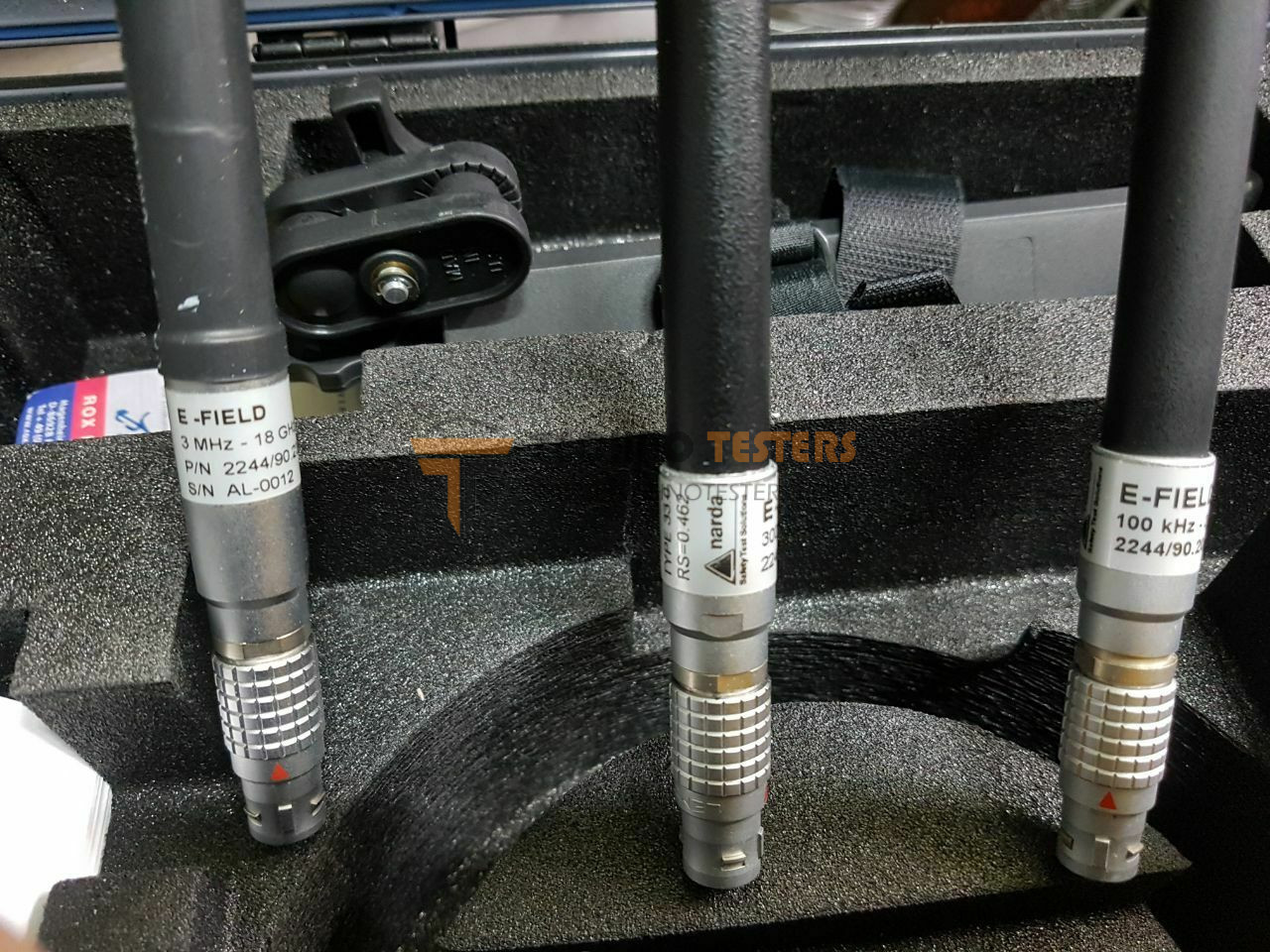

Probe
1. Type 8.3 100kHz-3GHz
2. Type 33.0 300MHz-50GHz
3. Type 92 3GHz-18GHz
