High Voltage CDS-2010U Constant Energy Capacitor

High Voltage CDS-2010U Constant Energy Capacitor Discharge System 20kV Megger

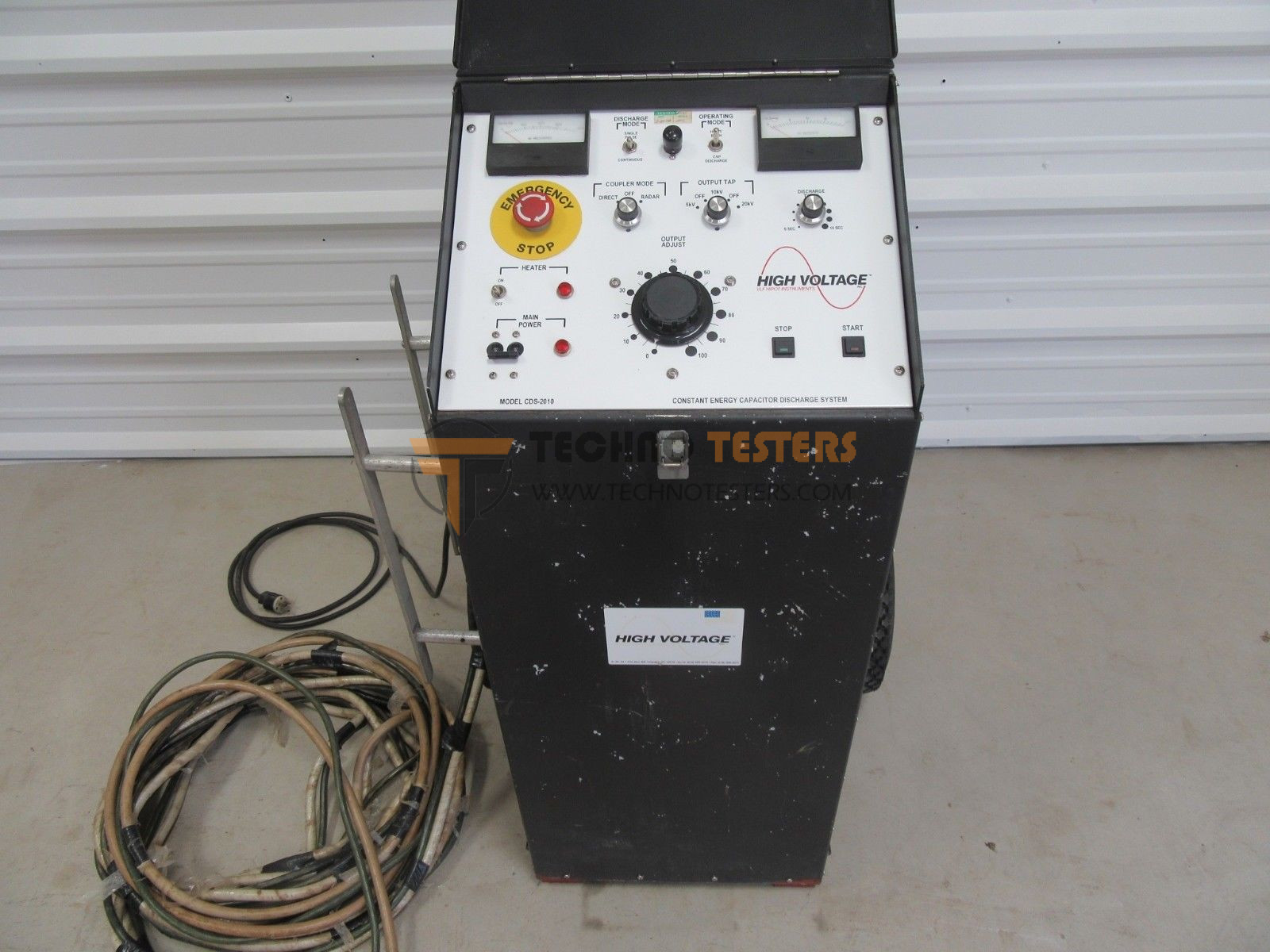

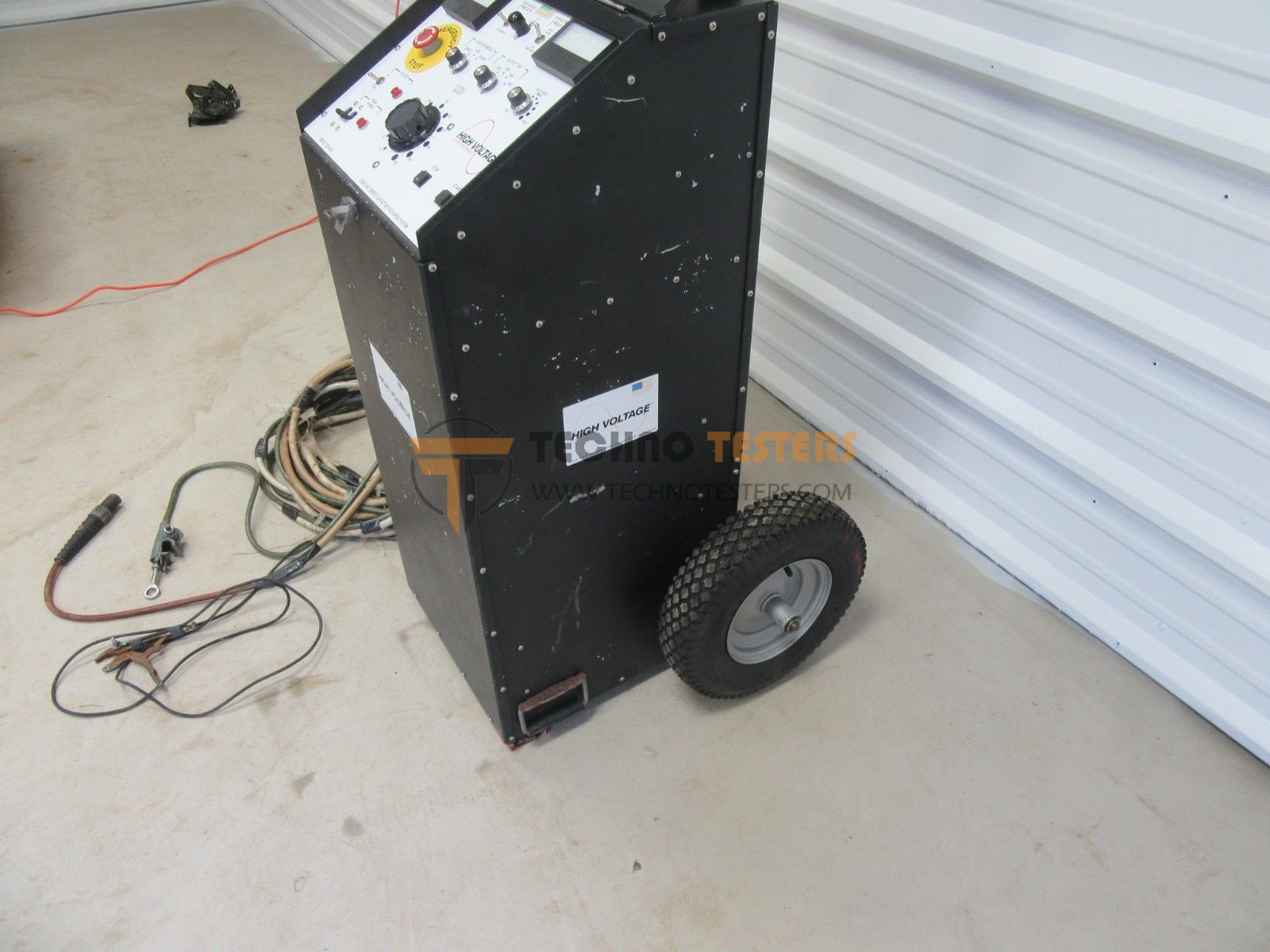

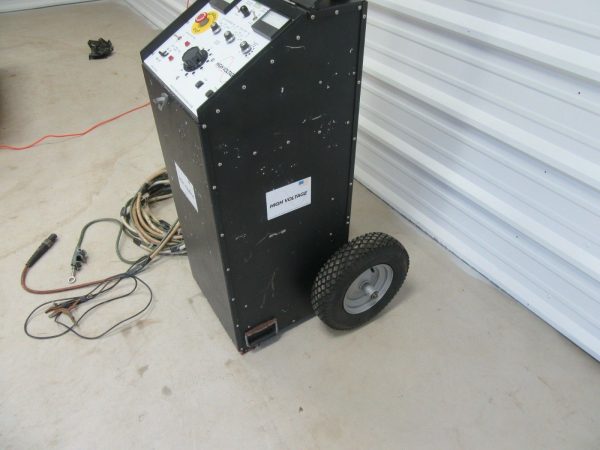

Nice used CDS-2010U High Voltage Constant Energy Capacitor Discharge System. Comes with the cables shown. Good functioning of the device from a properly maintained environment. Save thousands of dollars on this great, gently used machine. You will receive only what is pictured.

Specifications
Input: 120 V, 60 Hz, 20 A
Hipot Output: 0 – 5/10/20 kV DC
Hipot Burn Current: 400/200/100 mA @ 5/10/20 kV output settings
Discharge Output: 1000 J at each output voltage when 100% 1
Discharge Rate: 6 – 10 seconds
TDR Interface: Internal – arc reflection and current impulse

Size & Weight:
(W x D x H) 27 x 27 x 48 in., 260 lb.
686 x 686 x 1219 mm, 118 kg

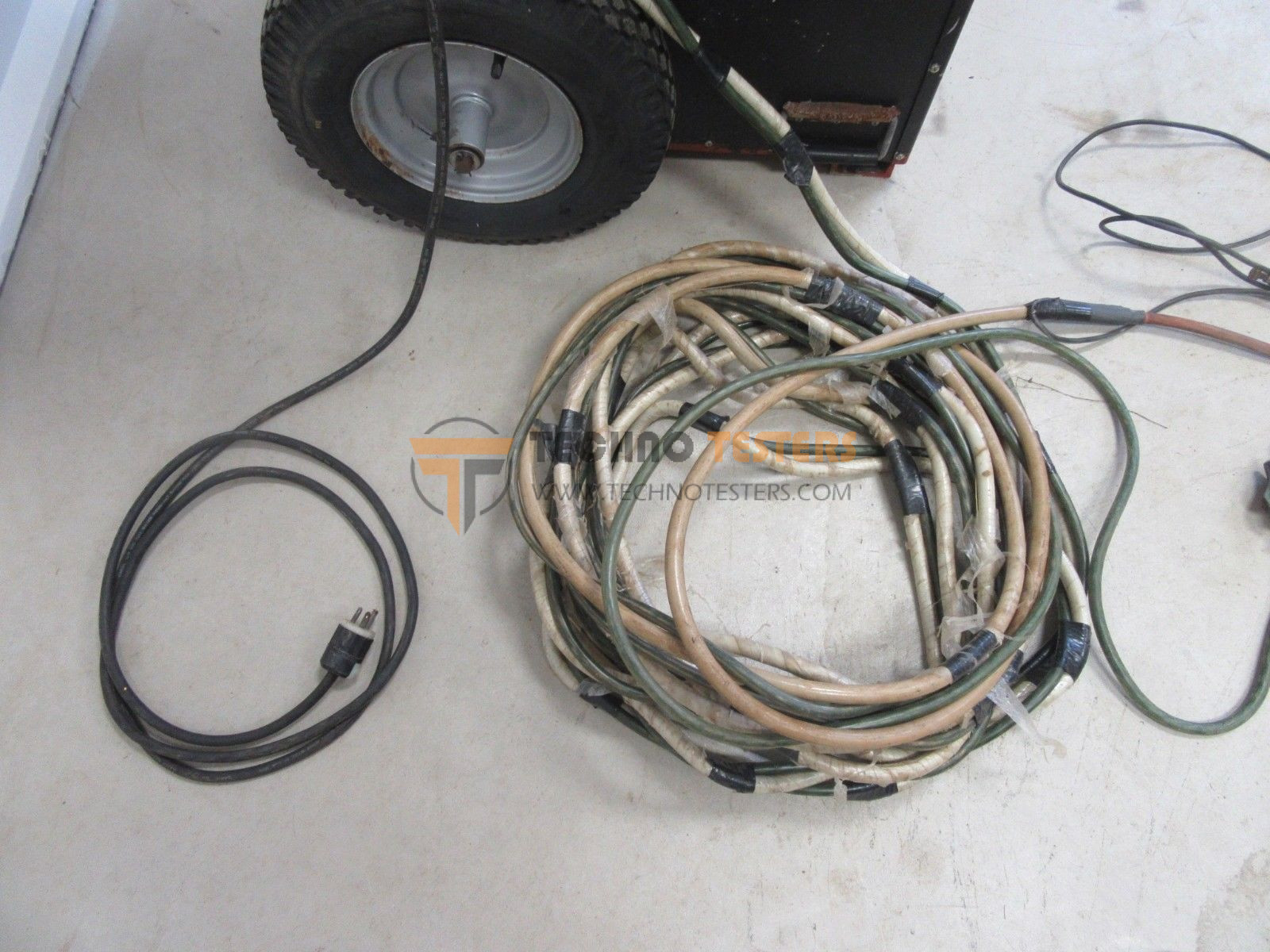

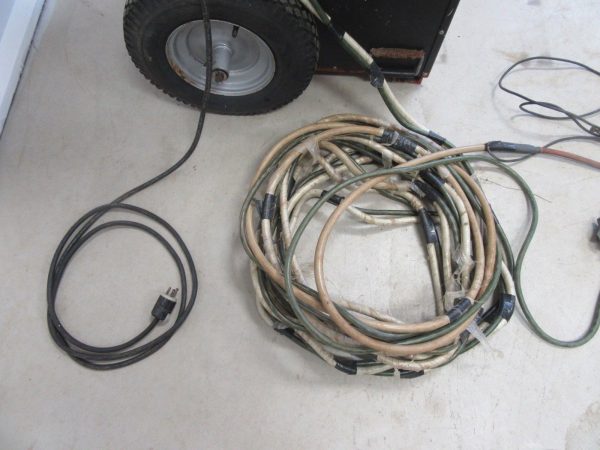

Output Termination: 50′ HV EPR, return, and ground
EPR output cable remains flexible in cold weather
Other Features: Rugged, transit protected meters
External interlock
Emergency OFF mushroom switch
Internal heater to limit condensation
1. This model can discharge 1000 J at only 5 kV.
