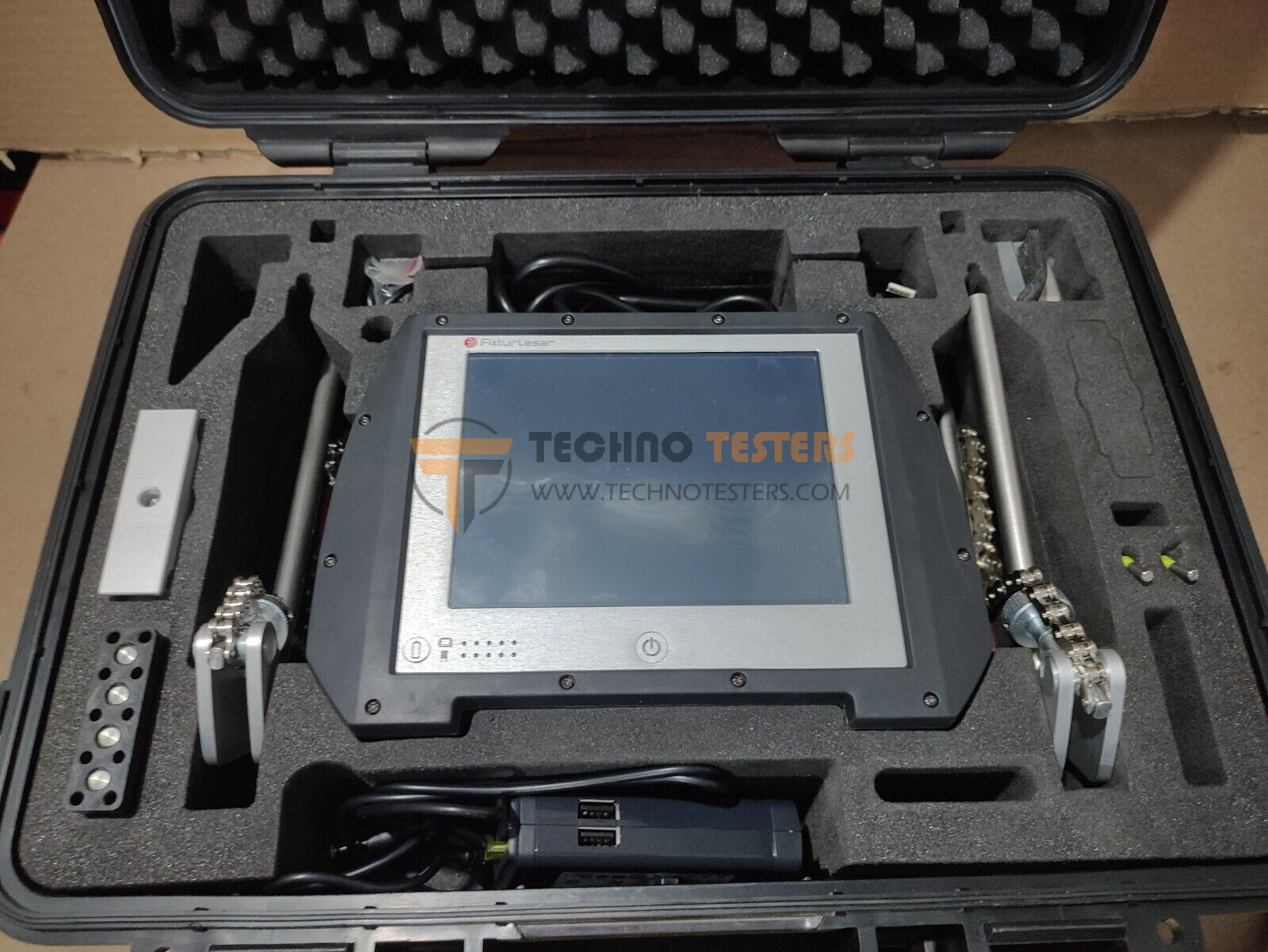

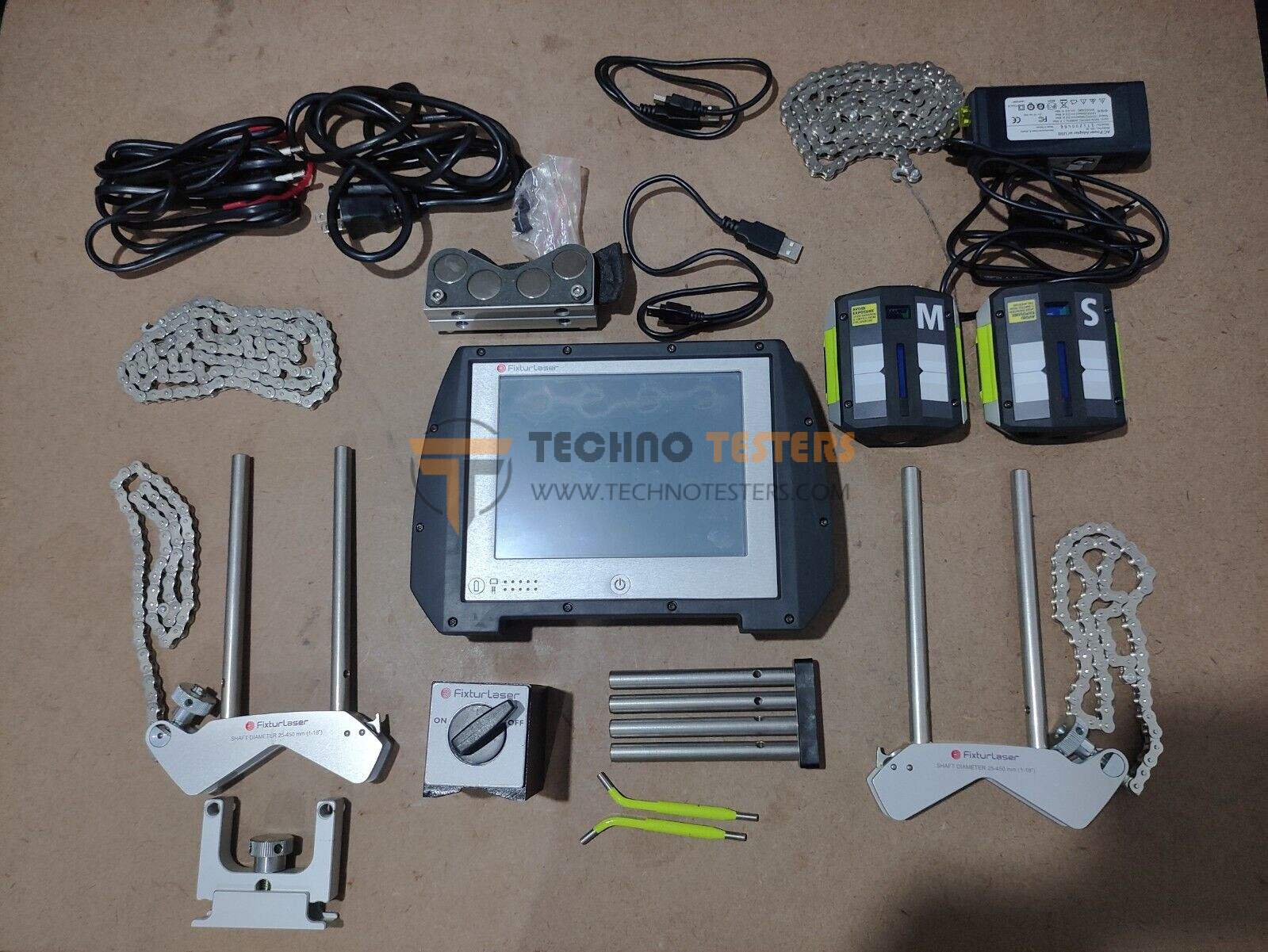

Fixturlaser NXA Pro Laser Shaft Alignment System Kit

Shaft alignment technology and user-friendliness are both revolutionized by the FixturLaser NXA Pro. This laser-based digital alignment tool operates quickly and precisely by utilizing state-of-the-art technology such as VertiZontal Moves and OmniView. Another feature it uses is one of the greatest power management systems currently available on the market.

FIXTURLASER ROP
The FIXTURLASER ROP is a displacement probe that runs on batteries and pairs wirelessly with the Fixturlaser NXA Pro display device using Bluetooth. It is useful for:

• Checking bent shafts
• Checking bearing clearances
• Thermal growth on machine casings
• Checking movements due to pipe strain
• Axial and radial runout checks on flanges
• Checking movements on machine feet (soft foot)
• Eccentric or skewed mounting of coupling hubs

FIXTURLASER NXA PRO TECHNICAL SPECIFICATION:

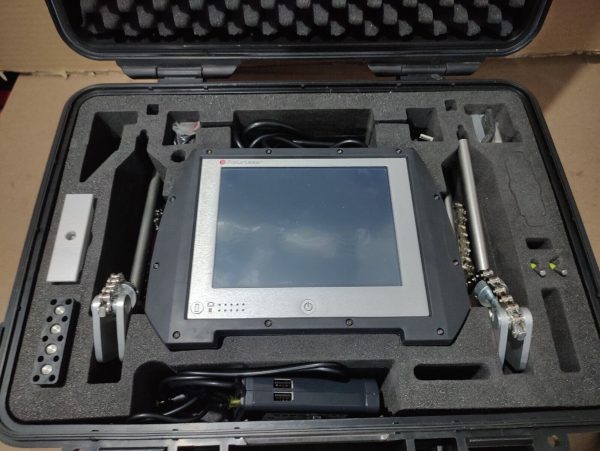

Display Unit:

• Weight: 1,2 kg (2,6 lbs) with battery
• Dimensions: 224 mm x 158 mm x 49 mm (4,9 in x 6,2 in x 1,9 in)
• Environmental protection: IP 65 (Dust tight and protected against water jets)
• Display size:6,5” (165 mm) diagonal (133 x 100 mm)
• Gyroscope: 6-Axis MEMS Inertial Motion Sensor with drift compensation and automatic field calibration.
• Operating time: 10 hours continuous use (with 50% LCD backlight)
• Quick battery charging time (system off, room temperature): 1 hour charge – 6 hours operating time

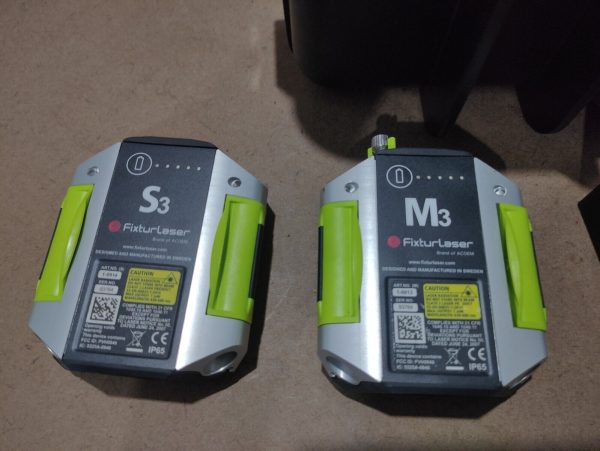

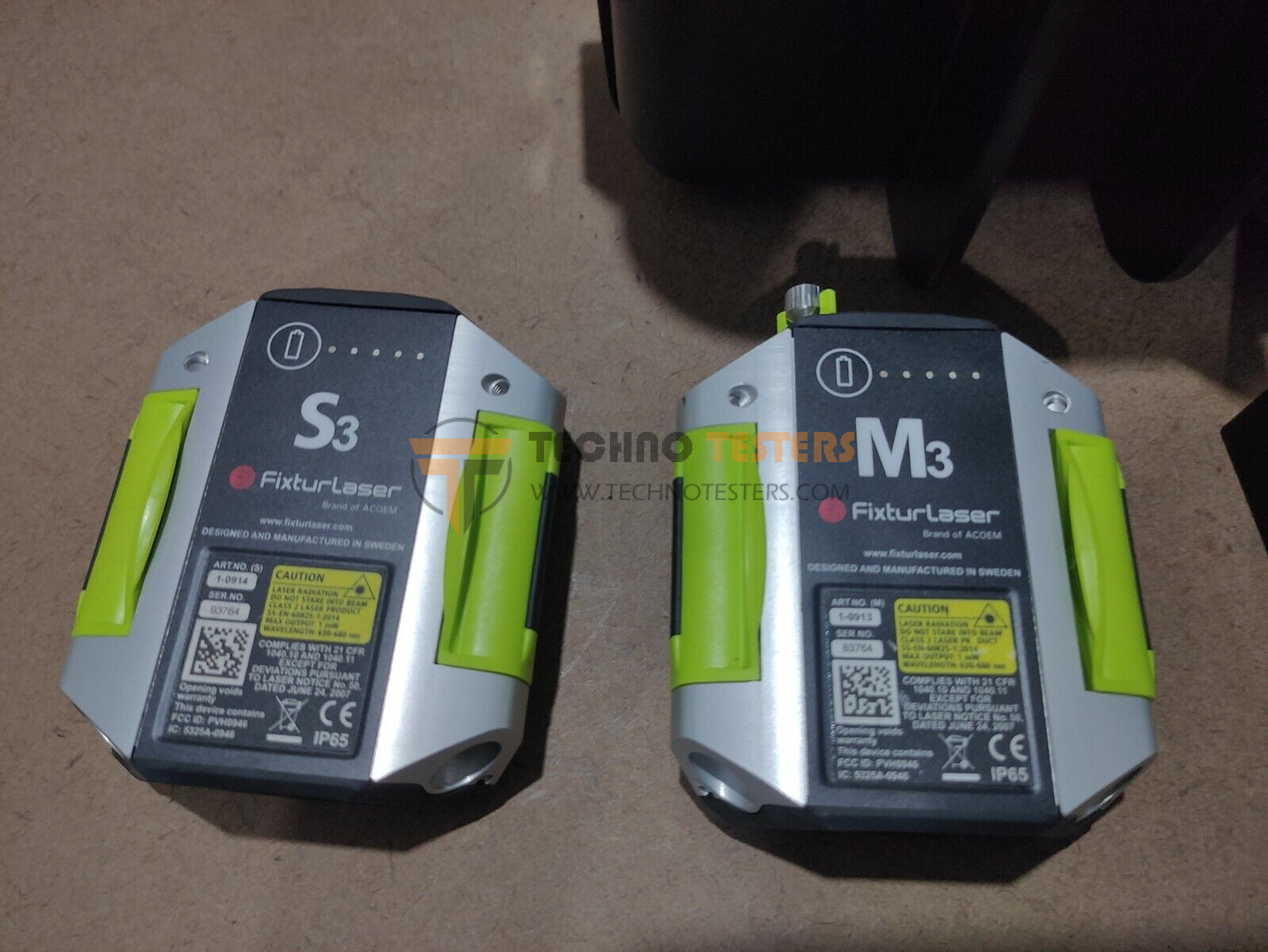

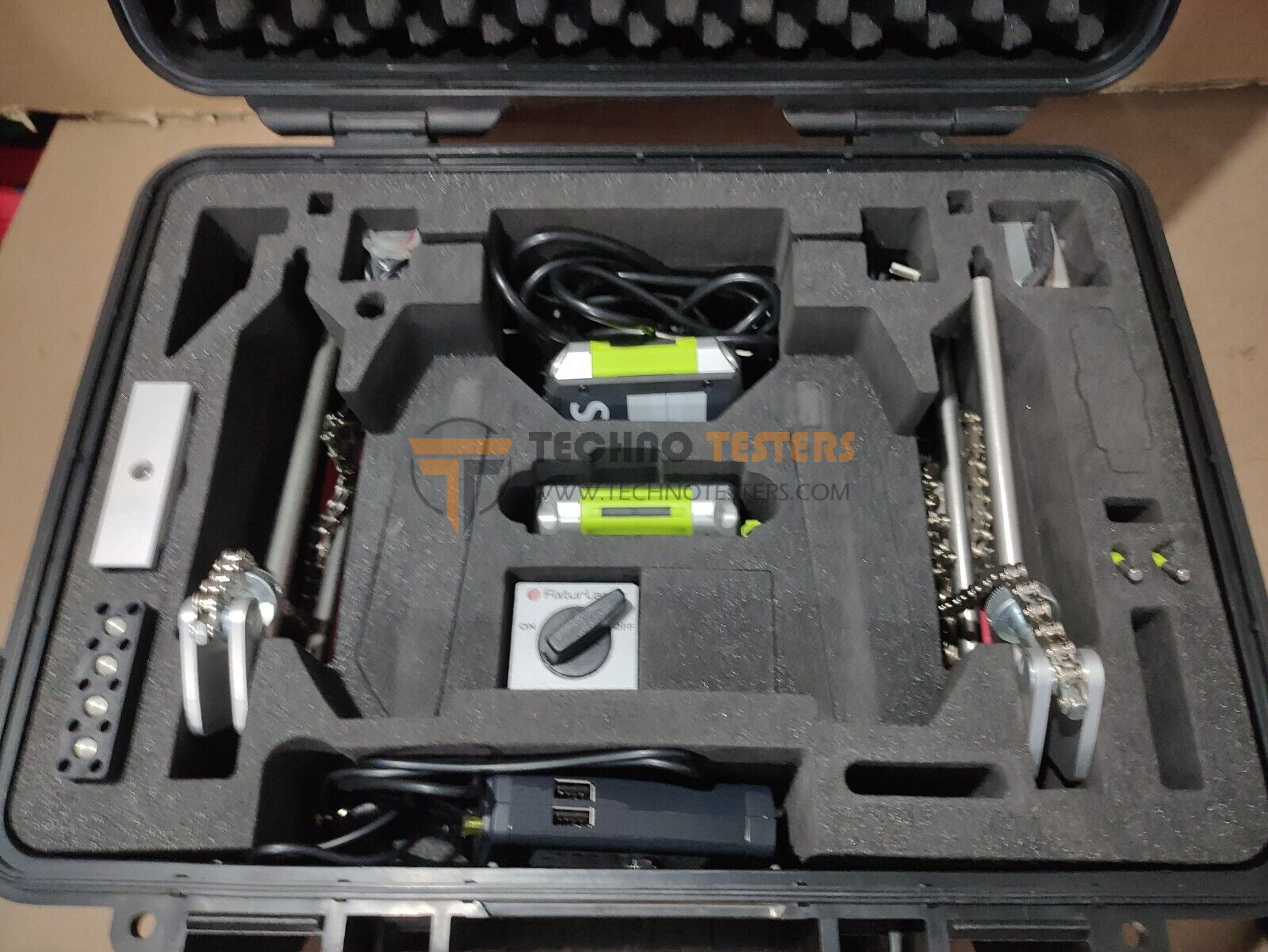

Digital Laser Sensors:

• Weight: 192 g (6,8 oz) with battery
• Dimensions: 92 mm x 77 mm x 33 mm (3,6 in x 3,0 in x 1,3 in)
• Environmental protection: IP 65 (Dust tight and protected against water jets)
• Measurement distance: Up to 10 m
• Detector: Second generation digital sensor
• Detector length: 30 mm (1,2 in)
• Detector resolution: 1 µm
• Measurement accuracy: 0,3% ± 7 µm
• Gyroscope: 6-Axis MEMS Inertial Motion Sensor with drift compensation and automatic field calibration
• Operating time: 17 hours continuous use (measuring)
• Inclinometer: Dual High Performance MEMS inclinometers
• Inclinometer accuracy: ±0,2°
• Inclinometer resolution: 0,01°

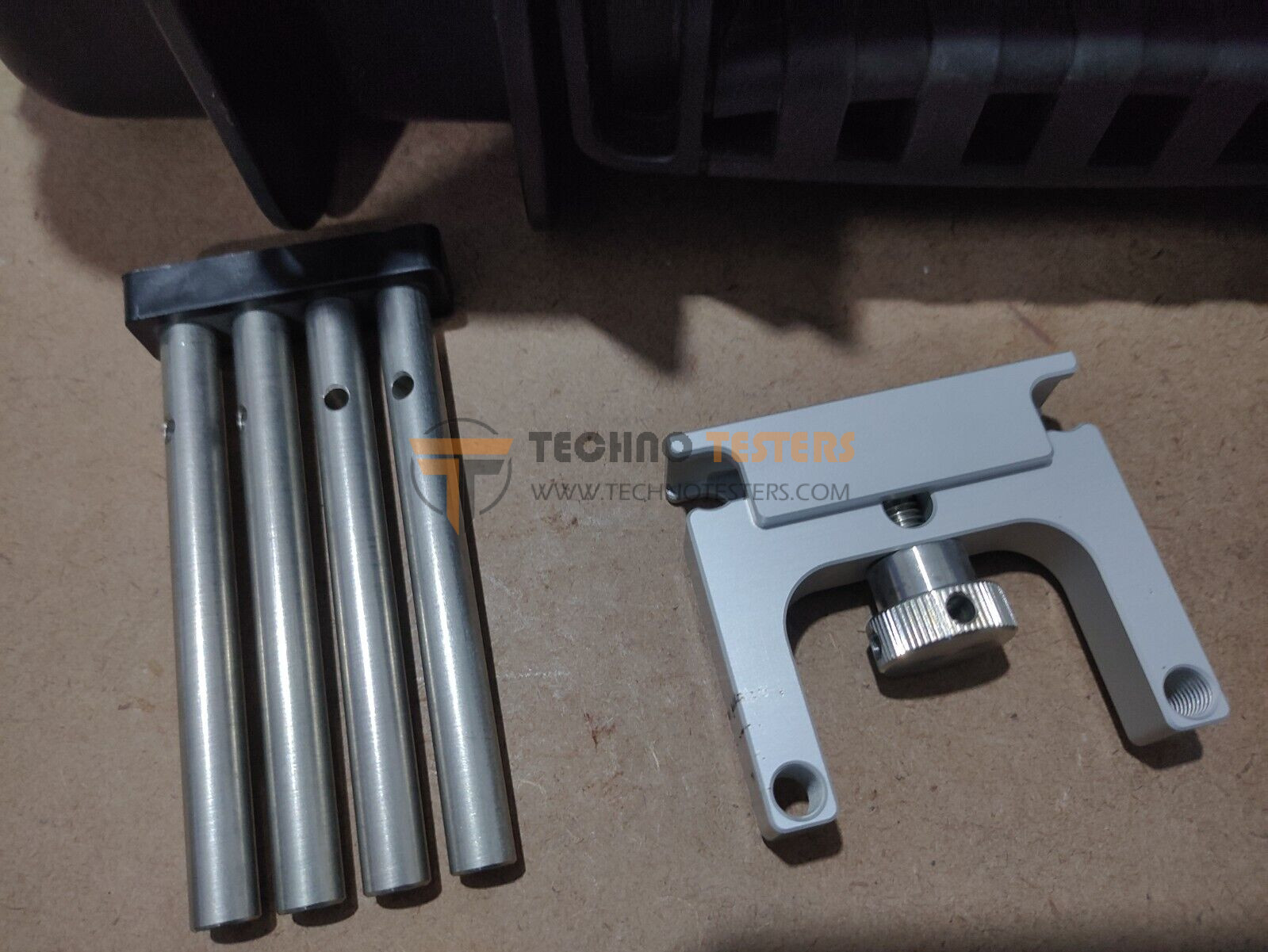

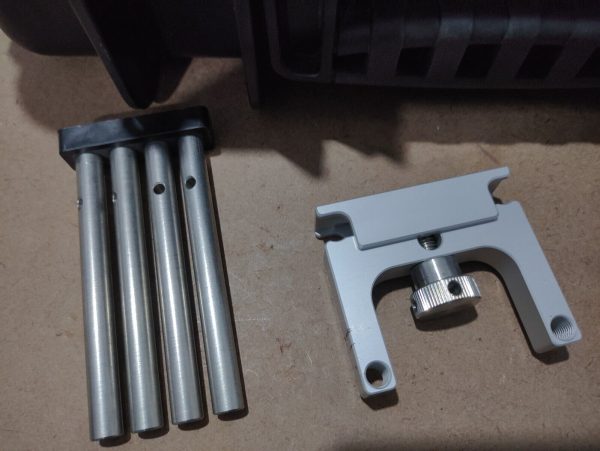

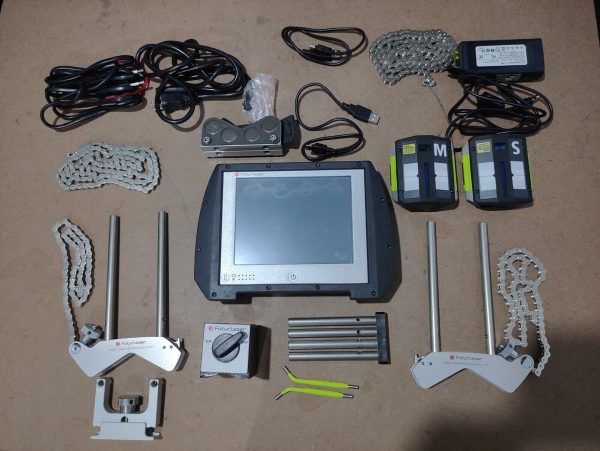

Shaft Brackets:

• Shaft diameter: Ø 20 – 450 mm (1 in – 6.9 in)
• Rods: 4 pcs 85 mm and 4 pcs 160 mm (extendable to 245 mm)
