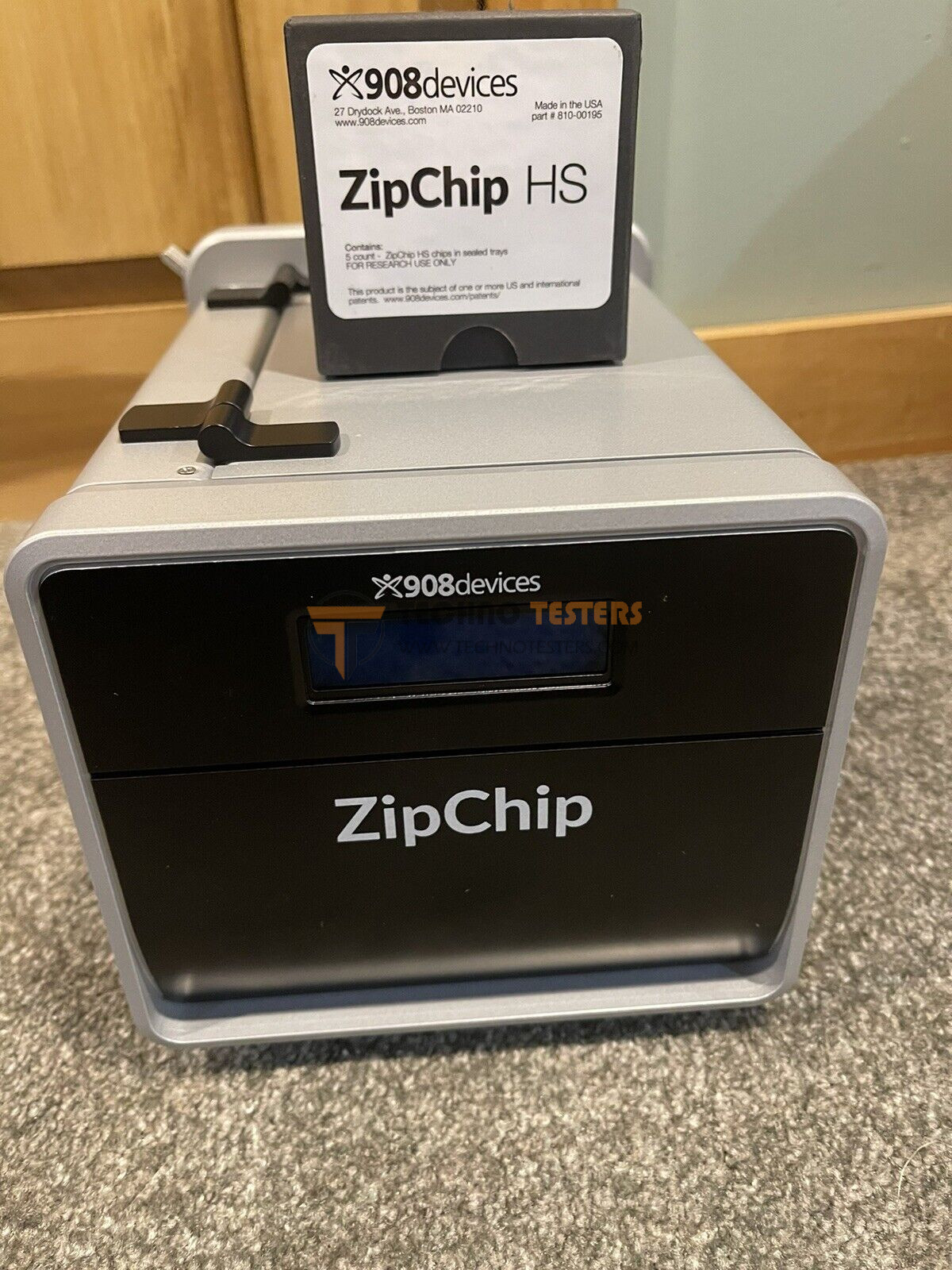

908 Devices ZipChip CE Mass Spectrometry System
ZipChipTM prepares, separates, and electrosprays biological samples straight into conventional mass spectrometers (MS) using integrated microfluidic technology. Cost-effective ZipChips evaluate a wide range of matrices, including growth media, cell lysates, blood, plasma, urine, and biopharma products, with little to no sample preparation. ZipChip provides information on a wide range of analytes, including complete proteins, small compounds, peptides, antibodies, and antibody-drug conjugates.

ZipChip separations, in contrast to liquid chromatography, are intrinsically nano. This implies that speed and sensitivity are not traded off, and you don’t have to be an expert to get the best results. With just nanoliters of material injected, ZipChip can usually provide excellent analyte separations in 3 minutes. A mass spectrometer can now study big molecules in their entire, near-native states and provide useful molecular information on each species found. ZipChip is a microfluidic device that completely combines electrospray ionization (ESI) with capillary electrophoresis (CE). This removes the “dead volumes” that are typical of conventional capillary-based techniques as well as failure-prone connections between distinct components. Fast separations are the end product, with no failure points, band broadening, or lost time.

HIGHLIGHTS
* Direct interface to traditional MS instruments
* Fast analysis: < 3 mins per samples
* Low sample volume injection, nL scale
* Minimal sample preparation, no de-salting
* Unique measurement capabilities: Antibodies and ADCs
* Autosampler for unattended operation

Interface Specifications
* Mounting Configuration: All Thermo Fisher Scientific Exactive, Q Exactive Orbitrap, and LTQ-Orbitrap MS instruments
* Dimensions: 8 in (h) x 8 in (w) x 11 in (d)
* Weight: 11.8 lbs
* Power Requirements: 110/240V
* Operation:
– Fully automated
– Push button start
* Software:
– ZipChip software for configuration of injection parameters
– Integration with Thermo Fisher Scientific Xcalibur software for data collection, processing and reporting

Autosampler Specifications
Sample Capacity:
– Fully automated
– Push button start

Sample Tray Cooling:
Integrated Peltier Cooling: Range: 4ºC to Ambient -3ºC (at relative humidity of 80% and ambient temperature of 25ºC)

Software:
– ZipChip software for configuration and set up of sequences and run parameters.
– Routines for automated chip priming and unattended operation
