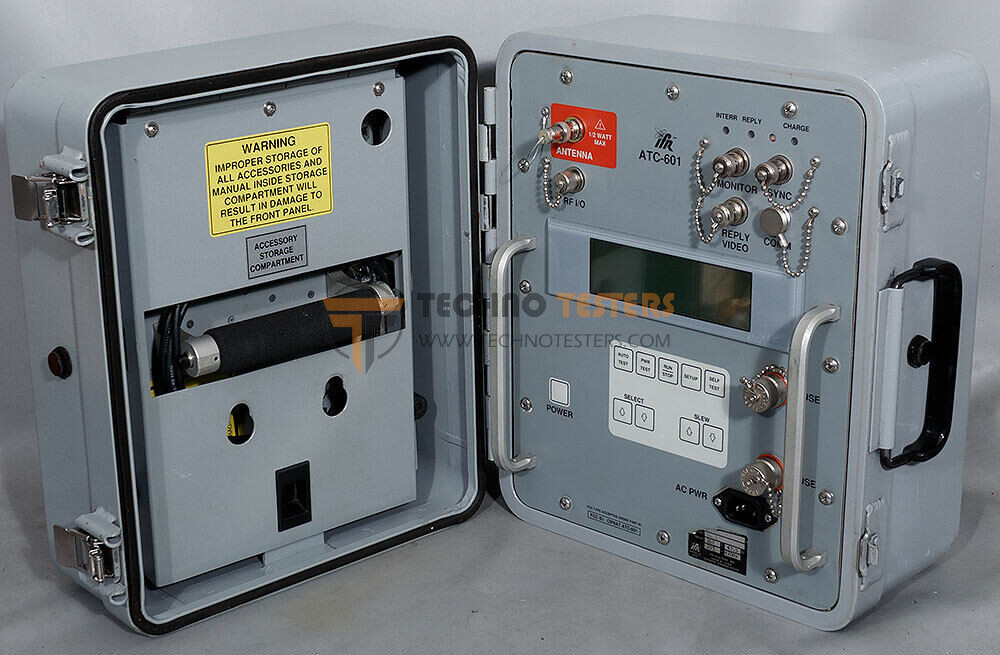

Viavi ATC-601 Transponder Ramp Test Set Mode S/A/C
The ATC-601 conducts the ATC transponder test for mode S, A, and C transponders as mandated by the updated Federal Aviation Regulations (91.172 and Part 43, Appendix F as amended March 4, 1987). Once the test has been commanded, the operator can verify and certify the operation/installation of Mode S/A/C transponders with little to no interaction thanks to the test set’s extensive “AUTO TEST” function, which is microprocessor driven. In addition to being insulated from stress and vibration during ramp testing, the ATC-601 is environmentally packed to function in any weather.

Key Features:
* Precise assessment of transponder sensitivity, output power, and transmission frequency
* For a small number of bench applications, reply video, RF I/O, monitor, and sync outputs are available.
* Transmit, Receiver, DTR, and CTS signals are all included in the Comm connection for line serial communications.
* A directional antenna mounted on a tripod allows for testing up to 300 feet away from the aircraft.
* Using an antenna boot to measure diversity
* Last test results are stored in the battery backup memory.
* Six lines by forty columns, backlit
* Environmentally sealed membrane keypad with nine keys
* Self-test, which confirms that the ATC-601’s main subassemblies are operating correctly.
* The battery must run for two hours before needing to be recharged.

Firmware Information:
* DSP Version: 1.00
* BOOT Version: 1.8.1
* MPU Version: 3.04C
* MON Version: 1.8.0

Specifications (UUT Measurements – Replies):

XMTR Frequency:
* Range: 1087 to 1093 MHz
* Accuracy: ±50 kHz
* Resolution: 10 kHz

XMTR Power:
Direct Connection – Peak Pulse Power:
* Range: +46.5 to +59 dBm (45 to 800 watts)
* Accuracy: ±1 dB
* Resolution: 0.1 dB

Effective Radiated Power (ERP):
* Range: +48.5 to +57 dBm (70 to 500 watts)

Squitter Delay:
* Range: 0.10 to 4.88 seconds
* Accuracy: ±10 ms

Diversity Isolation:
* Range: 0 to >20 dB (depending on antenna range)
* Accuracy: ±3 dB

Receiver Sensitivity:
Direct Connection – Minimum Triggering Level (MTL):
* Range: -67 to -79 dBm
* Accuracy: ±2 dB

Radiated Field Strength (MTL):
* Range: -69 to -77 dBm into 0 dBi antenna (-77 dB W/m2 to -85 dB W/m2)

Physical Characteristics:
Power:
Battery Operation:
* Duration: > or = to 2 hours before recharge @ 25°C
* Automatic Shutoff: 103.5 to 129/207 to 230 VAC, 47.5 to 420 Hz, 30 watts (used to recharge battery)

AC Input:
* Dimensions: 28.4 cm (11.2″) wide, 36.1 cm (14.2″) deep, 27.9 cm (11.0″) high – does not include packaging
* Weight: 66 kg (30 lbs.) approx. – does not include packaging
