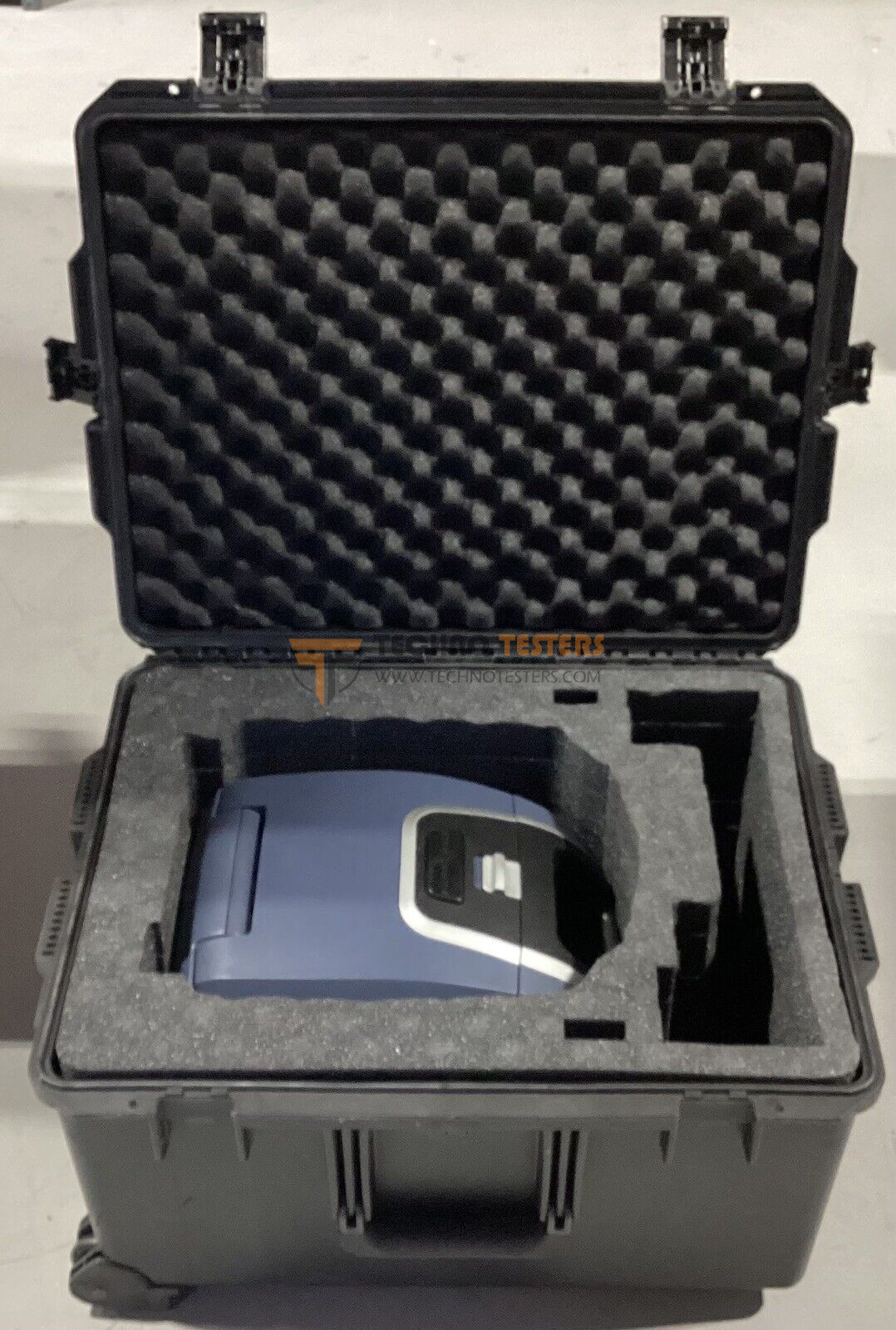

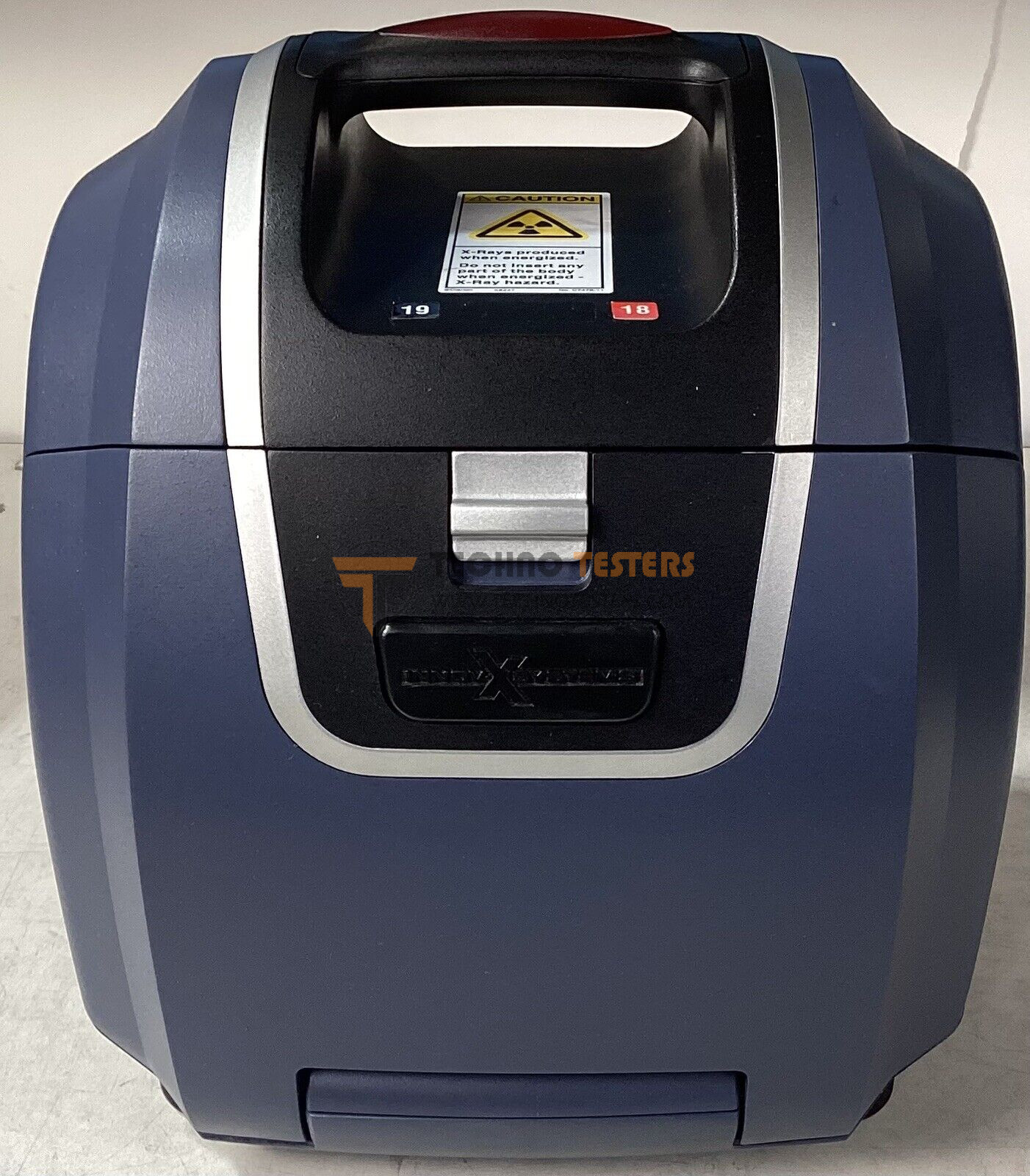

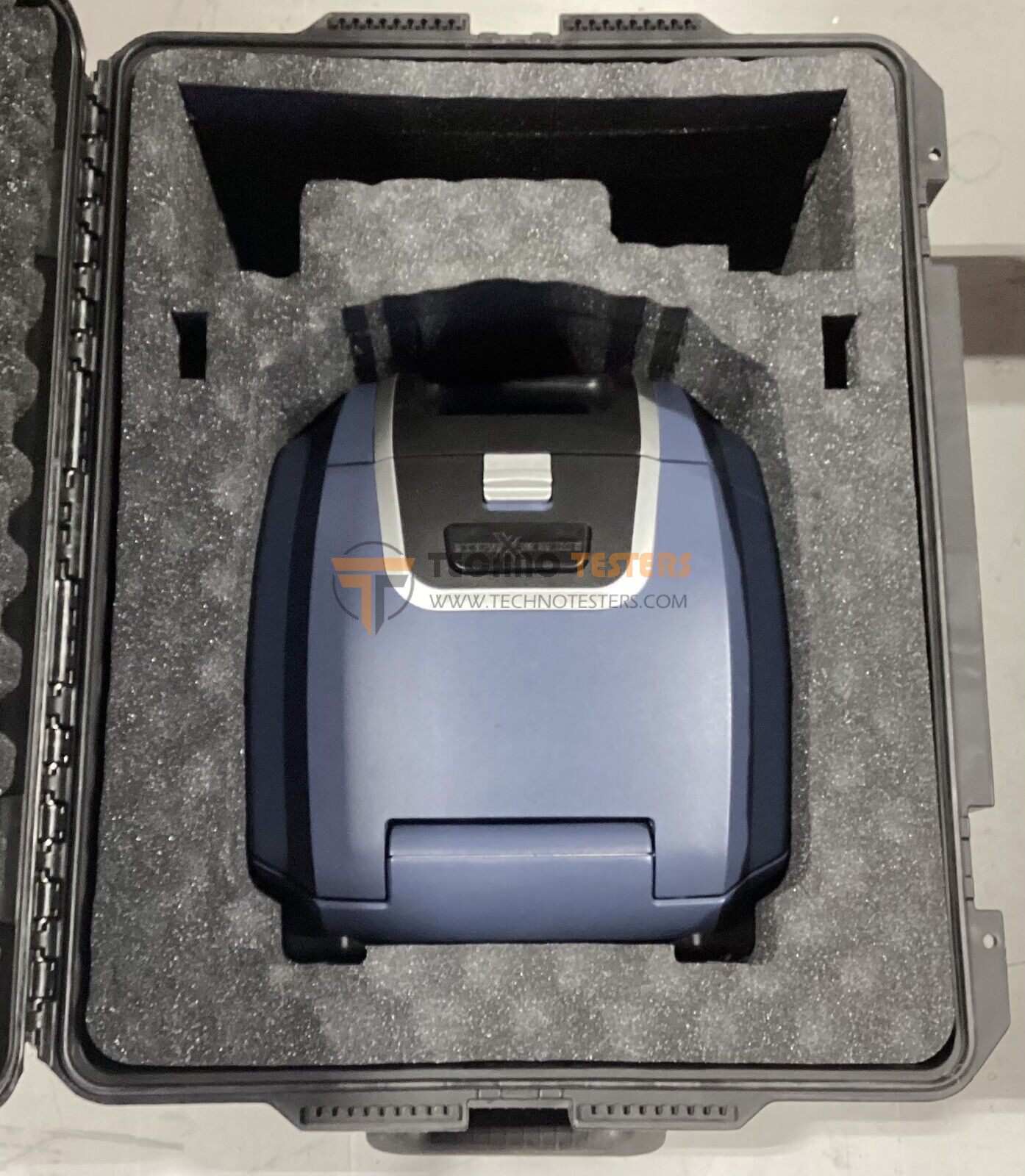

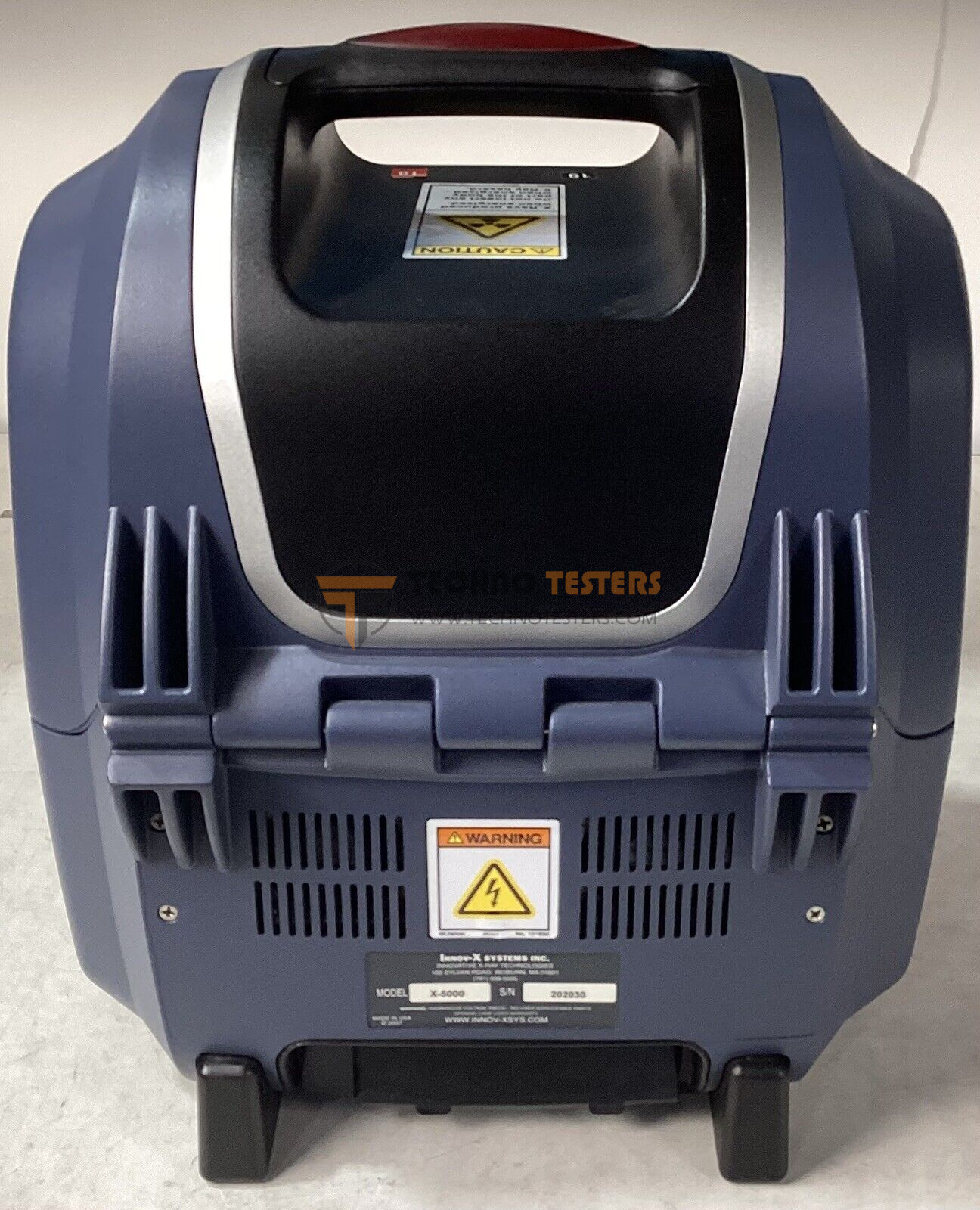

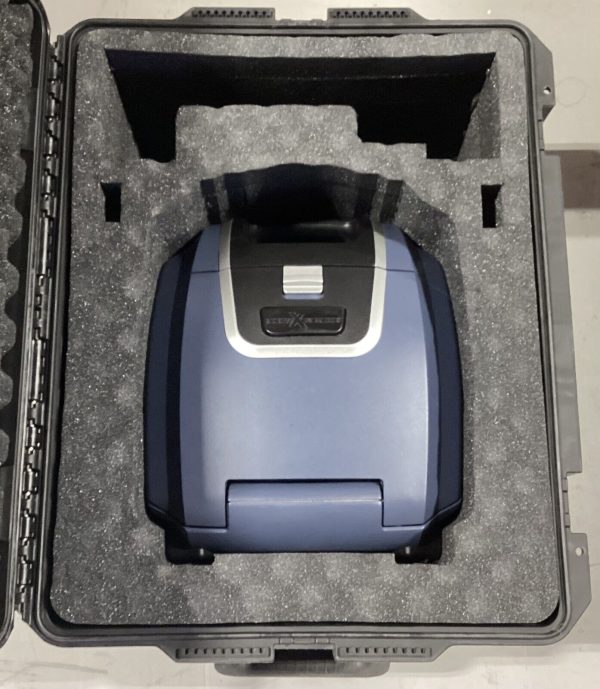

Used Innov-X Mobile X-5000 XRF Analyzer For Sale

A robust, fully integrated closed beam XRF system is the X-5000. For testing while on the go, it combines the functionality and strength of a conventional benchtop EDXRF with easy-to-use industrial-grade touch screens. The battery-operated, ergonomically designed X-5000 delivers vital answers when and where they are needed.

Upstream, midstream, downstream, oil field service, and environmental sustainability applications are all served by the X-5000. It makes it possible to analyze wear metal oils, additives, and crude and refined fuels. Additionally, it makes it easier to screen for harmful metals in waste, silt, sludge, runoff streams, and soils. It is a quick and adaptable substitute for time-consuming and expensive conventional laboratory testing procedures.

Key Applications

• ASTM D4294 Analysis of Sulfur
• Testing Unused Lubricating Oils for Ca, P, Zn, S, Mo, and Mn ASTM D6481
• Fe, V, Pb, Cr, Cu, Sb, Sn, Mo, Ti, Ni, and Cd Wear Metals Monitoring
• The amount of sulfur at well drilling locations
• Testing for Arsenic and Mercury Contamination in Tank Bottom Sludge
• Screening for RCRA and Other Pollutant Metals in Runoff Streams, Soils, and Sediments

Detection Limits with a silver anode X-ray tube

Element: Arsenic As, Antimony Sb, Cadmium Cd, Calcium Ca, Chlorine Cl, Chromium Cr, Cobalt Co, Copper Cu, Iron Fe, Lead Pb, Manganese Mn, Molybdenum Mo, Mercury Hg, Nickel Ni, Phosphorus P, Selenium Se, Sulfur S, Tin Sn, Titanium Ti, Vanadium V, Zinc Zn.

Onboard PC Operation

• In every analysis setting, the X-5000 is fully controlled by the onboard PC.
• A simulated keyboard on a large screen.
• Color touch screen that has been field-hardened. 20.9 cm by 15.9 cm, 8.25″ x 6.13″
• An intuitive interface for data analysis.
  – Spectral overlay
  – Easy peak identification
  – Elemental concentrations with RSD

X-5000 Specifications

• 50kV, 200μA X-ray tube
• Anode-optimized silver X-ray tube for use in soil, liquid, and oil
• High-resolution Silicon Drift detector with a proven, field-rugged package that provides <165eV resolution (FWHM Mn K-alpha line)
• Durable, injection-molded, sealed test platform and carrying case
• Strong Pentium CPU, field-hardened, sealed color touchscreen, and incorporated Windows XP
• Several types of analysis, such as Spectral Matching, Empirical Calibration models, Compton Normalization, and Fundamental Parameters
• Primary beam filters with six positions for best results throughout the periodic table
• Platform example with interlocking testing cover
• An optional three-hour lithium ion battery pack (normal duty cycles) or AC power
• Total weight: 20 lbs/9 kg
• Dimensions (approximate): 12” x 13” x 8” (30 x 33 x 20 cm)
• Sample chamber dimensions: 12” x 8” x 5” (30 x 20 x 12.5 cm)
