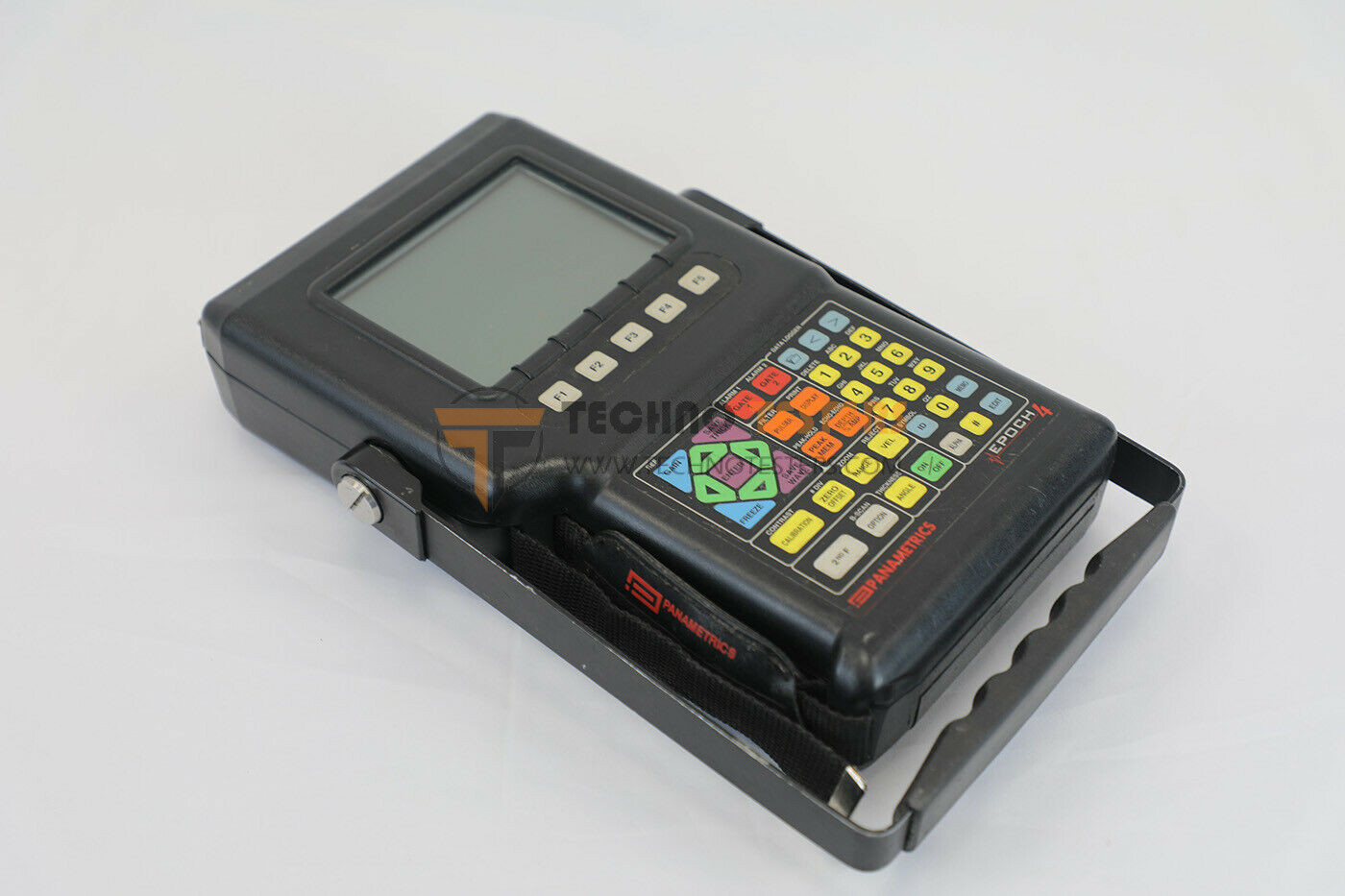

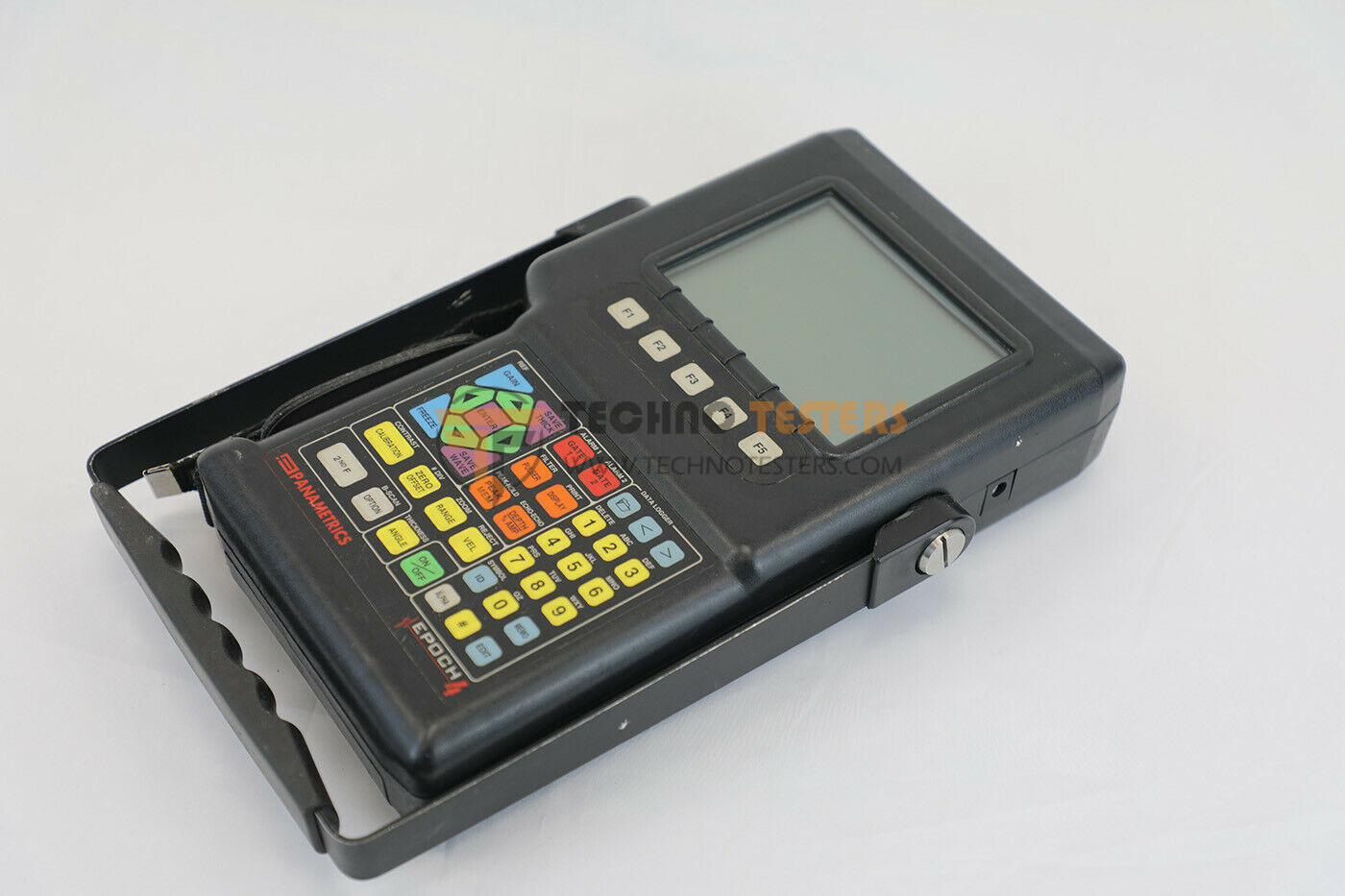

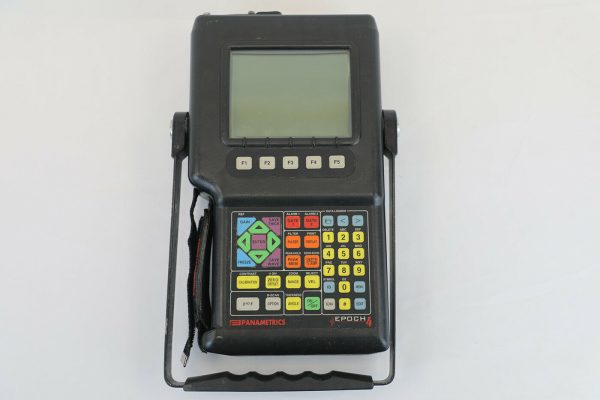

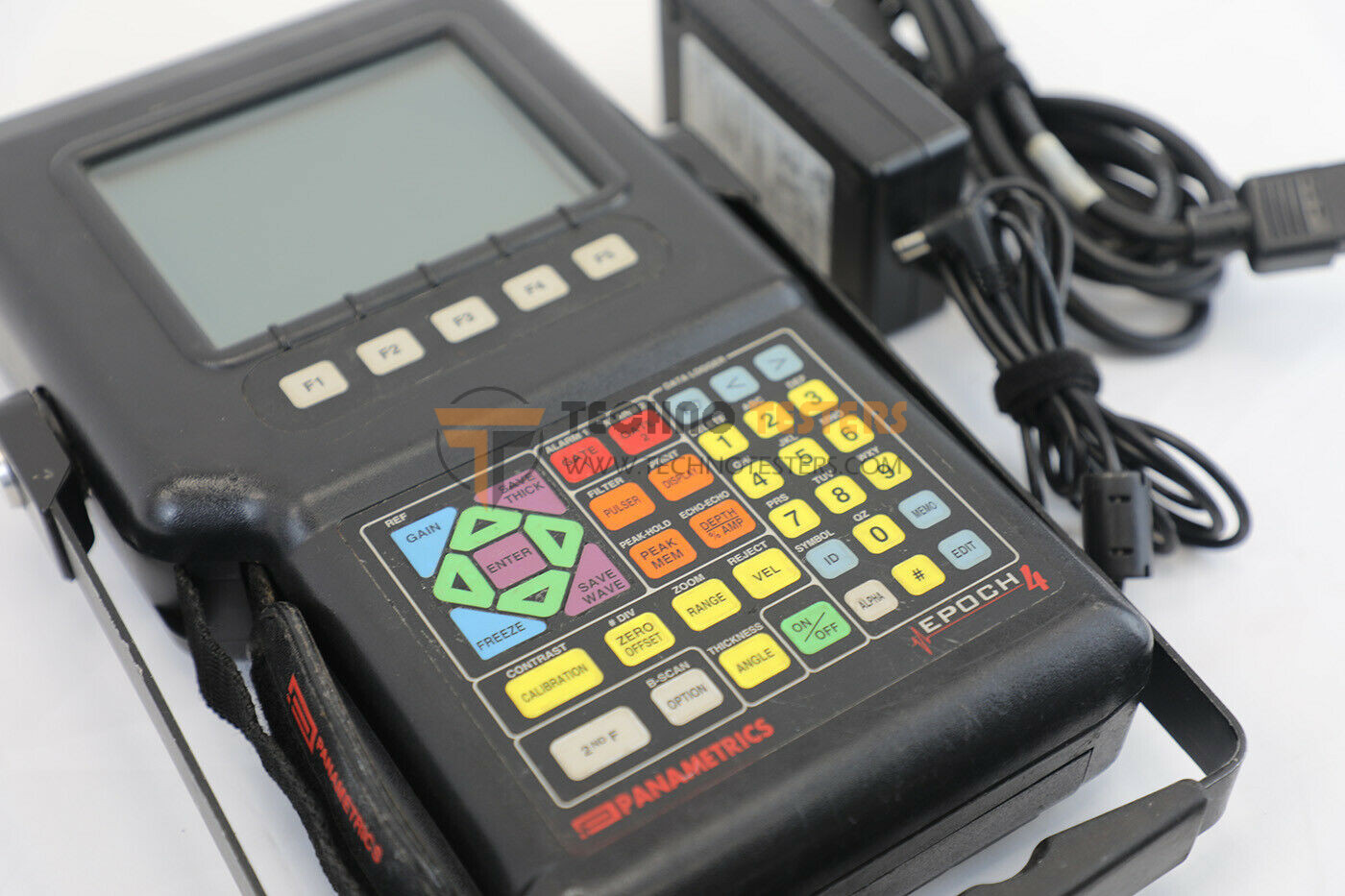

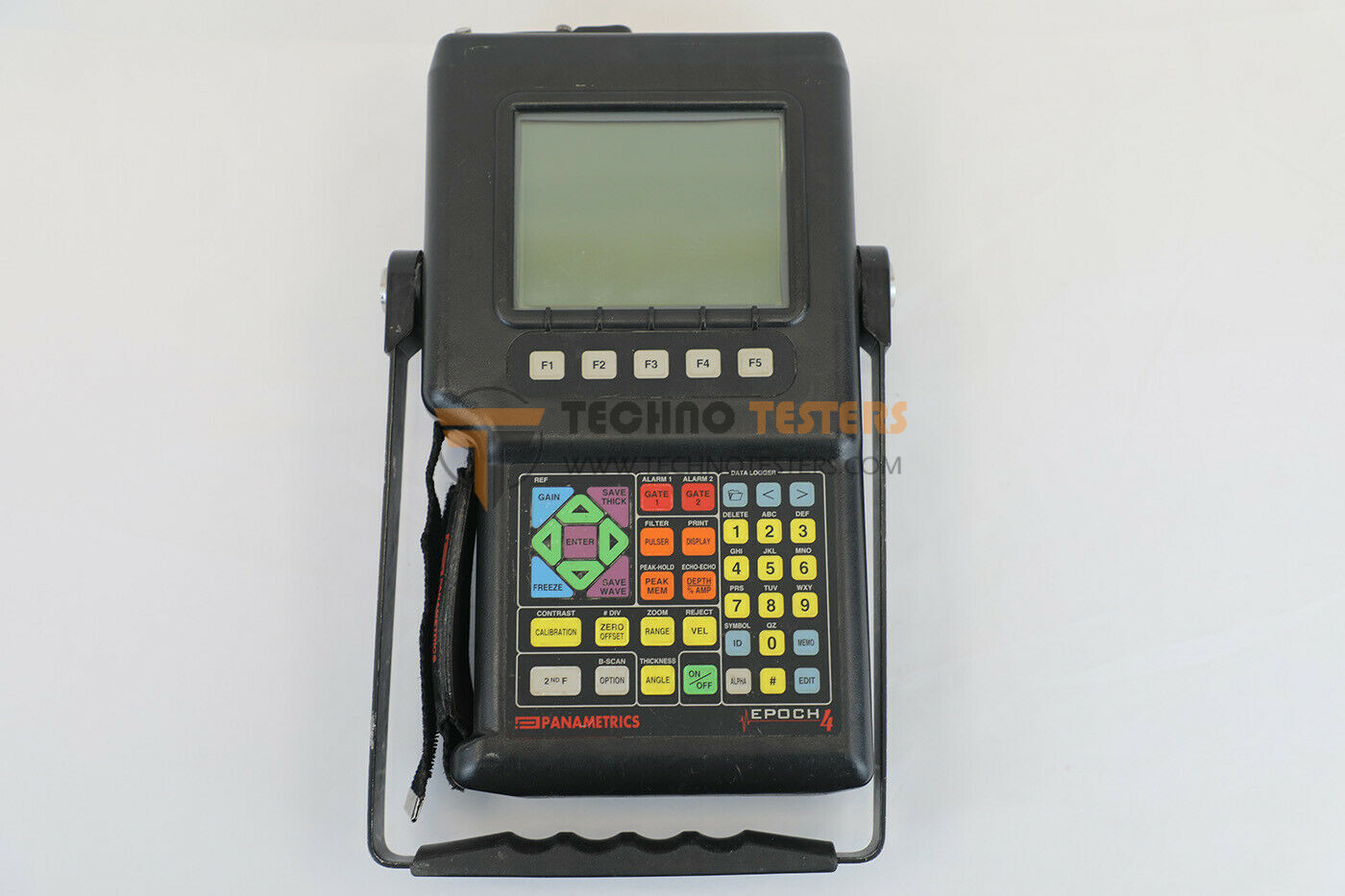

Olympus Epoch 4 Ultrasonic Flaw Detector
The Panametrics-NDT EPOCH 4 is an advanced digital ultrasonic flaw detector that combines powerful full-featured measurement capabilities, a comprehensive internal data logger, and a wide range of software options to solve many challenging inspection problems. Signal processing capabilities include 25 MHz bandwidth to enable testing of thinner materials, a selectable square wave pulser to optimize penetration of thicker or attenuating materials, and narrow band filters to improve signal to noise in high gain applications. The EPOCH 4 features a rugged housing, a conveniently located direct access keyboard, and a choice of high resolution LCD or electroluminescent displays.

FEATURES:
– Customizable narrowband filtering
– Selectable, tunable square wave or negative spike excitation pulser
– Light, ergonomically designed (5.7 lbs / 2.6 Kg)
– Fast minimum 60 Hz electronics update rate
– High-power NiMH battery
– Large, bright, high-resolution ELD or LCD with full/split screen views
– Automated transducer calibration
– 400″ (10,000 mm) full screen range at longitudinal velocity of steel
– Superior minimum range capability (0.038″ or 1 mm full scale at longitudinal velocity of steel)
– Display Freeze holds waveform and soundpath data
– Soundpath data viewable in inches, millimeters, or microseconds
– Peak Hold and Peak Memory
– RF display mode
– Alarms, threshold positive/negative, or minimum depth
– Dual Gate with Echo-to-Echo measurements
– Security Key enables remote upgrade of software options

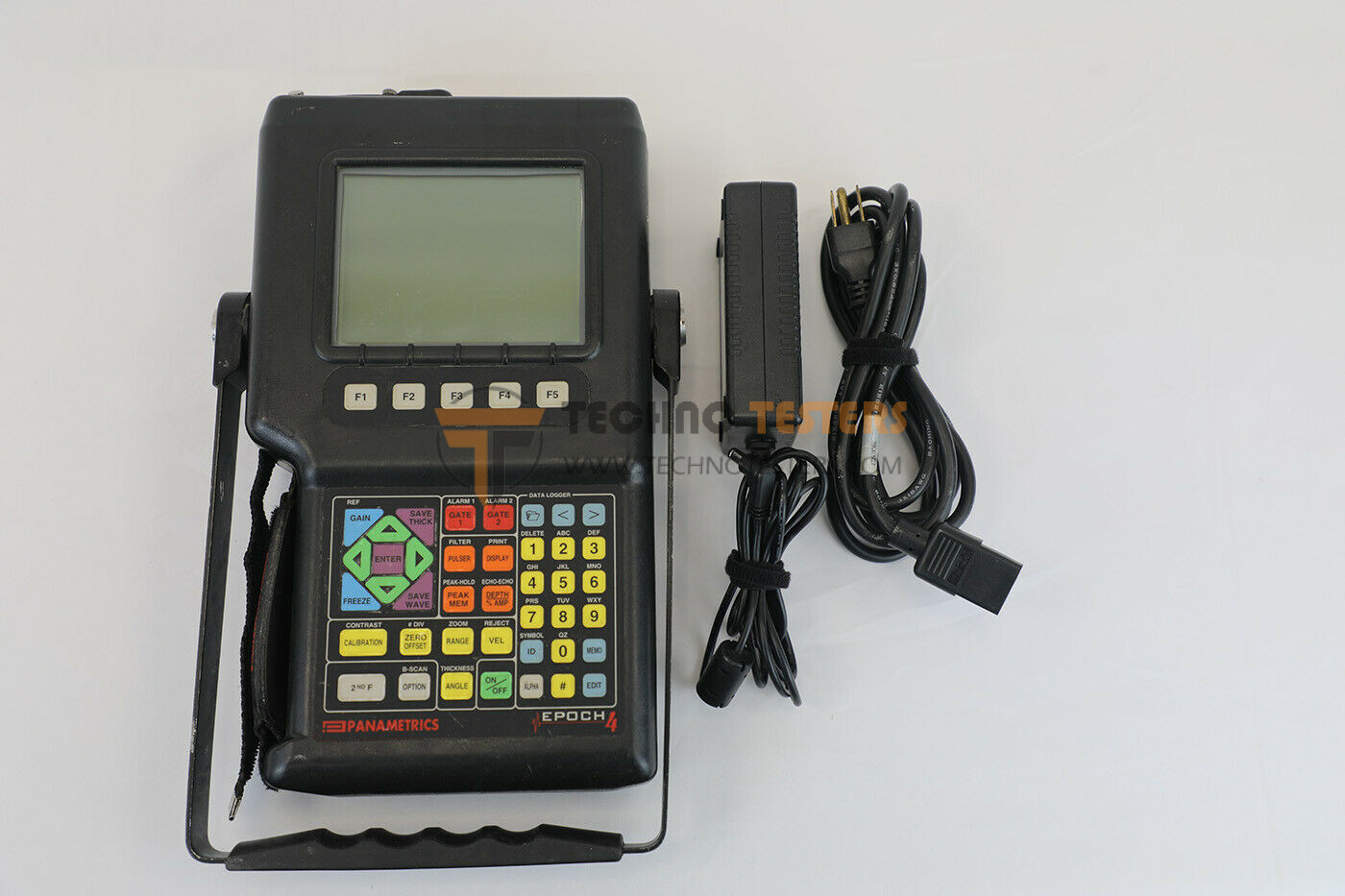

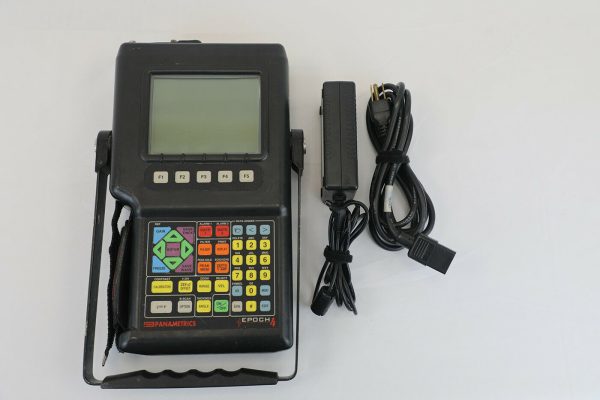

Included:
– Epoch 4 Unit
– Charger
– Battery
