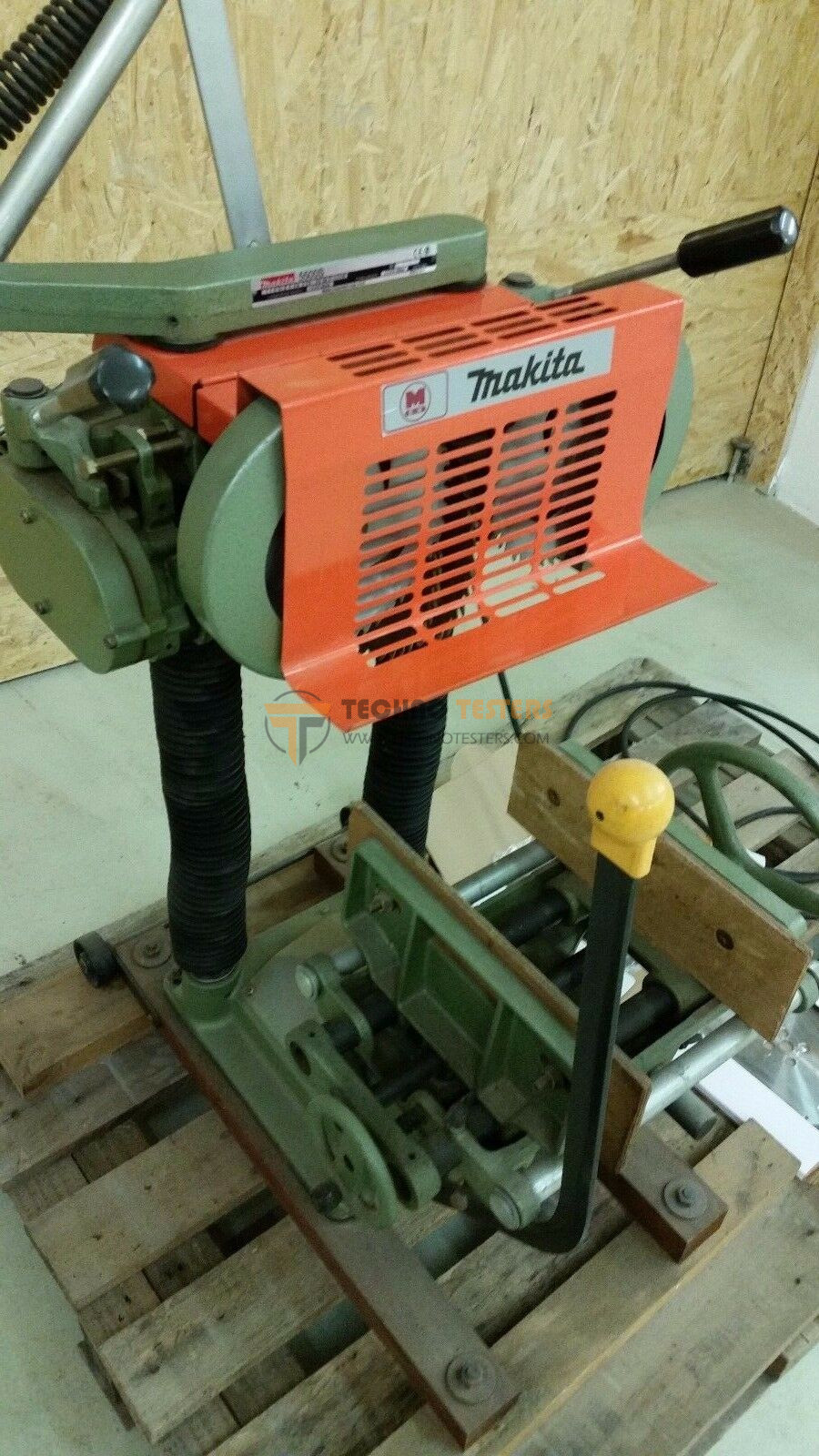

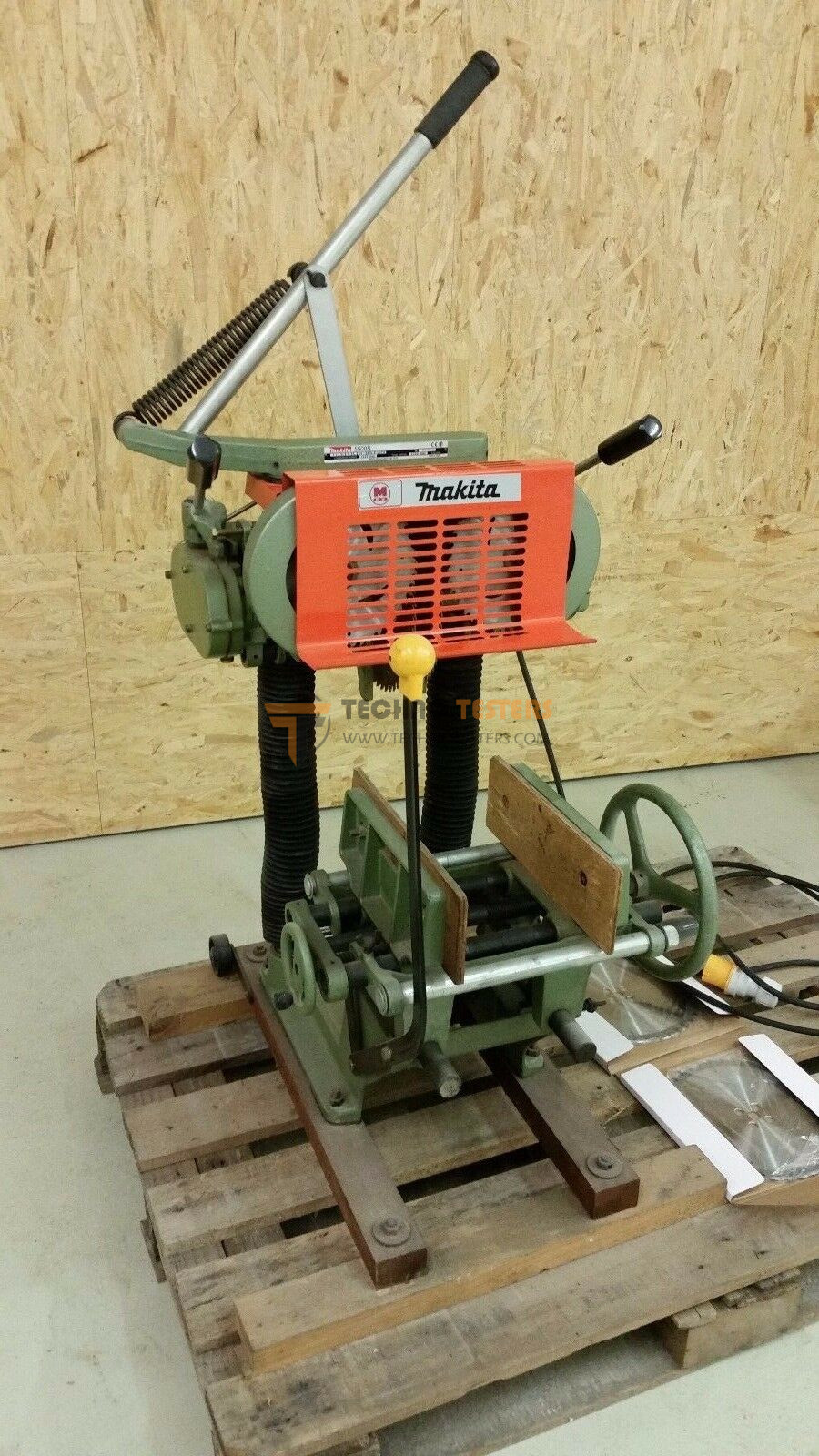

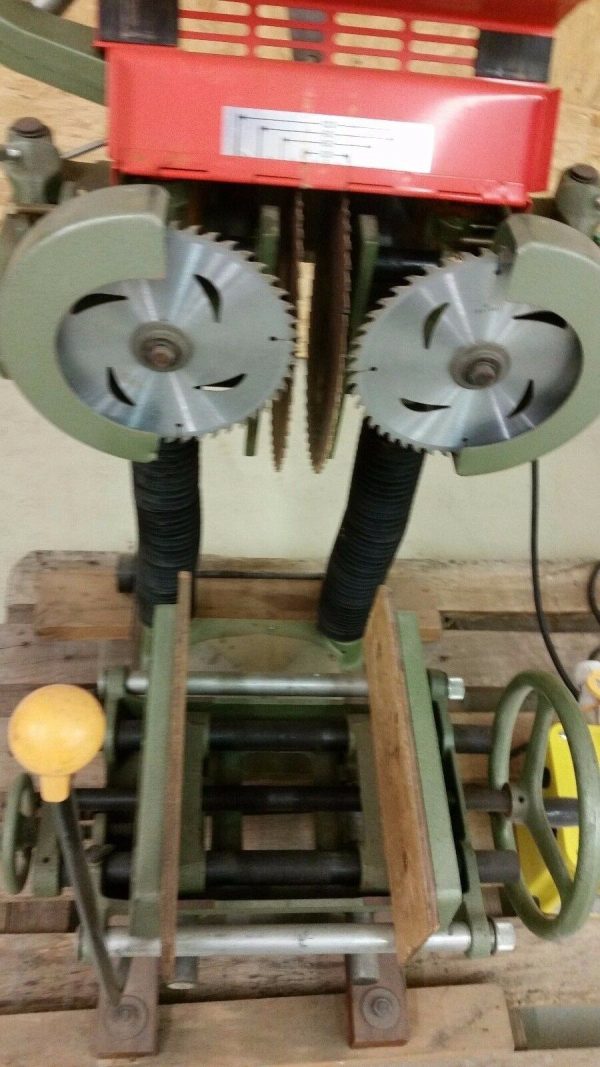

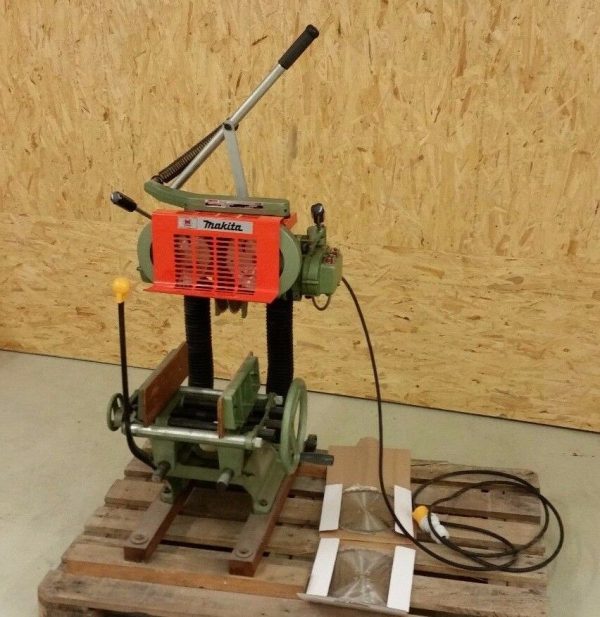

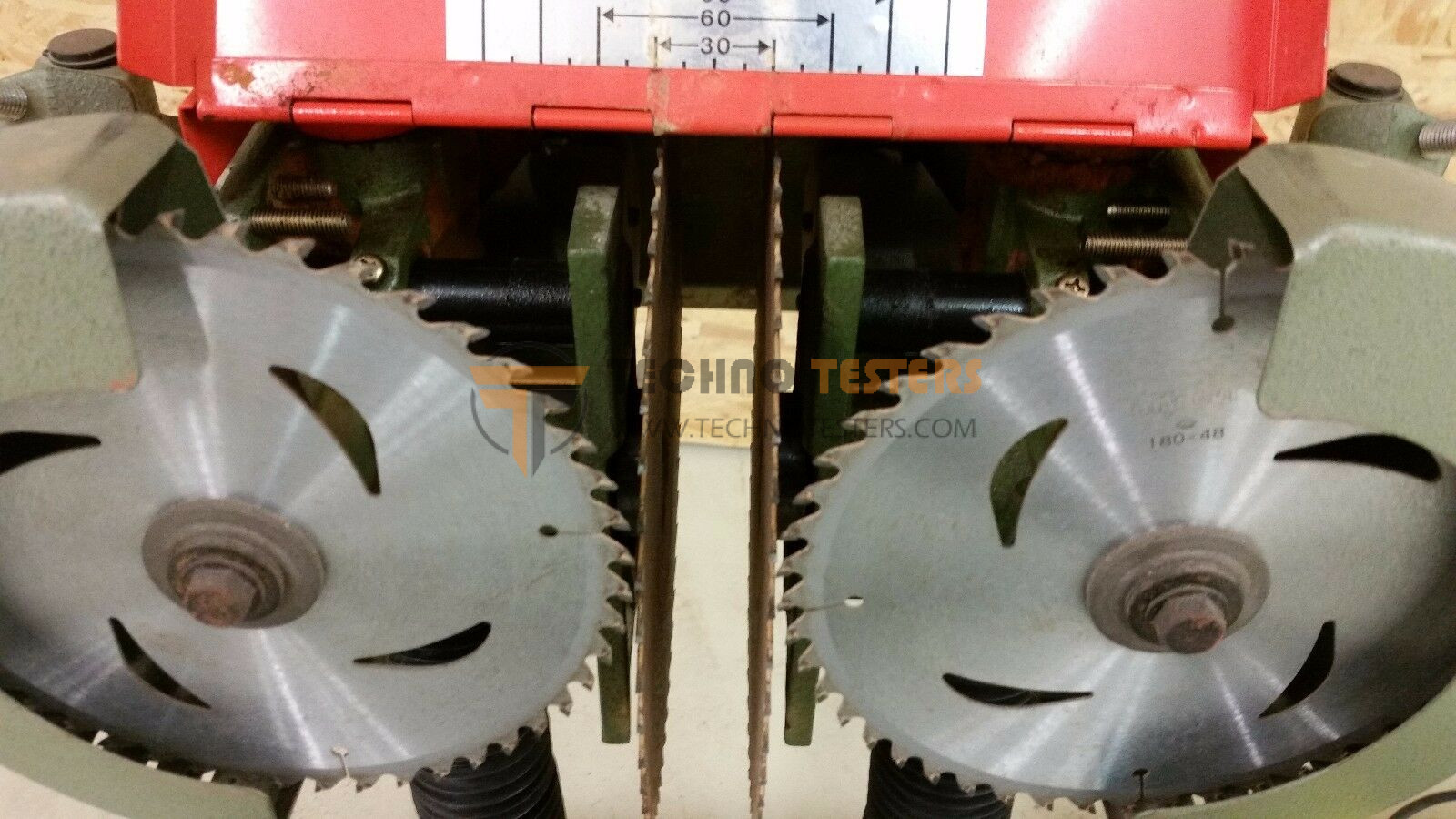

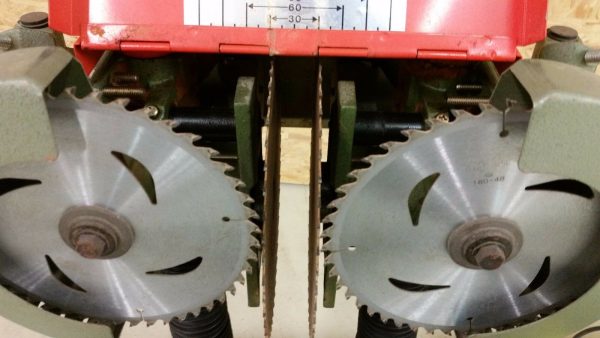

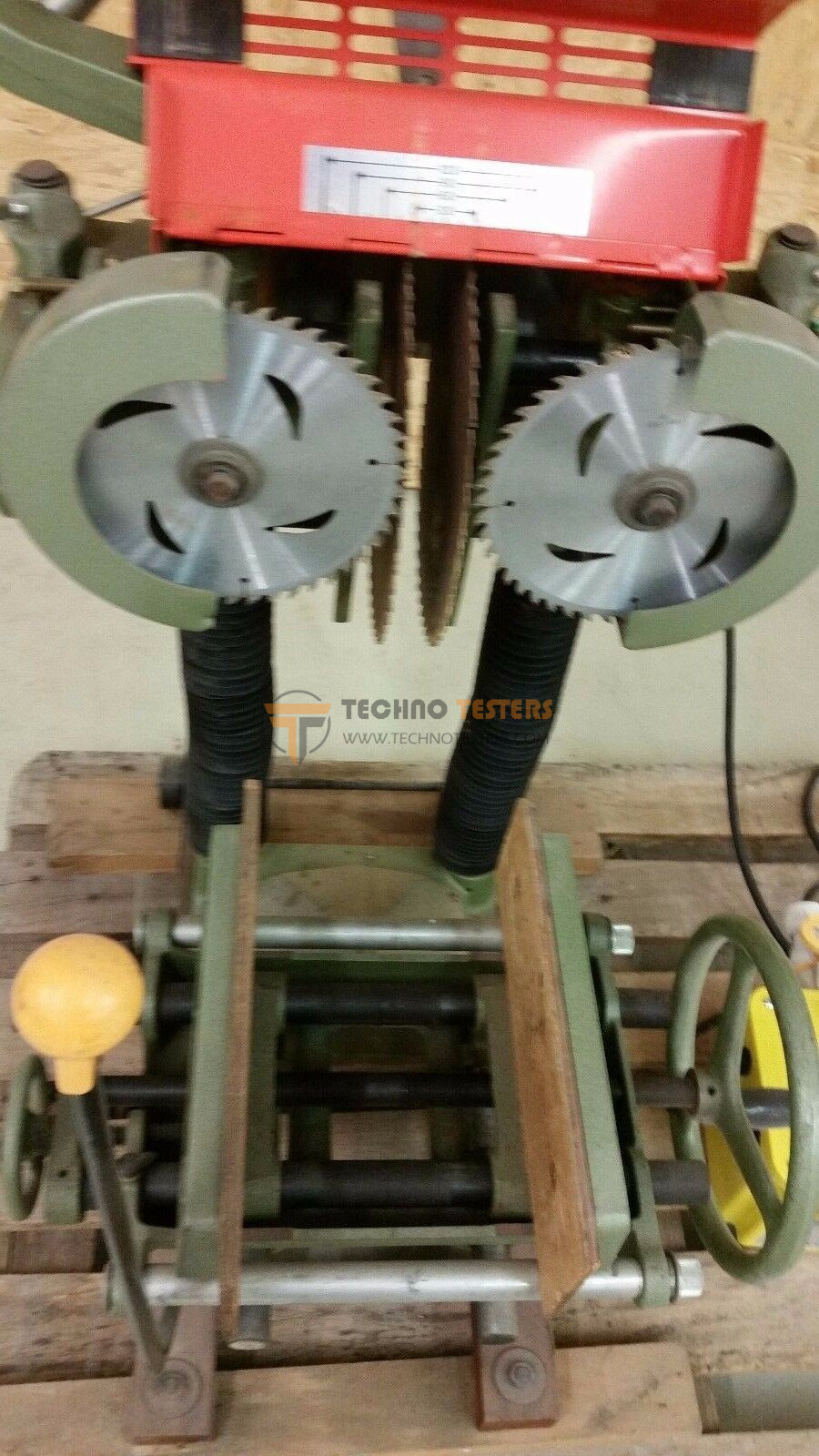

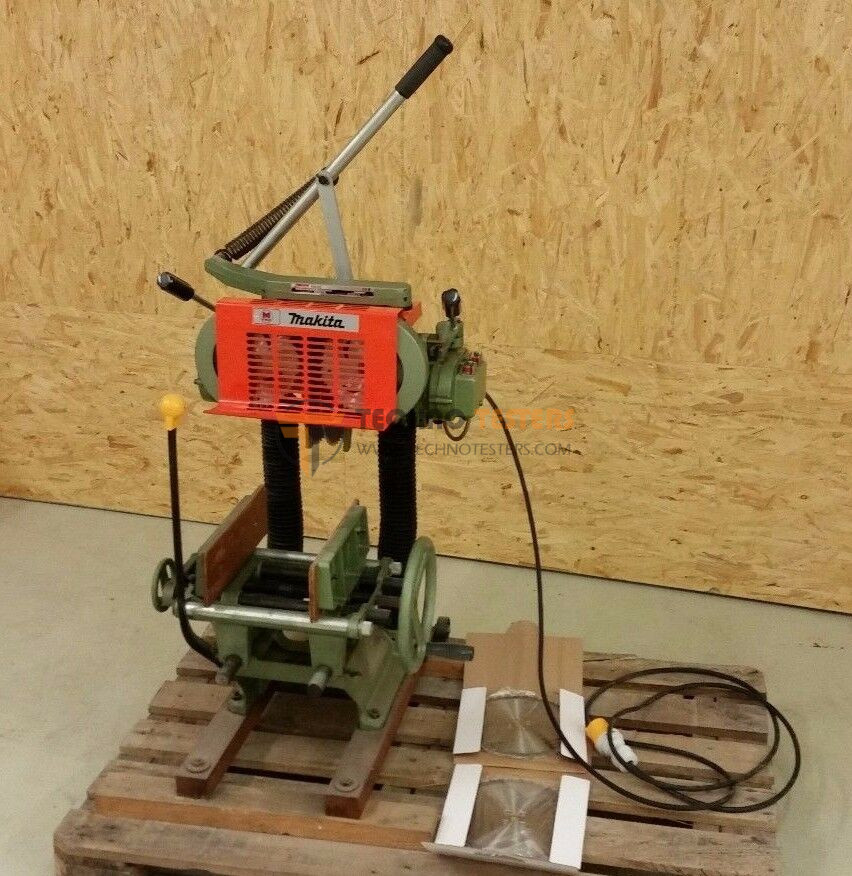

The Makita Tenon Cutter is in good condition and working order,including 2 new Blades
Conception and main applications:
Model 5500S is a smal and light Tenon Cutter
suitable for machining 90mm or shorter material.
Features of this model are: high cost perfommance,
electric motor drive, high cutting performance and
good operability.
Capacity:
Vice width 45 to 210 mm
Vice Lateral movement Right/ 20mm, Left/ 45mm for 120mm wood
Vice lengthwise movement 80mm
Max. vertical cutting 92mm
Max. Lateral cutting 68mm
Saw opening (tenon width) 0 to 130
Max. tenon hight 240mm (lateral blade: 240mm, vertical blade: 155mm)
Max. cut-off width tenon 135mm
Outer dimensions 560W x 620L x 810H mm
Volt 110
Weigt 68kg
