GSSI Ground Penetrating Radar, GSSI Survey Cart Model 643 + GSSI 400 MHz Antenna Model 50400S

Product 2 of 2, ANTENNA: GSSI 50400S Antenna in mint-like condition (typical wear on skid plate); terminal threads and pins excellent condition.

Typical Uses:
Underground utility detection
Environmental remediation
Damage prevention
Geological investigation
Archaeology
Forensics
Road inspection
Summary:

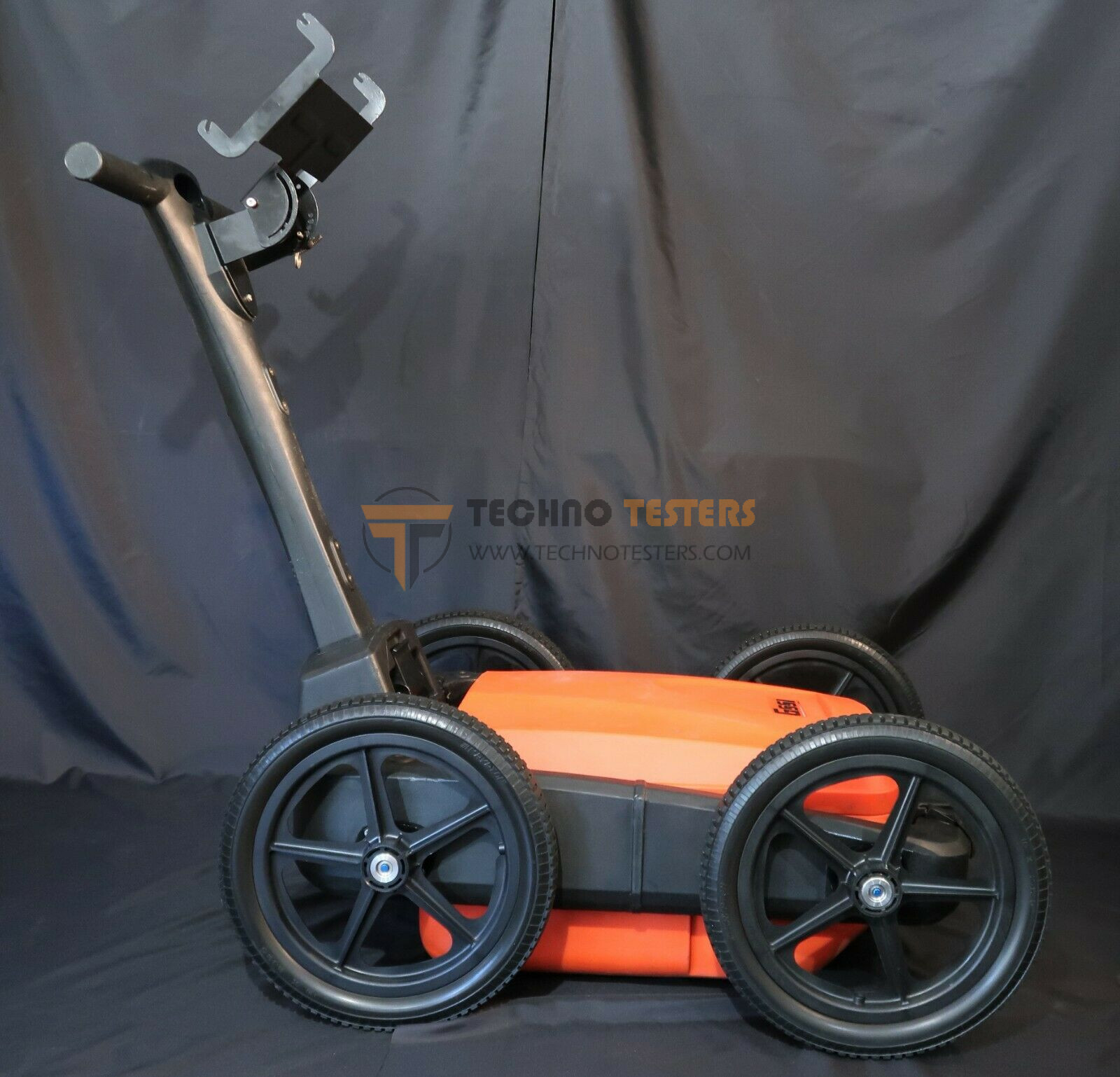

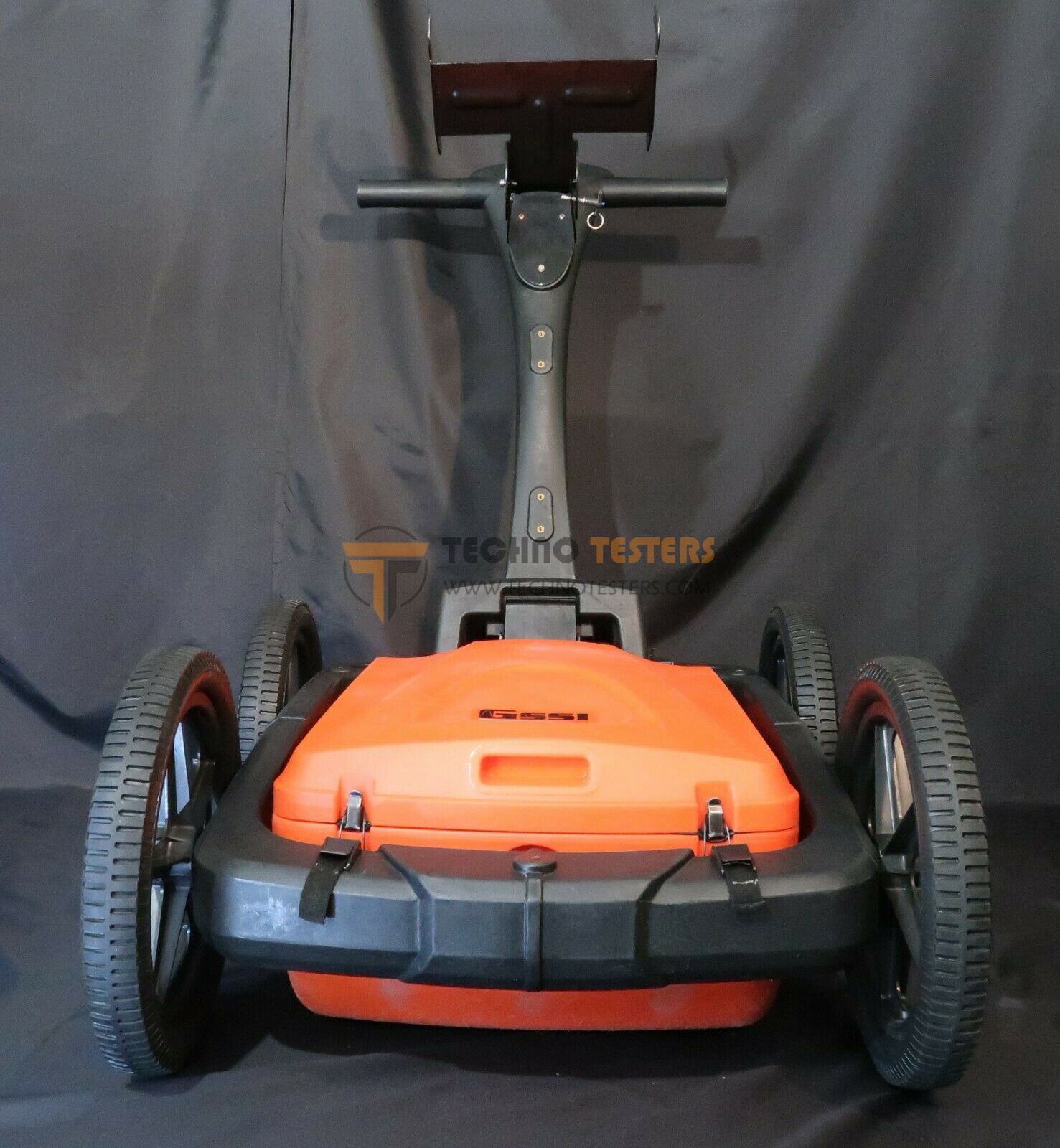

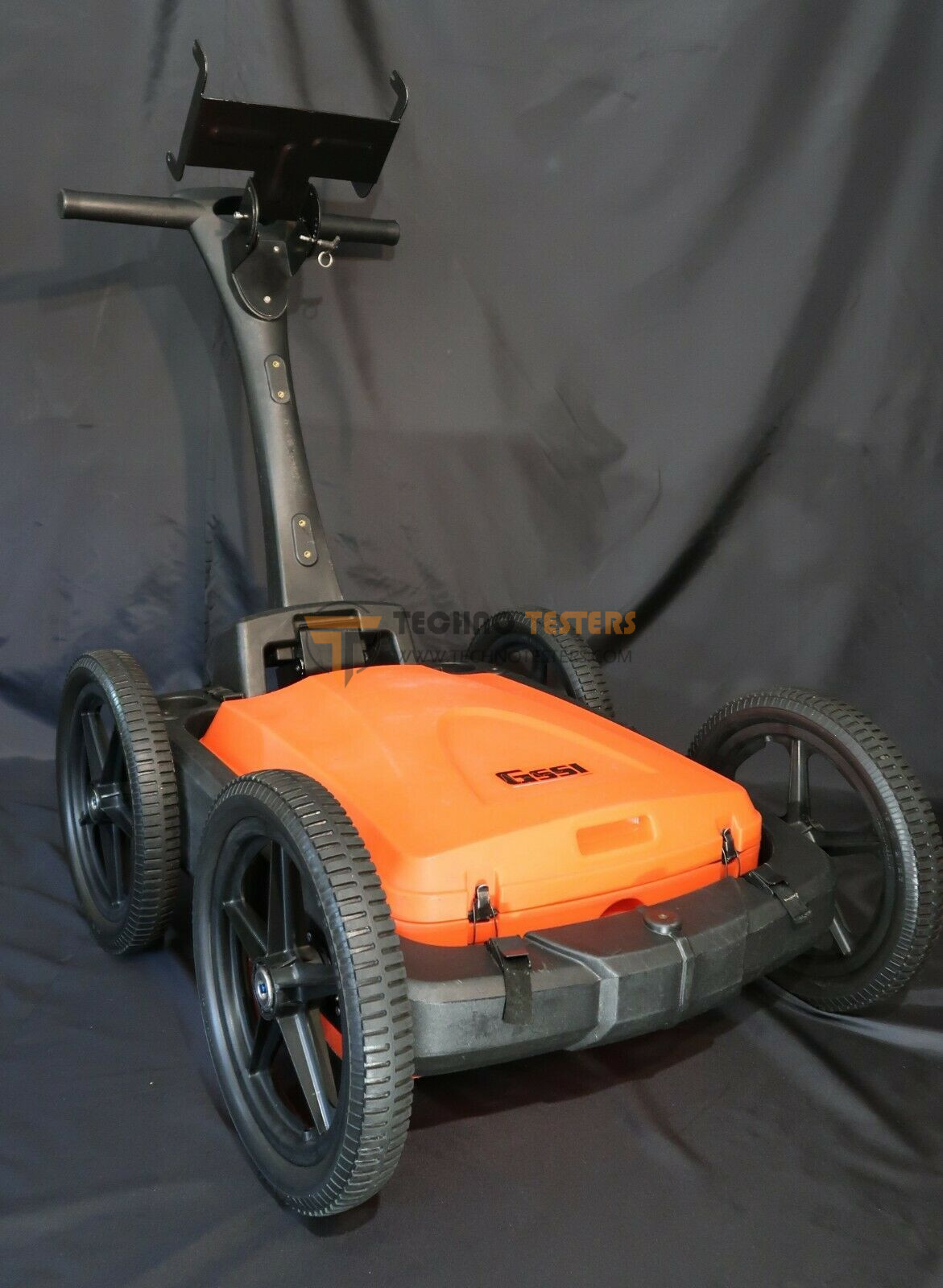

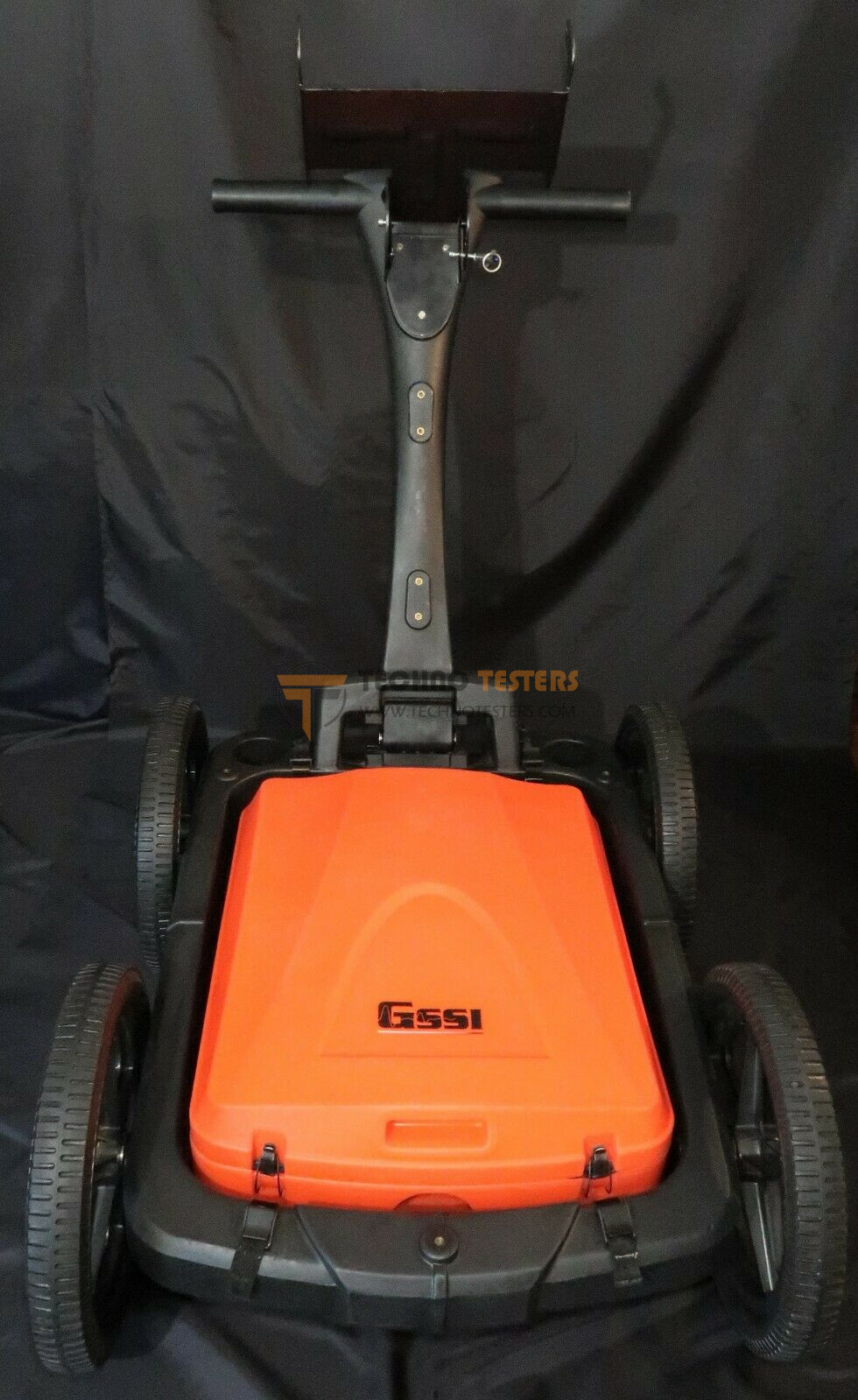

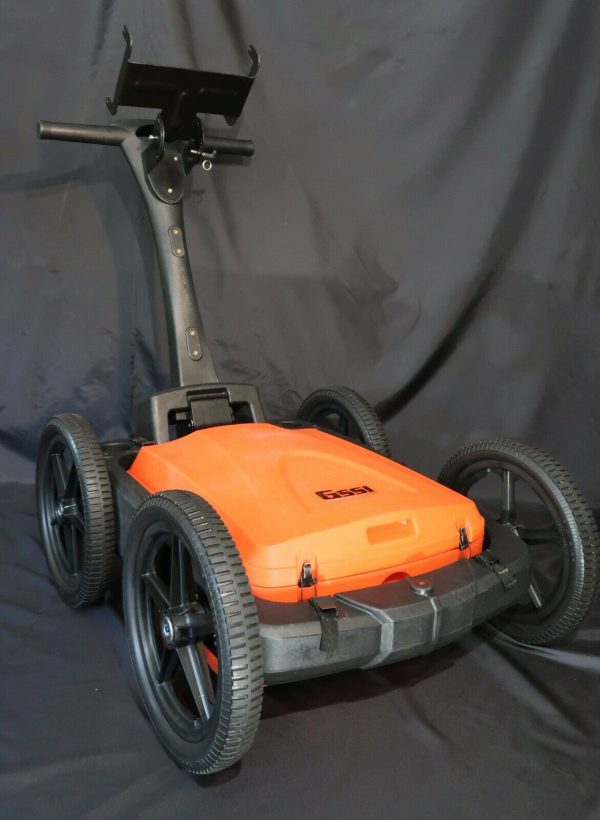

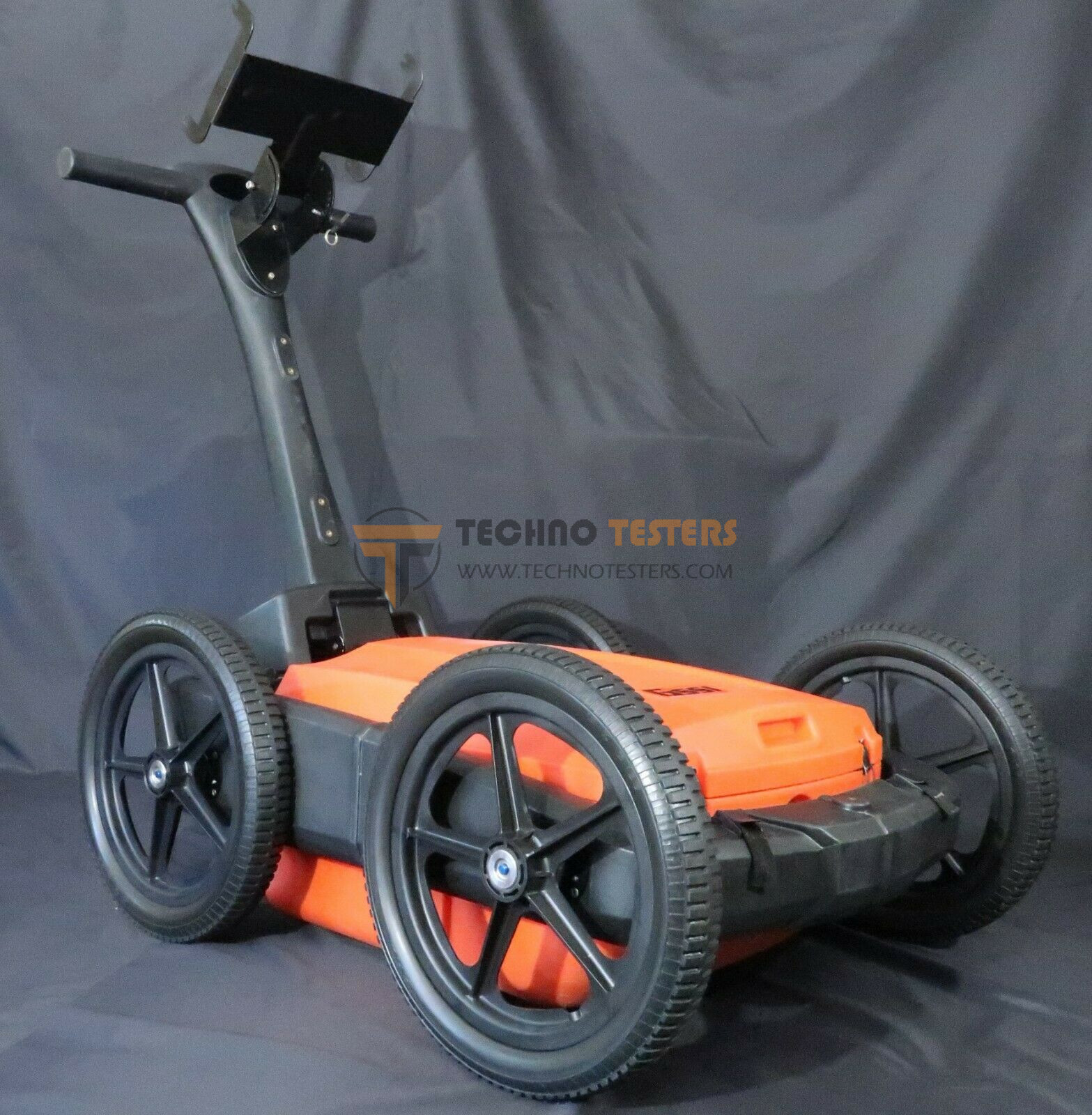

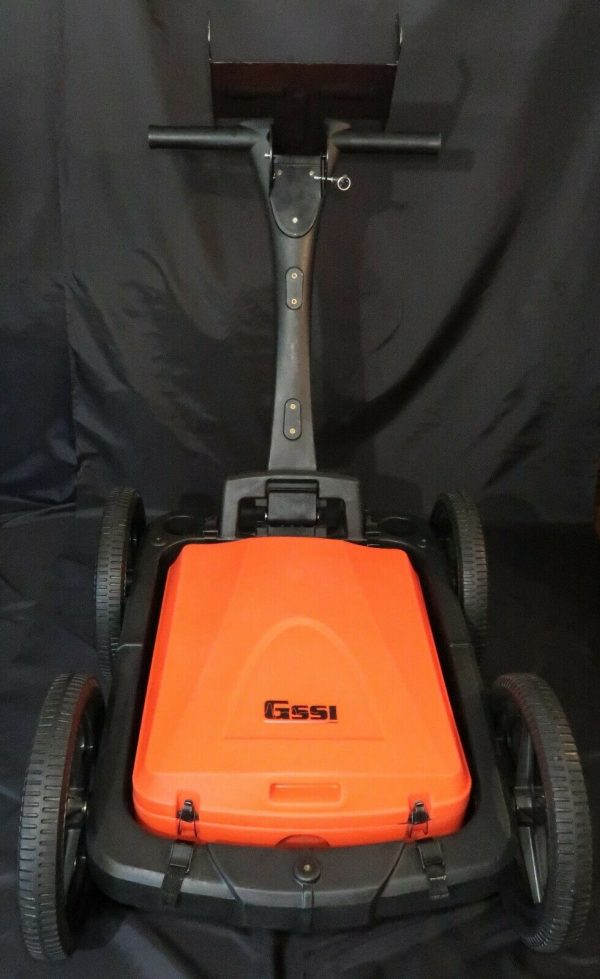

Mobilizing your system on the GSSI Model 643 survey cart allows you to cover ground much more easily and conveniently than with the conventional system configuration. The cart can accommodate the 270 MHz, 400 MHz, 900 MHz, 1 GHz, 1.6 GHz, and 2.6 GHz antennas. The 643 cart incorporates a unique antenna capsule design that protects these antennas from the elements and renders the antennas weatherproof. It also incorporates a survey wheel for high-precision distance measurements.

GSSI Antenna:

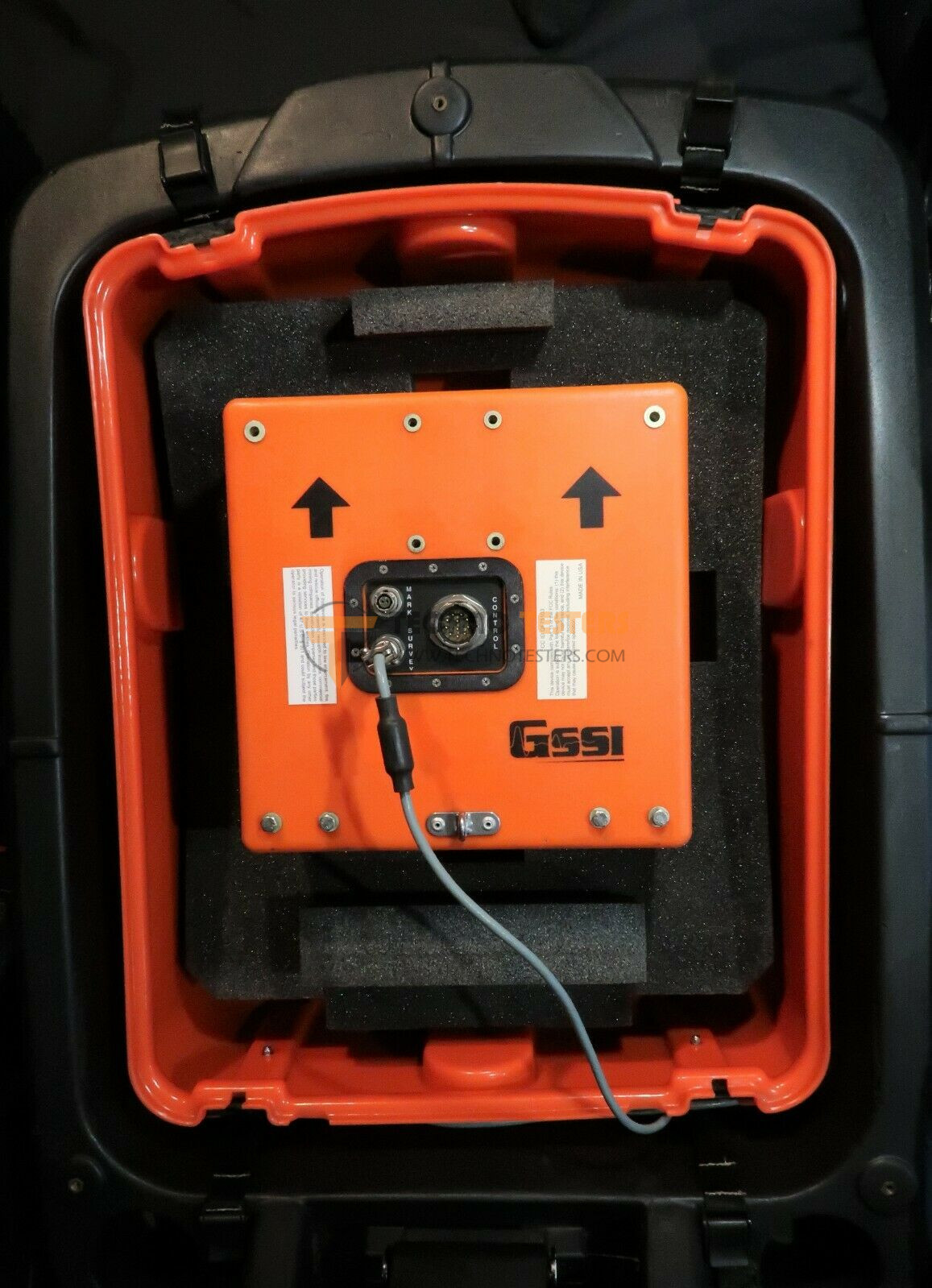

GSSI Model 50400S antenna has greatly improved resolution performance over previous GSSI mid-frequency antennas, such as the Model 3105 (300 MHz). The Model 50400S can be used in continuous, survey wheel or static stacking modes. Model 50400S is a 400 MHz “smart” antenna. This antenna has a special chip in it that will work with the SIR-30 and future control units (not the SIR-3000 or SIR-20). This chip will identify the antenna to the SIR-system control unit so that the controller will be able to automatically load up the correct default settings. The 50400S will function with a SIR-3000, SIR-20 or any of GSSI’s previous controllers, but the user will need to manually set the collection parameters on the SIR-system.

Antenna Preset Settings:
Range/Depth is approximately 2.5m (8 ft) assuming a dielectric constant of 9.
Setup Mode: Manual
System Run Mode: Survey Wheel (recommended) or Continuous
Range: 50 ns
Number of Gain Points: 5
Vertical Low Pass Filter: 800 MHz
Vertical High Pass Filter: 100 MHz
Samples per Scan: 512
Bits per Sample: 16
Scans per Second: Set to 120 (recommended)

Dimensions:
GSSI 643 Survey Cart dimensions: 29 x 50 x 50″ (width = outside to outside tires x length = front tire to cart handle x height = top of SIR bracket to floor)
GSSI 50400S Antenna dimensions: 11 3/4 x 11 3/4 x 7″ (width x length x height)
