GE Phasor XS 1664 PA Ultrasonic Flaw Detector
GE Phasor XS takes the proven benefits of phased array technology to a new, accessible level. This portable, rugged device combines the value of phased array with a standards-compliant traditional UT flaw detector. It’s easy to use, easy to learn, and specifically designed with practical, relevant features.

Overall, the Phasor XS provides:
Improved area coverage, faster results
More information from one scan of the part
Better recorded result from the generation of an image
One probe replicates the capabilities of many conventional UT probes and wedges
Time and cost savings from reduced hours evaluating indications with multiple angles

Standard Features
An on board data set memory is combined with removable storage via an SD card for documentation and setup storage. This ensures your operators will be working with consistent setups to get brilliant results that you can see later on the screen or computer

The unique Sector Freeze mode allows review and storage of all the A-Scans behind the image. Select your beam of interest from all of the shots for separate display and improve your sizing with focal and angle control.

Combined Phased Array and code compliant Conventional UT flaw detector
Truly portable Phased Array – less than 4 kg (7 lbs)
Electronically controlled and selectable beam angles, focus and size
Simultaneous inspection with multiple beams from a single location
Full color, real time sector display with a selectable ASCAN
Fullscreen Bscan plus Display reverse and flip
Rugged packaging to withstand heavy onsite use
Snap shot image storage of sector images and ASCANS
Dialog probes 16/64
Delay law calculator
Push button control for operation in a bag
Simple operating scheme
Image transfer via SD card

Included:

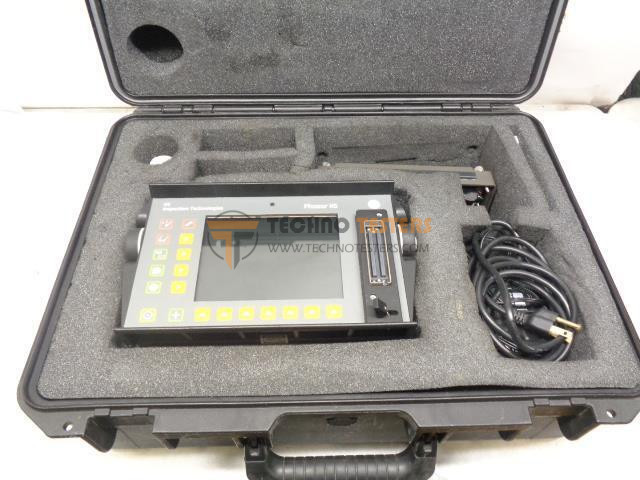

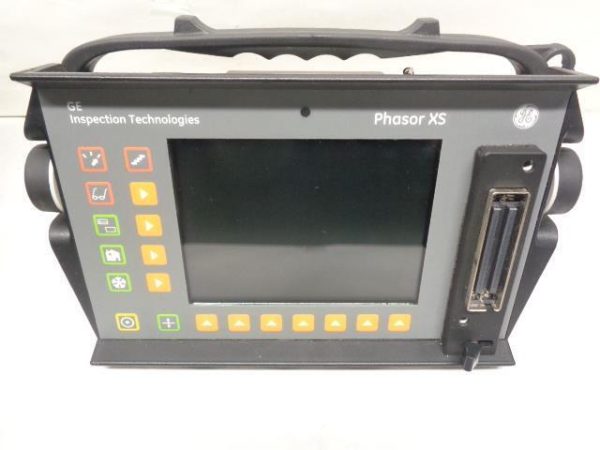

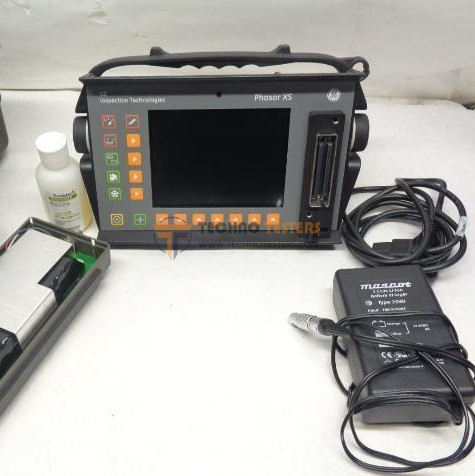

-Phasor XS 1664 PA Unit
-Hard Padded Transport Case
-Lithium Ion Battery Pack

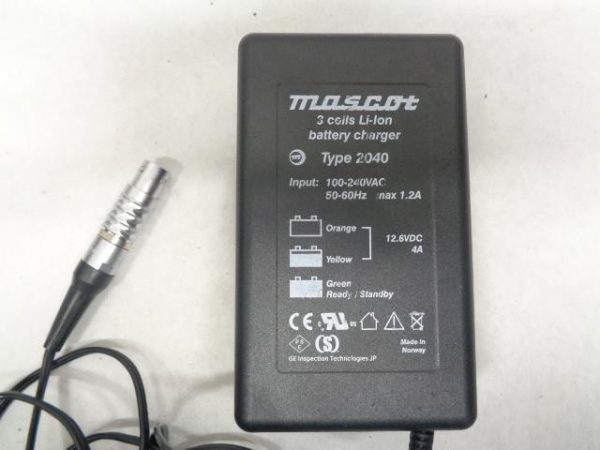

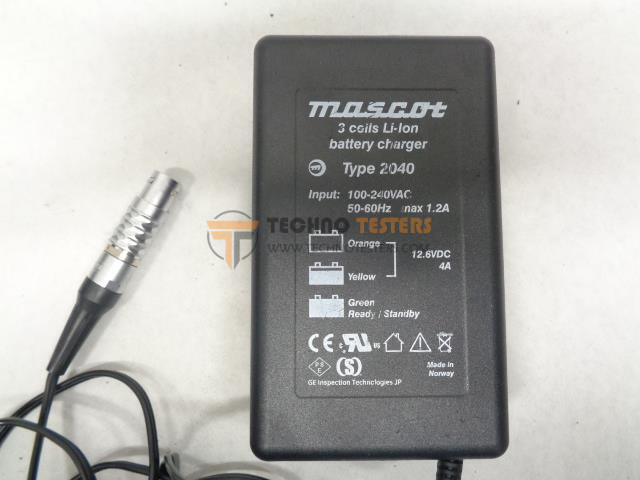

-Charger and AC Cable
