New Eaton Cutler Hammer MTK1000 PACB Trip Unit Test Kit

A user-friendly upgrade from the preceding Magnum Trip Unit Test Kit, the Eaton Cutler Hammer MTK1000 Magnum Trip Unit Test Kit offers enhancements in measurement accuracy, portability, durability, safety, and convenience of use.

Quality Design Features:

• Compact design, weighing less than 2 pounds.

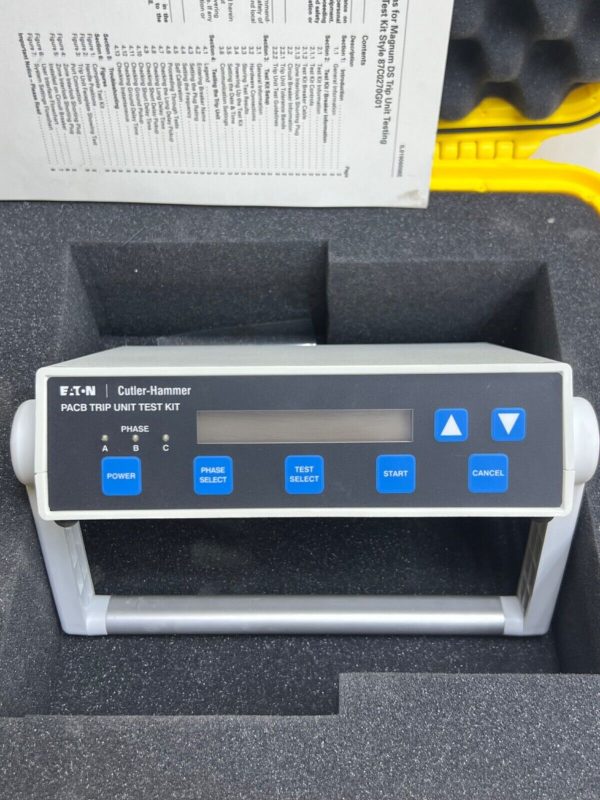

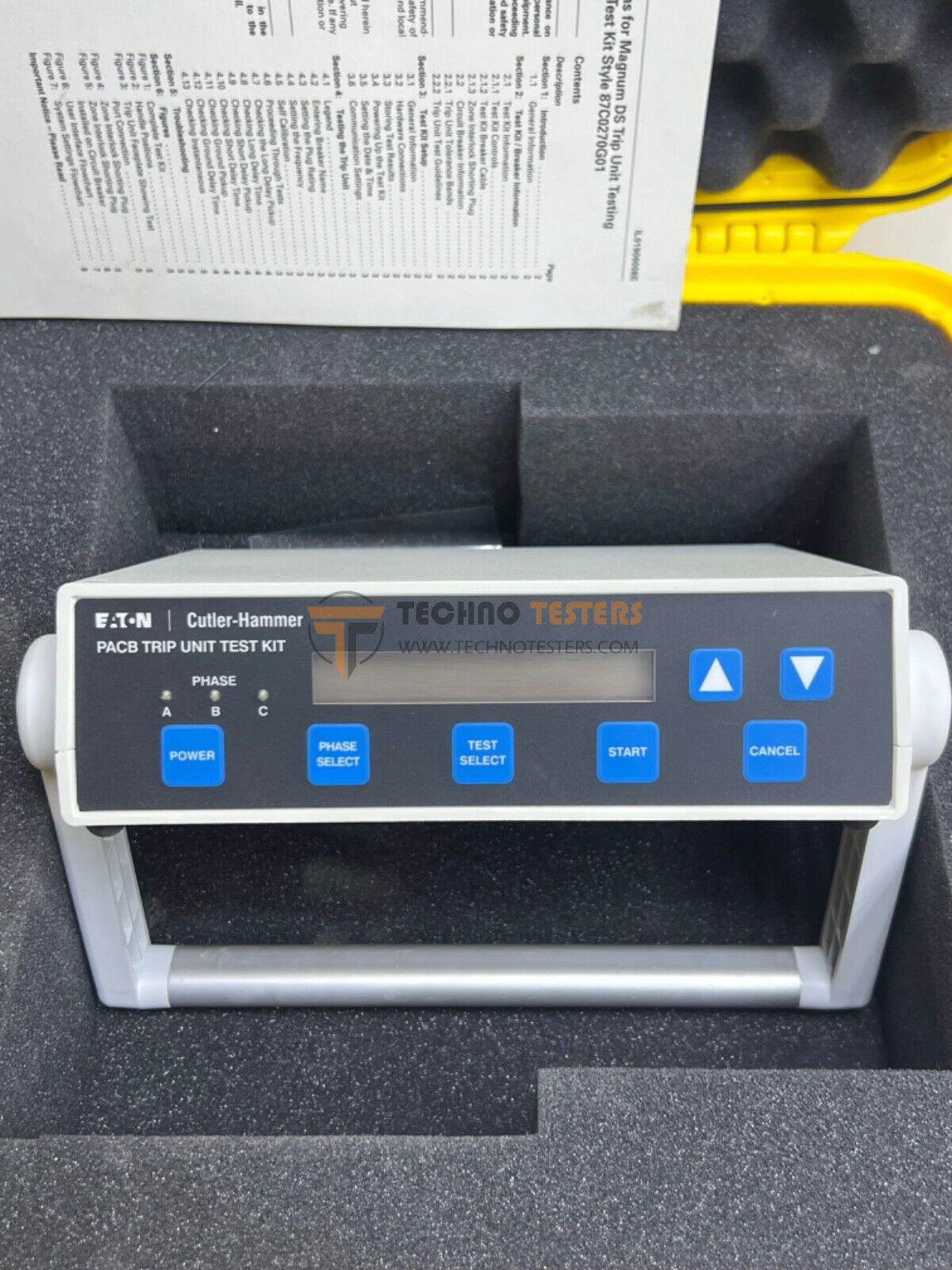

• A faceplate display with a push-button and a long-lasting polycarbonate protective layer.
• A digital LCD screen with two lines and an antiglare coating.

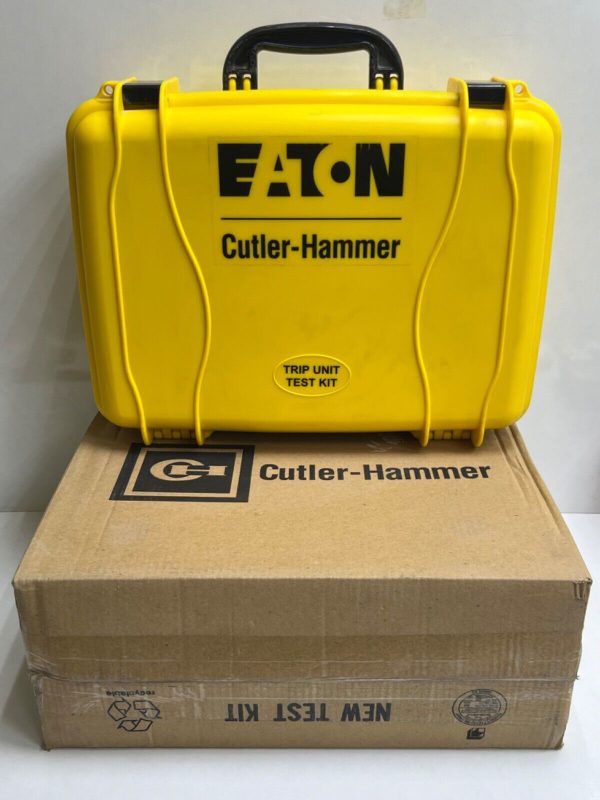

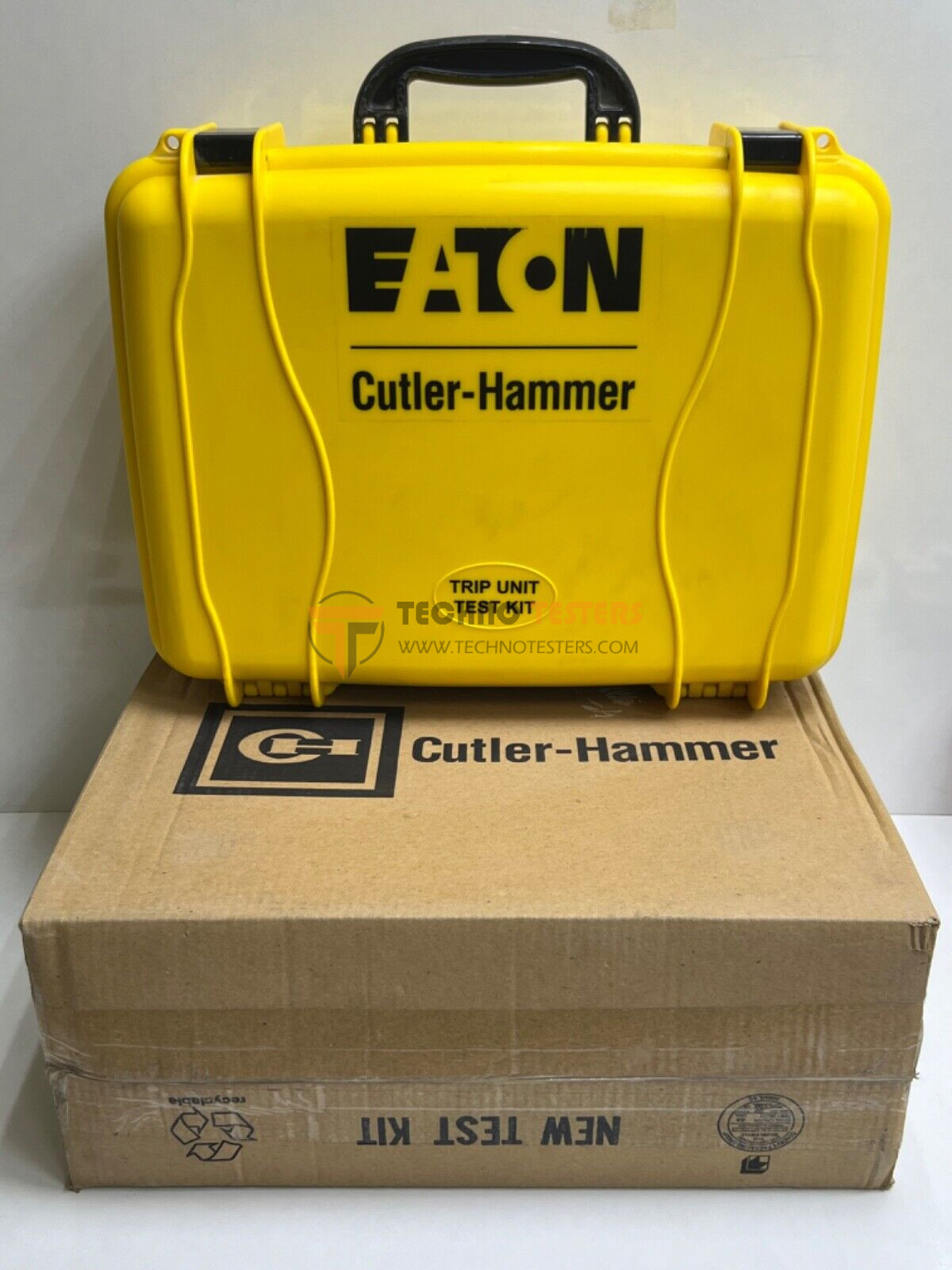

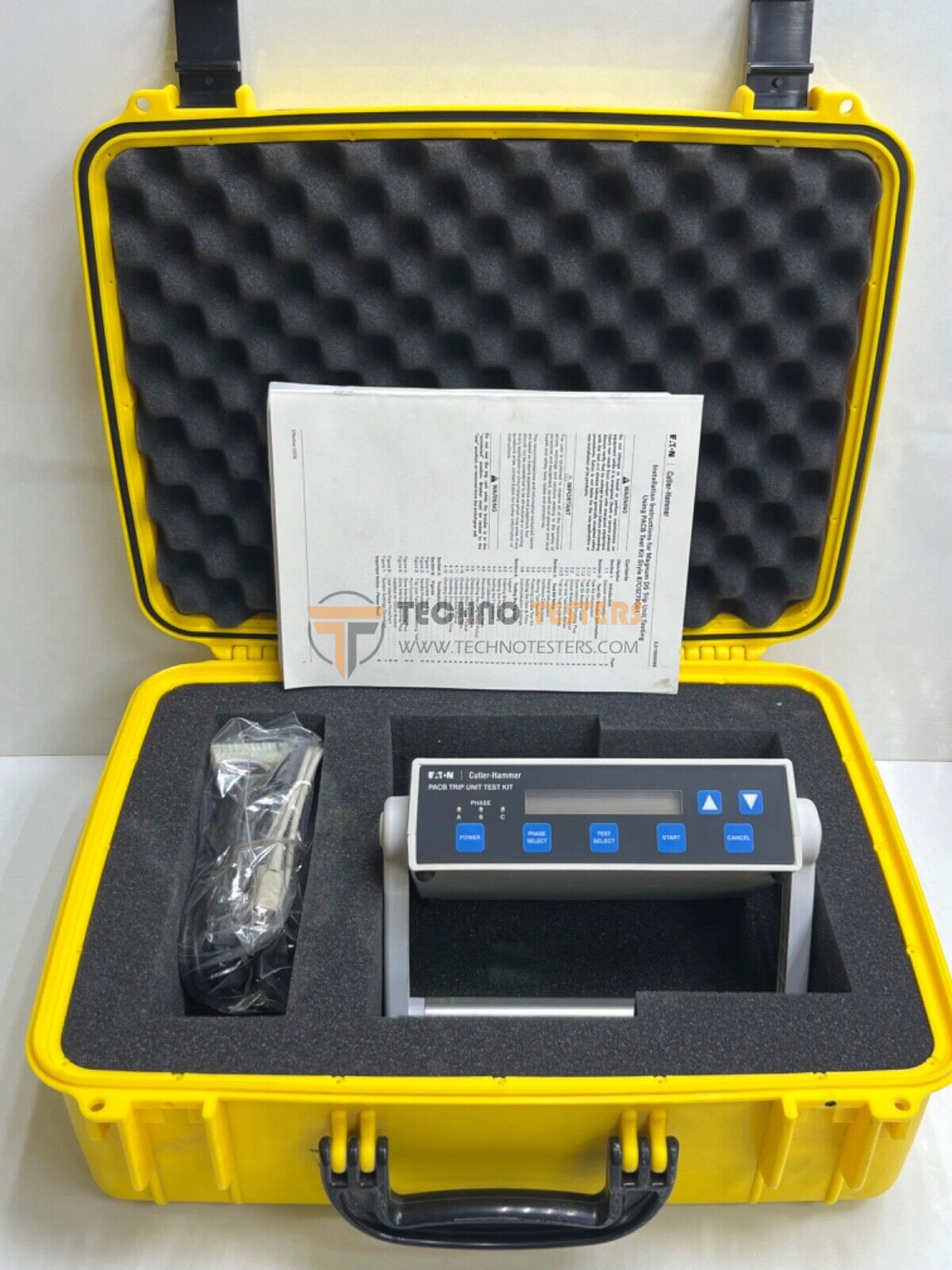

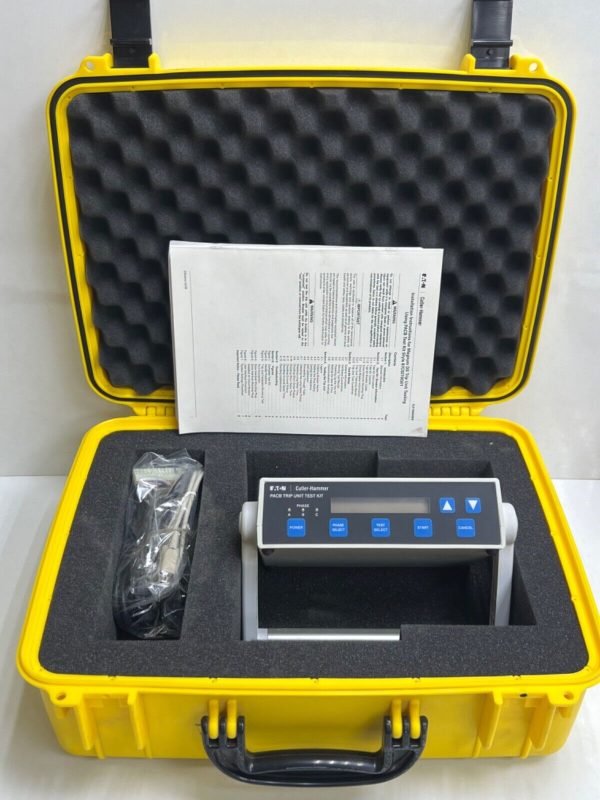

• A protective carrying case that is highly visible and has foam cutouts for every component of the test kit.
• A noticeable LED display to identify the phase.

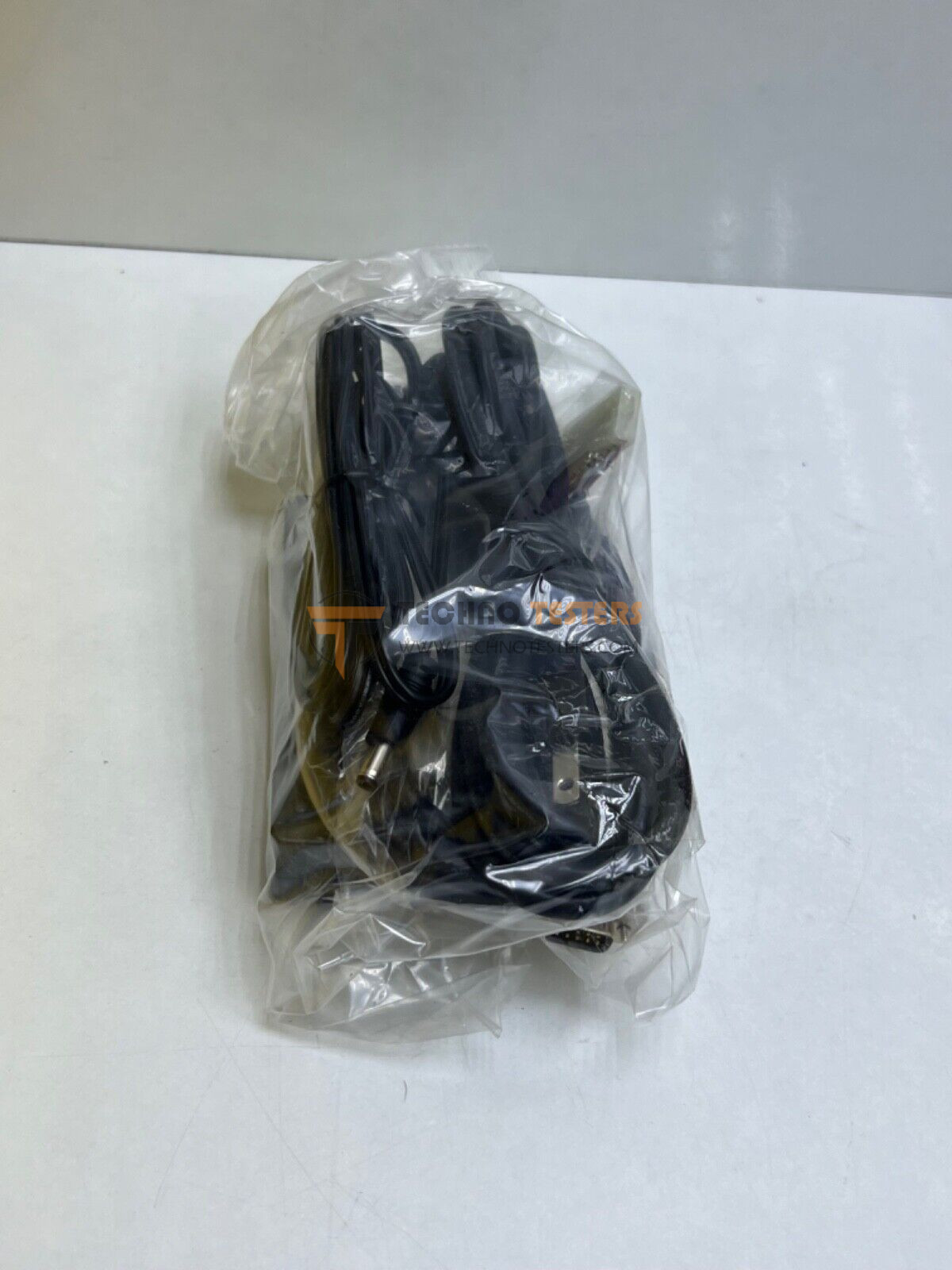

• Included are power and communication cables as well as a 120V AC adaptor.
• A safe place to save data on a secure digital (SD) card.
• An interlock override plug that is zone selective.
• A better circuit board design that uses fewer parts.
• Travel case locking features.

Ease of Operation:

• All operations can be managed with a push button.
• Easy-to-use testing methods that don’t require any prior technical expertise.
• A personal computer can download test summaries from several breakers.
• It doesn’t need any adapters and is completely compatible with the Magnum breaker.

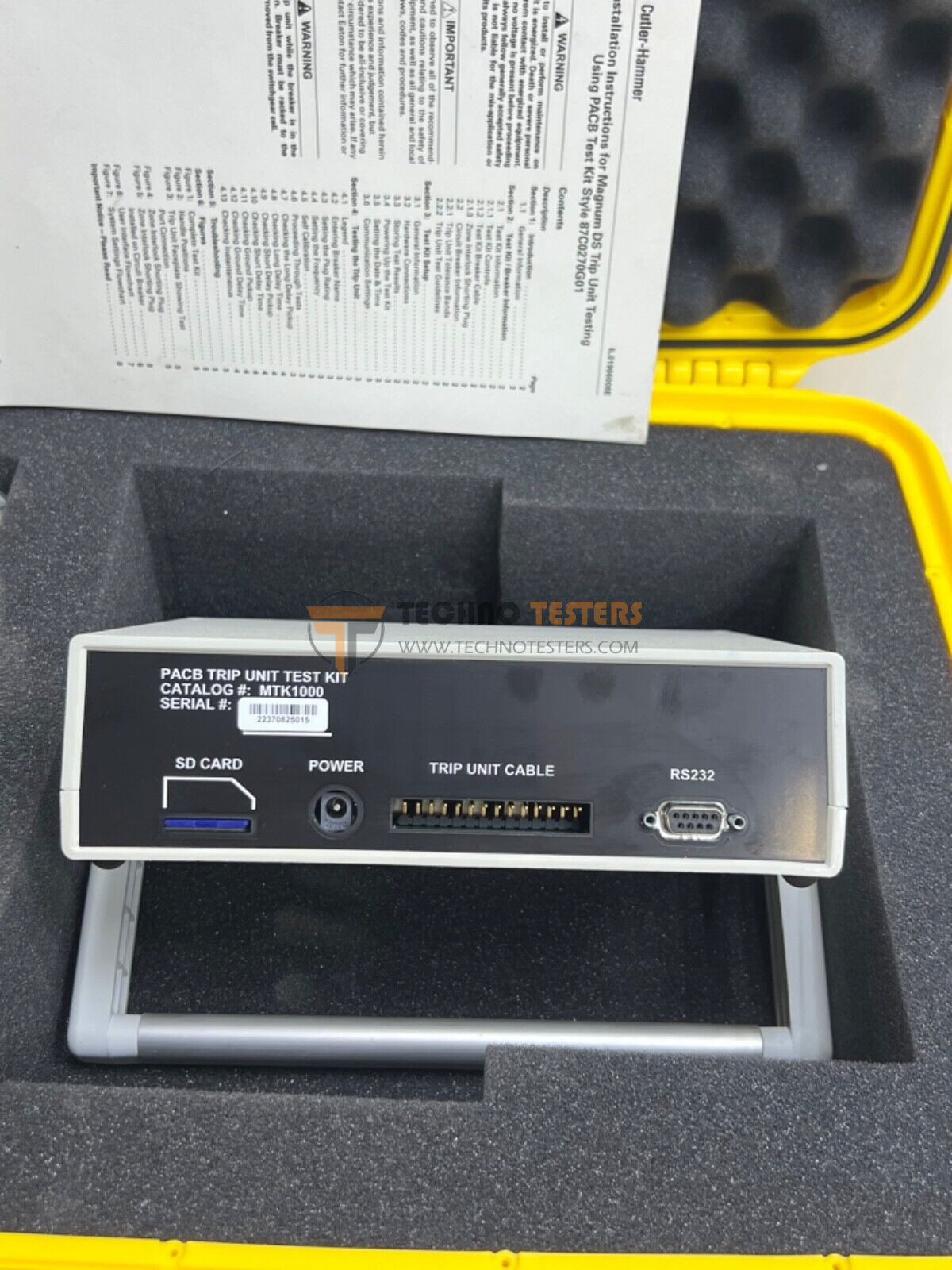

• A communications connector on the back of the device allows for software upgrades.

Convenience:

• Compact and lightweight.
• The kit includes a test unit, power supply, and all required communication cables.
• Sturdy circuit board design for dependability in a harsh setting.
• Secure field usage is provided by the case’s locking mechanisms.
• Power supply and communications cables are interchangeable.

Safety:

• Operator risk is essentially eliminated during normal use due to lower test current requirements.
• Direct attachments reduce the possibility of a connection failure.

Accuracy:

• Timing measurement that is as accurate as possible. 001 seconds.
• The measurement of amperage is accurate to.01A.
